Industrial enclosures

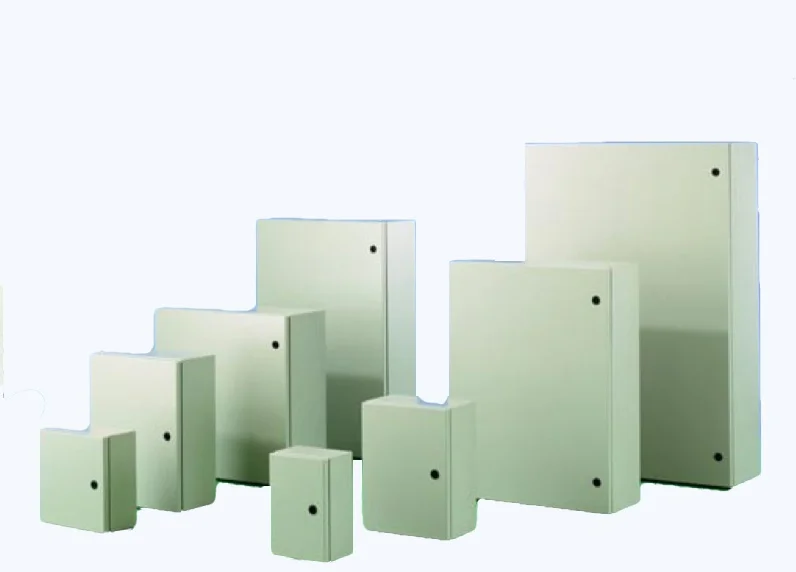

When you think of industrial enclosures, think Tecnomatic. We have a large selection of first in class solutions for your industrial needs.

Free-standing


Modular Cabinets with solid door (TSR)


Modular cabinets, complete with: reversible solid or pvc doors, rear screwed in wall, cabling internal plate, top and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP66 protection. NEMA TYPE 12. UL/CUL approved.

+ TSR CABINETS HIGH 1400 WIDE 600/800 W/ SOLID DOOR.

Standard supply :

  • Cabinet frame.
  • Front reversible solid door, (standard with right hinge)
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
Catalog L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/172 640 1410 800 600 1300 1220 700 505 450 1295 1 695 101
TSR/171 440 1410 600 600 1300 1220 500 505 450 1295 1 495 76
TSR/169 640 1410 800 500 1300 1220 700 405 350 1295 1 695 97
TSR/168 440 1410 600 500 1300 1220 500 405 350 1295 1 495 73
TSR/166 640 1410 800 400 1300 1220 700 305 250 1295 1 695 94
TSR/165 440 1410 600 400 1300 1220 500 305 250 1295 1 495 70

+ TSR CABINETS HIGH 1400/1600 WIDE 1200 W/ DOUBLE SOLID DOOR.

Standard supply :

  • Cabinet frame.
  • Front reversible solid door, (standard with right hinge)
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Doors locks F1 Weight (Kg) L2 H2 P2
TSR/20 606 606 250 540 472 228 550 1 2 550 25
TSR/188 1610 1200 600 1500 1100 505 1495 2 1095 152 440 1420 450
TSR/183 1610 1200 500 1500 1100 405 1495 2 1095 146 440 1420 350
TSR/178 1610 1200 400 1500 1100 305 1495 2 1095 140 440 1420 250
TSR173 1410 1200 600 1300 1100 505 1295 2 1095 140 440 1220 450
TSR/170 1410 1200 500 1300 1100 405 1295 2 1095 133 440 1220 350
TSR/167 1410 1200 400 1300 1100 305 1295 2 1095 127 440 1220 250

+ TSR CABINETS HIGH 1600 WIDE 400/600/800/1000 W/SOLID DOOR.

Standard supply :

  • Cabinet frame.
  • Front reversible solid door, (standard with right hinge)
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/187 840 1610 1000 600 1500 1420 900 505 450 1495 1 895 131
TSR/186 640 1610 800 600 1500 1420 700 505 450 1495 1 695 109
TSR/185 440 1610 600 600 1500 1420 500 505 450 1495 1 495 84
TSR/184 240 1610 400 600 1500 1420 300 505 450 1495 1 295 59
TSR/182 840 1610 1000 500 1500 1420 900 405 350 1495 1 895 125
TSR/181 640 1610 800 500 1500 1420 700 405 350 1495 1 695 106
TSR/180 440 1610 600 500 1500 1420 500 405 350 1495 1 495 81
TSR/179 240 1610 400 500 1500 1420 300 405 350 1495 1 295 56
TSR/177 840 1610 1000 400 1500 1420 900 305 250 1495 1 895 119
TSR/176 640 1610 800 400 1500 1420 700 305 250 1495 1 695 103
TSR/175 440 1610 600 400 1500 1420 500 305 250 1495 1 495 78
TSR/174 240 1610 400 400 1500 1420 300 305 250 1495 1 295 53

+ TSR CABINETS HIGH 1800 WITH SOLID DOOR.

Standard supply :

  • Cabinet frame.
  • Front reversible solid door, (standard with right hinge)
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/15 840 1810 1000 1000 1700 1620 900 905 850 1695 1 895 154
TSR/14 840 1810 1000 800 1700 1620 900 705 650 1695 1 895 148
TSR/13 840 1810 1000 600 1700 1620 900 505 450 1695 1 895 142
TSR/12 840 1810 1000 500 1700 1620 900 405 350 1695 1 895 136
TSR/11 840 1810 1000 400 1700 1620 900 305 250 1695 1 895 130
TSR/10 640 1810 800 1000 1700 1620 700 905 850 1695 1 695 130
TSR/9 640 1810 800 800 1700 1620 700 705 650 1695 1 695 124
TSR/8 640 1810 800 600 1700 1620 700 505 450 1695 1 695 118
TSR/7 640 1810 800 500 1700 1620 700 405 350 1695 1 695 115
TSRC/6 640 1810 800 400 1700 1620 700 305 250 1695 1 695 112
TSR/5 440 1810 600 1000 1700 1620 500 905 850 1695 1 495 104
TSR/4 440 1810 600 800 1700 1620 500 705 650 1695 1 495 98
TSR/3 440 1810 600 600 1700 1620 500 505 450 1695 1 495 92
TSR/2 440 1810 600 500 1700 1620 500 405 350 1695 1 495 89
TSR/1 440 1810 600 400 1700 1620 500 305 250 1695 1 495 86

+ TSR CABINETS HIGH 1800 WITH DOUBLE SOLID DOOR.

Standard supply :

  • Cabinet frame.
  • Double reversible solid door (standard with lock on right door)
  • Rear screwed in wall.
  • Removable top
  • Lower grommet removable plates for cable entry.
  • Internal mounting zinc plated steel plate.
  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/49 640 1810 1600 800 1700 1620 1500 705 650 1695 2 1495 223
TSR/48 640 1810 1600 600 1700 1620 1500 505 450 1695 2 1495 211
TSR/47 640 1810 1600 500 1700 1620 1500 405 350 1695 2 1495 205
TSR/46 640 1810 1600 400 1700 1620 1500 305 250 1695 2 1495 199
TSR/44 540 1810 1400 800 1700 1620 1300 705 650 1695 2 1295 206
TSR/43 540 1810 1400 600 1700 1620 1300 505 450 1695 2 1295 194
TSR/42 540 1810 1400 500 1700 1620 1300 405 350 1695 2 1295 182
TSR/41 540 1810 1400 400 1700 1620 1300 305 250 1695 2 1295 176
TSR/20 440 1810 1200 1000 1700 1620 1100 905 850 1695 2 1095 189
TSR/19 440 1810 1200 800 1700 1620 1100 705 650 1695 2 1095 177
TSR/18 440 1810 1200 600 1700 1620 1100 505 450 1695 2 1095 165
TSR/17 440 1810 1200 500 1700 1620 1100 405 350 1695 2 1095 159
TSR/16 440 1810 1200 400 1700 1620 1100 305 250 1695 2 1095 153

+ TSR CABINETS HIGH 2000 WITH SOLID DOOR

Standard supply :

  • Cabinet frame.
  • Front reversible solid door, (standard with right hinge)
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/35 840 2010 1000 1000 1900 1820 900 905 850 1895 1 895 177
TSR/34 840 2010 1000 800 1900 1820 900 705 650 1895 1 895 165
TSR/33 840 2010 1000 600 1900 1820 900 505 450 1895 1 895 153
TSR/32 840 2010 1000 500 1900 1820 900 405 350 1895 1 895 147
TSR/31 840 2010 1000 400 1900 1820 900 305 250 1895 1 895 141
TSR/30 640 2010 800 1000 1900 1820 700 905 850 1895 1 695 139
TSR/29 640 2010 800 800 1900 1820 700 705 650 1895 1 695 133
TSR/28 640 2010 800 600 1900 1820 700 505 450 1895 1 695 127
TSR/27 640 2010 800 500 1900 1820 700 405 350 1895 1 695 124
TSR/26 640 2010 800 400 1900 1820 700 305 250 1895 1 695 121
TSR/25 440 2010 600 1000 1900 1820 500 905 850 1895 1 495 112
TSR/24 440 2010 600 800 1900 1820 500 705 650 1895 1 495 106
TSR/23 440 2010 600 600 1900 1820 500 505 450 1895 1 495 100
TSR/22 440 2010 600 500 1900 1820 500 405 350 1895 1 495 97
TSR/21 440 2010 600 400 1900 1820 500 305 250 1895 1 495 94

+ TSR CABINETS HIGH 2000 WITH DOUBLE SOLID DOOR.

Standard supply :

  • Cabinet frame.
  • Double Front reversible solid door, (standard with lock on right door)
  • Rear screwed in wall.
  • Removable top
  • Lower grommet removable plates for cable entry.
  • Internal mounting zinc plated steel plate.
  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
Catalog L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/172 640 1410 800 600 1300 1220 700 505 450 1295 1 695 101
TSR/171 440 1410 600 600 1300 1220 500 505 450 1295 1 495 76
TSR/169 640 1410 800 500 1300 1220 700 405 350 1295 1 695 97
TSR/168 440 1410 600 500 1300 1220 500 405 350 1295 1 495 73
TSR/166 640 1410 800 400 1300 1220 700 305 250 1295 1 695 94
TSR/165 440 1410 600 400 1300 1220 500 305 250 1295 1 495 70

+ TSR CABINETS HIGH 2200 WITH SOLID DOOR.

Standard supply :

  • Cabinet frame.
  • Front reversible solid door, (standard with right hinge)
  • Rear screwed in wall.
  • Removable top
  • Lower grommet removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/75 840 2210 1000 1000 2100 2020 900 905 850 2095 1 895 190
TSR/74 840 2210 1000 800 2100 2020 900 705 650 2095 1 895 178
TSR/73 840 2210 1000 600 2100 2020 900 505 450 2095 1 895 166
TSR/72 840 2210 1000 500 2100 2020 900 405 350 2095 1 895 160
TSR/71 840 2210 1000 400 2100 2020 900 305 250 2095 1 895 153
TSR/70 640 2210 800 1000 2100 2020 700 905 850 2095 1 695 149
TSR/69 640 2210 800 800 2100 2020 700 705 650 2095 1 695 143
TSR/68 640 2210 800 600 2100 2020 700 505 450 2095 1 695 137
TSR/67 640 2210 800 500 2100 2020 700 405 350 2095 1 695 134
TSR/66 640 2210 800 400 2100 2020 700 305 250 2095 1 695 131
TSR/65 440 2210 600 1000 2100 2020 500 905 850 2095 1 495 120
TSR/64 440 2210 600 800 2100 2020 500 705 650 2095 1 495 114
TSR/63 440 2210 600 600 2100 2020 500 505 450 2095 1 495 108
TSR/62 440 2210 600 500 2100 2020 500 405 350 2095 1 495 105
TSR/61 440 2210 600 400 2100 2020 500 305 250 2095 1 495 102

+ TSR CABINETS HIGH 2200 WITH DOUBLE SOLID DOOR.

alt text <! data-preserve-html-node="true"--div class="dlbutton"> Download Technical Drawing

Standard supply :

  • Cabinet frame.
  • Double Front reversible solid door, (standard with right hinge)
  • Rear screwed in wall.
  • Removable top
  • Lower grommet removable plates for cable entry.
  • Internal mounting zinc plated steel plate.
  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/89 640 2210 1600 800 2100 2020 1500 705 650 2095 2 1495 257
TSR/88 640 2210 1600 600 2100 2020 1500 505 450 2095 2 1495 245
TSR/87 640 2210 1600 500 2100 2020 1500 405 350 2095 2 1495 239
TSR/84 540 2210 1400 800 2100 2020 1300 705 650 2095 2 1295 224
TSR/83 540 2210 1400 600 2100 2020 1300 505 450 2095 2 1295 212
TSR/82 540 2210 1400 500 2100 2020 1300 405 350 2095 2 1295 206
TSR/80 440 2210 1200 1000 2100 2020 1100 905 850 2095 2 1095 215
TSR/79 440 2210 1200 800 2100 2020 1100 705 650 2095 2 1095 203
TSR/78 440 2210 1200 600 2100 2020 1100 505 450 2095 2 1095 191
TSR/77 440 2210 1200 500 2100 2020 1100 405 350 2095 2 1095 185
TSR/76 440 2210 1200 400 2100 2020 1100 305 250 2095 2 1095 179

Modular Cabinets with PVC door (TSR/P)


Modular cabinets, complete with: reversible solid or pvc doors, rear screwed in wall, cabling internal plate, top and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP66 protection. NEMA TYPE 12. UL/CUL approved.

+ Cabinets 1800mm HIGH w/PVC Door

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 9P 640 1810 800 800 1700 1620 1515 700 580 705 650 633 1695 1 695 118
TSR/ 8P 640 1810 800 600 1700 1620 1515 700 580 505 450 433 1695 1 695 112
TSR/ 7P 640 1810 800 500 1700 1620 1515 700 580 405 350 333 1695 1 695 109
TSR/ 6P 640 1810 800 400 1700 1620 1515 700 580 305 250 233 1695 1 695 106
TSR/ 5P 440 1810 600 1000 1700 1620 1515 500 380 905 850 833 1695 1 495 99
TSR/ 4P 440 1810 600 800 1700 1620 1515 500 380 705 650 633 1695 1 495 93
TSR/ 3P 440 1810 600 600 1700 1620 1515 500 380 505 450 433 1695 1 495 87
TSR/ 2P 440 1810 600 500 1700 1620 1515 500 380 405 350 333 1695 1 495 84
TSR/ 1P 440 1810 600 400 1700 1620 1515 500 380 305 250 233 1695 1 495 81
TSR/ 15P 840 1810 1000 1000 1700 1620 1515 900 780 905 850 833 1695 1 895 158
TSR/ 14P 840 1810 1000 800 1700 1620 1515 900 780 705 650 633 1695 1 895 146
TSR/ 13P 840 1810 1000 600 1700 1620 1515 900 780 505 450 433 1695 1 895 134
TSR/ 12P 840 1810 1000 500 1700 1620 1515 900 780 405 350 333 1695 1 895 128
TSR/ 11P 840 1810 1000 400 1700 1620 1515 900 780 305 250 233 1695 1 895 122
TSR/10P 640 1810 800 1000 1700 1620 1515 700 580 905 850 833 1695 1 695 124

+ Cabinets 1800mm HIGH w/DOUBLE PVC Door

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 49P 640 1810 1600 800 1700 1620 1515 1500 580 705 650 633 1695 2 1495 210
TSR/ 48P 640 1810 1600 600 1700 1620 1515 1500 580 505 450 433 1695 2 1495 198
TSR/ 47P 640 1810 1600 500 1700 1620 1515 1500 580 405 350 333 1695 2 1495 192
TSR/ 46P 640 1810 1600 400 1700 1620 1515 1500 580 305 250 233 1695 2 1495 186
TSR/ 44P 540 1810 1400 800 1700 1620 1515 1300 480 705 650 633 1695 2 1295 195
TSR/ 43P 540 1810 1400 600 1700 1620 1515 1300 480 505 450 433 1695 2 1295 183
TSR/ 42P 540 1810 1400 500 1700 1620 1515 1300 480 405 350 333 1695 2 1295 171
TSR/ 41P 540 1810 1400 400 1700 1620 1515 1300 480 305 250 233 1695 2 1295 165
TSR/ 20P 440 1810 1200 1000 1700 1620 1515 1100 380 905 850 833 1695 2 1095 179
TSR/ 19P 440 1810 1200 800 1700 1620 1515 1100 380 705 650 633 1695 2 1095 167
TSR/ 18P 440 1810 1200 600 1700 1620 1515 1100 380 505 450 433 1695 2 1095 155
TSR/ 17P 440 1810 1200 500 1700 1620 1515 1100 380 405 350 333 1695 2 1095 149
TSR/ 16P 440 1810 1200 400 1700 1620 1515 1100 380 305 250 233 1695 2 1095 143

+ Cabinets 2000mm HIGH w/PVC Door

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Internal mounting zinc plated steel plate

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 35P 840 2010 1000 1000 1900 1820 1715 900 780 905 850 833 1895 1 895 168
TSR/ 34P 840 2010 1000 800 1900 1820 1715 900 780 705 650 633 1895 1 895 156
TSR/ 33P 840 2010 1000 600 1900 1820 1715 900 780 505 450 433 1895 1 895 144
TSR/ 32P 840 2010 1000 500 1900 1820 1715 900 780 405 350 333 1895 1 895 138
TSR/ 31P 840 2010 1000 400 1900 1820 1715 900 780 305 250 233 1895 1 895 132
TSR/ 30P 640 2010 800 1000 1900 1820 1715 700 580 905 850 833 1895 1 695 132
TSR/ 29P 640 2010 800 800 1900 1820 1715 700 580 705 650 633 1895 1 695 126
TSR/ 28P 640 2010 800 600 1900 1820 1715 700 580 505 450 433 1895 1 695 120
TSR/ 27P 640 2010 800 500 1900 1820 1715 700 580 405 350 333 1895 1 695 117
TSR/ 26P 640 2010 800 400 1900 1820 1715 700 580 305 250 233 1895 1 695 114
TSR/ 25P 440 2010 600 1000 1900 1820 1715 500 380 905 850 833 1895 1 495 106
TSR/ 24P 440 2010 600 800 1900 1820 1715 500 380 705 650 633 1895 1 495 100
TSR/ 23P 440 2010 600 600 1900 1820 1715 500 380 505 450 433 1895 1 495 94
TSR/ 22P 440 2010 600 500 1900 1820 1715 500 380 405 350 333 1895 1 495 91
TSR/ 21P 440 2010 600 400 1900 1820 1715 500 380 305 250 233 1895 1 495 88

+ Cabinets 2000mm HIGH w/DOUBLE PVC Door

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Internal mounting zinc plated steel plate

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 59P 640 2010 1600 800 1900 1820 1715 1500 580 705 650 633 1895 2 1495 226
TSR/ 58P 640 2010 1600 600 1900 1820 1715 1500 580 505 450 433 1895 2 1495 214
TSR/ 57P 640 2010 1600 500 1900 1820 1715 1500 580 405 350 333 1895 2 1495 208
TSR/ 56P 640 2010 1600 400 1900 1820 1715 1500 580 305 250 233 1895 2 1495 202
TSR/ 54P 540 2010 1400 800 1900 1820 1715 1300 480 705 650 633 1895 2 1295 202
TSR/ 53P 540 2010 1400 600 1900 1820 1715 1300 480 505 450 433 1895 2 1295 190
TSR/ 52P 540 2010 1400 500 1900 1820 1715 1300 480 405 350 333 1895 2 1295 184
TSR/ 51P 540 2010 1400 400 1900 1820 1715 1300 480 305 250 233 1895 2 1295 178
TSR/ 40P 440 2010 1200 1000 1900 1820 1715 1100 380 905 850 833 1895 2 1095 190
TSR/ 39P 440 2010 1200 800 1900 1820 1715 1100 380 705 650 633 1895 2 1095 179
TSR/ 38P 440 2010 1200 600 1900 1820 1715 1100 380 505 450 433 1895 2 1095 167
TSR/ 37P 440 2010 1200 500 1900 1820 1715 1100 380 405 350 333 1895 2 1095 161
TSR/ 36P 440 2010 1200 400 1900 1820 1715 1100 380 305 250 233 1895 2 1095 155

+ Cabinets 2200mm HIGH w/PVC Door

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Internal mounting zinc plated steel plate

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 75P 840 2210 1000 1000 2100 2020 1915 900 780 905 850 833 2095 1 895 181
TSR/ 74P 840 2210 1000 800 2100 2020 1915 900 780 705 650 633 2095 1 895 169
TSR/ 73P 840 2210 1000 600 2100 2020 1915 900 780 505 450 433 2095 1 895 157
TSR/ 72P 840 2210 1000 500 2100 2020 1915 900 780 405 350 333 2095 1 895 156
TSR/ 71P 840 2210 1000 400 2100 2020 1915 900 780 305 250 233 2095 1 895 144
TSR/ 70P 640 2210 800 1000 2100 2020 1915 700 580 905 850 833 2095 1 695 141
TSR/ 69P 640 2210 800 800 2100 2020 1915 700 580 705 650 633 2095 1 695 135
TSR/ 68P 640 2210 800 600 2100 2020 1915 700 580 505 450 433 2095 1 695 129
TSR/ 67P 640 2210 800 500 2100 2020 1915 700 580 405 350 333 2095 1 695 126
TSR/ 66P 640 2210 800 400 2100 2020 1915 700 580 305 250 233 2095 1 695 123
TSR/ 65P 440 2210 600 1000 2100 2020 1915 500 380 905 850 833 2095 1 495 114
TSR/ 64P 440 2210 600 800 2100 2020 1915 500 380 705 650 633 2095 1 495 108
TSR/ 63P 440 2210 600 600 2100 2020 1915 500 380 505 450 433 2095 1 495 102
TSR/ 62P 440 2210 600 500 2100 2020 1915 500 380 405 350 333 2095 1 495 99
TSR/ 61P 440 2210 600 400 2100 2020 1915 500 380 305 250 233 2095 1 495 96

+ Cabinets 2200mm HIGH w/DOUBLE PVC Door

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Internal mounting zinc plated steel plate

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 89P 640 2210 1600 800 2100 2020 1915 1500 580 705 650 633 2095 2 1495 257
TSR/ 88P 640 2210 1600 600 2100 2020 1915 1500 580 505 450 433 2095 2 1495 245
TSR/ 87P 640 2210 1600 500 2100 2020 1915 1500 580 405 350 333 2095 2 1495 239
TSR/ 84P 540 2210 1400 800 2100 2020 1915 1300 480 705 650 633 2095 2 1295 224
TSR/ 83P 540 2210 1400 600 2100 2020 1915 1300 480 505 450 433 2095 2 1295 212
TSR/ 82P 540 2210 1400 500 2100 2020 1915 1300 480 405 350 333 2095 2 1295 206
TSR/ 80P 440 2210 1200 1000 2100 2020 1915 1100 380 905 850 833 2095 2 1095 215
TSR/ 79P 440 2210 1200 800 2100 2020 1915 1100 380 705 650 633 2095 2 1095 203
TSR/ 78P 440 2210 1200 600 2100 2020 1915 1100 380 505 450 433 2095 2 1095 191
TSR/ 77P 440 2210 1200 500 2100 2020 1915 1100 380 405 350 333 2095 2 1095 185
TSR/ 76P 440 2210 1200 400 2100 2020 1915 1100 380 305 250 233 2095 2 1095 179

+ Cabinets 1800 HIGH , 600/800/1200 WIDE w/1 or 2 PVC Doors

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Internal mounting zinc plated steel plate

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 173P 440 1410 1200 600 1300 1220 1125 1100 380 505 450 433 1295 2 1095 136
TSR/ 172P 640 1410 800 600 1300 1220 1125 700 580 505 450 433 1295 1 695 98
TSR/ 171P 440 1410 600 600 1300 1220 1125 500 380 505 450 433 1295 1 495 73
TSR/ 170P 440 1410 1200 500 1300 1220 1125 1100 380 405 350 333 1295 2 1095 129
TSR/ 169P 640 1410 800 500 1300 1220 1125 700 580 405 350 333 1295 1 695 94
TSR/ 168P 440 1410 600 500 1300 1220 1125 500 380 405 350 333 1295 1 495 70
TSR/ 167P 440 1410 1200 400 1300 1220 1125 1100 380 305 250 233 1295 2 1095 122
TSR/ 166P 640 1410 800 400 1300 1220 1125 700 580 305 250 233 1295 1 695 94
TSR/ 165P 440 1410 600 400 1300 1220 1125 500 380 305 250 233 1295 1 495 67

+ Cabinets 1600 HIGH, 600/800/1000/1200 WIDE w/1 or 2 PVC Doors

Standard supply :

  • Cabinet frame
  • Front reversible transparent door (standard with lock on right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Internal mounting zinc plated steel plate

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 188P 440 1610 1200 600 1500 1420 1315 1100 380 505 450 433 1495 2 1095 147
TSR/ 187P 840 1610 1000 600 1500 1420 1315 900 780 505 450 433 1495 1 895 127
TSR/ 186P 640 1610 800 600 1500 1420 1315 700 580 505 450 433 1495 1 695 106
TSR/ 185P 440 1610 600 600 1500 1420 1315 500 380 505 450 433 1495 1 495 81
TSR/ 183P 440 1610 1200 500 1500 1420 1315 1100 380 405 350 333 1495 2 1095 141
TSR/ 182P 840 1610 1000 500 1500 1420 1315 900 780 405 350 333 1495 1 895 124
TSR/ 181P 640 1610 800 500 1500 1420 1315 700 580 405 350 333 1495 1 695 102
TSR/ 180P 440 1610 600 500 1500 1420 1315 500 380 405 350 333 1495 1 495 78
TSR/ 178P 440 1610 1200 400 1500 1420 1315 1100 380 305 250 233 1495 2 1095 135
TSR/ 177P 840 1610 1000 400 1500 1420 1315 900 780 305 250 233 1495 1 895 115
TSR/ 176P 640 1610 800 400 1500 1420 1315 700 580 305 250 233 1495 1 695 100
TSR/ 175P 440 1610 600 400 1500 1420 1315 500 380 305 250 233 1495 1 495 75

Monobloc Cabinets with solid door (TFR)


Cabinets with closed sides, complete with: reversible solid or pvc doors, rear screwed in wall, cabling internal plate, top and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP66 protection.NEMA TYPE 12. UL/CUL approved.

+ Cabinets W.1200/1600 H1800/2000 with double solid door

Standard supply :

  • Cabinet frame with closed sides
  • Double reversible solid door, (standard with hinge on the right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Adjustable internal mounting plate

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 G1 Doors F1 Weight (Kg)
TFR/41 640 2000 1600 500 1900 1820 1500 405 1895 2 1495 215
TFR/40 440 2000 1200 500 1900 1820 1100 425 1895 2 1095 172
TFR/33 640 1800 1600 500 1700 1620 1500 405 1695 2 1495 205
TFR/32 440 1800 1200 500 1700 1620 1100 425 1695 2 1095 161

+ Cabinets W. 600/800/1000H1400/1600/1800 with solid door.

Standard supply :

  • Cabinet frame with closed sides
  • Double reversible solid door, (standard with hinge on the right door)
  • Rear screwed in panel
  • Lower grommet removable plates for cable entry
  • Adjustable internal mounting plate

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 G1 Doors F1 Weight (Kg)
TFR/31 840 1800 1000 500 1700 1620 900 425 1695 1 895 140
TFR/30 840 1800 1000 400 1700 1620 900 325 1695 1 895 135
TFR/29 640 1800 800 500 1700 1620 700 425 1695 1 695 119
TFR/28 640 1800 800 400 1700 1620 700 325 1695 1 695 113
TFR/27 440 1800 600 500 1700 1620 500 425 1695 1 495 96
TFR26 440 1800 600 400 1700 1620 500 325 1695 1 495 90
TFR/25 840 1600 1000 400 1500 1420 900 325 1495 1 895 113
TFR/24 640 1600 800 400 1500 1420 700 325 1495 1 695 95
TFR23 440 1600 600 400 1500 1420 500 325 1495 1 495 75
TFR/22 640 1400 800 400 1300 1220 700 325 1295 1 695 87
TFR/21 440 1400 600 400 1300 1220 500 325 1295 1 495 68

+ Cabinets W. 600/800/1000H2000 with solid door

Standard supply :

  • Cabinet frame with closed sides
  • Double reversible solid door, (standard with hinge on the right)
  • Rear screwed in panel
  • Lower grommet removable plates for cable entry
  • Adjustable internal mounting plate

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 G1 Doors F1 Weight (Kg)
TFR/39 840 2000 1000 500 1900 1820 900 425 1895 1 895 151
TFR38 840 2000 1000 400 1900 1820 900 325 1895 1 895 146
TFR/37 640 2000 800 500 1900 1820 700 425 1895 1 695 130
TFR/36 640 2000 800 400 1900 1820 700 325 1895 1 695 123
TFR/35 440 2000 600 500 1900 1820 500 425 1895 1 495 107
TFR/34 440 2000 600 400 1900 1820 500 325 1895 1 495 100

Monobloc Cabinets with clear door (TFR/P)


Cabinets with closed sides, complete with: reversible solid or pvc doors, rear screwed in wall, cabling internal plate, top and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP66 protection.NEMA TYPE 12. UL/CUL approved.

+ W600/800/1000/1200/1600 H2000 One/Two transparent door/s cabinets

Standard supply :

  • Cabinet frame with closed sides
  • Front reversible transparent door, (standard with hinge on the right) or double front reversible transparent door, (standard with hinge on the right door)
  • Rear screwed in panel
  • Removable top
  • Lower grommet removable plates for cable entry
  • Adjustable internal mounting plate

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 G1 Doors F1 Weight (Kg)
TFR/ 34P 440 2000 600 400 1900 1820 1715 500 380 325 253 1895 1 495 94
TFR/ 35P 440 2000 600 500 1900 1820 1715 500 380 425 353 1895 1 495 101
TFR/ 36P 640 2000 800 400 1900 1820 1715 700 580 325 253 1895 1 695 115
TFR/ 37P 640 2000 800 500 1900 1820 1715 700 580 425 353 1895 1 695 122
TFR/ 38P 840 2000 1000 400 1900 1820 1715 900 780 325 253 1895 1 895 136
TFR/ 39P 840 2000 1000 500 1900 1820 1715 900 780 425 353 1895 1 895 141
TFR/ 40P 440 2000 1200 500 1900 1820 1715 1100 380 425 353 1895 2 1095 161
TFR/ 41P 640 2000 1600 500 1900 1820 1715 1500 580 405 333 1895 2 1495 201

+ W600/800/1000/1200/1600 H1400/1600/1800 One/Two transparent door/s cabinets.

Standard supply :

  • Cabinet frame with closed sides
  • Front reversible transparent door, (standard with hinge on the right) or double front reversible transparent door, (standard with hinge on the right door)
  • Rear screwed in panel
  • Lower grommet removable plates for cable entry
  • Adjustable internal mounting plate

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 G1 Doors F1 Weight (Kg)
TFR/ 21P 440 1400 600 400 1300 1220 1115 500 380 325 253 1295 1 495 64
TFR/ 22P 640 1400 800 400 1300 1220 1115 700 580 325 253 1295 1 695 82
TFR/ 23P 440 1600 600 400 1500 1420 1315 500 380 325 253 1495 1 495 70
TFR/ 24P 640 1600 800 400 1500 1420 1315 700 580 325 253 1495 1 695 89
TFR/ 25P 840 1600 1000 400 1500 1420 1315 900 780 325 253 1495 1 895 106
TFR/ 26P 440 1800 600 400 1700 1620 1515 500 380 325 253 1695 1 495 85
TFR/ 27P 440 1800 600 500 1700 1620 1515 500 380 425 353 1695 1 495 91
TFR/ 28P 640 1800 800 400 1700 1620 1515 700 580 325 253 1695 1 695 107
TFR/ 29P 640 1800 800 500 1700 1620 1515 700 580 425 353 1695 1 695 113
TFR/ 30P 840 1800 1000 400 1700 1620 1515 900 780 325 253 1695 1 895 126
TFR/ 31P 840 1800 1000 500 1700 1620 1515 900 780 425 353 1695 1 895 132
TFR/ 32P 440 1800 1200 500 1700 1620 1515 1100 380 425 353 1695 2 1095 151
TFR/ 33P 640 1800 1600 500 1700 1620 1515 1500 380 405 333 1695 2 1495 192

Horizontal Cabinets (QO)


Wall/floor-mounted horizontal enclosures, with two front doors, internal cabling plate and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP55 protection.NEMA TYPE 12. UL/CUL approved.

+ Horizontal boxes 400mm DEEP

Standard supply :

  • Cabinet frame with closed sides
  • Double front reversible solid door, (standard with hinge on the right door)
  • Rear screwed in panel
  • Lower removable plates for cable entry
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Doors locks F1 Weight (Kg)
QO/20104 840 1000 2000 400 900 1900 330 895 2 1 1895 152
QO/18104 740 1000 1800 400 900 1700 330 895 2 1 1695 140
QO/16104 640 1000 1600 400 900 1500 330 895 2 1 1495 119
QO/2084 840 800 2000 400 700 1900 330 695 2 1 1895 126
QO/1884 740 800 1800 400 700 1700 330 695 2 1 1695 120
QO/1684 640 800 1600 400 700 1500 330 695 2 1 1495 101
QO/1664 640 600 1600 400 500 1500 330 495 2 1 1495 81
QO/1484 540 800 1400 400 700 1300 330 695 2 1 1295 93
QO/1464 540 600 1400 400 500 1300 330 495 2 1 1295 74

+ Horizontal boxes 200/300mm DEEP

Standard supply :

  • Cabinet frame with closed side and rear panels
  • Double front reversible solid door, (Standard with locks on the right door)
  • Lower removable plates for cable entry
  • Fixed internal mounting plate

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) W1 P1 G1 Doors locks F1 grommet flange Weight (Kg)
QO/12103 473 1000 1200 300 1150 280 945 2 2 1145 2 112
QO/10103 373 1000 1000 300 950 280 945 2 2 945 2 104
QO/1463 573 600 1400 300 1350 280 545 2 2 1345 2 115
QO/1083 373 800 1000 300 950 280 745 2 2 945 2 98
QO/1082 373 800 1000 200 950 180 745 2 2 945 2 92
QO/863 273 600 800 300 750 280 545 2 2 745 1 89
QO/862 273 600 800 200 750 180 545 2 2 745 1 86


Wall Mounted


Horizontal Cabinets (QO)


Wall/floor-mounted horizontal enclosures, with two front doors, internal cabling plate and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP55 protection.NEMA TYPE 12. UL/CUL approved.

+ Horizontal boxes 400mm DEEP

Standard supply :

  • Cabinet frame with closed sides
  • Double front reversible solid door, (standard with hinge on the right door)
  • Rear screwed in panel
  • Lower removable plates for cable entry
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Doors locks F1 Weight (Kg)
QO/20104 840 1000 2000 400 900 1900 330 895 2 1 1895 152
QO/18104 740 1000 1800 400 900 1700 330 895 2 1 1695 140
QO/16104 640 1000 1600 400 900 1500 330 895 2 1 1495 119
QO/2084 840 800 2000 400 700 1900 330 695 2 1 1895 126
QO/1884 740 800 1800 400 700 1700 330 695 2 1 1695 120
QO/1684 640 800 1600 400 700 1500 330 695 2 1 1495 101
QO/1664 640 600 1600 400 500 1500 330 495 2 1 1495 81
QO/1484 540 800 1400 400 700 1300 330 695 2 1 1295 93
QO/1464 540 600 1400 400 500 1300 330 495 2 1 1295 74

+ Horizontal boxes 200/300mm DEEP

Standard supply :

  • Cabinet frame with closed side and rear panels
  • Double front reversible solid door, (Standard with locks on the right door)
  • Lower removable plates for cable entry
  • Fixed internal mounting plate

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) W1 P1 G1 Doors locks F1 grommet flange Weight (Kg)
QO/12103 473 1000 1200 300 1150 280 945 2 2 1145 2 112
QO/10103 373 1000 1000 300 950 280 945 2 2 945 2 104
QO/1463 573 600 1400 300 1350 280 545 2 2 1345 2 115
QO/1083 373 800 1000 300 950 280 745 2 2 945 2 98
QO/1082 373 800 1000 200 950 180 745 2 2 945 2 92
QO/863 273 600 800 300 750 280 545 2 2 745 1 89
QO/862 273 600 800 200 750 180 545 2 2 745 1 86

Wall Mounted boxes with PVC door (28300)


Enclosures with pvc door, with polyurethane gasket . Completely welded, solid front door, internal plate . Gland plate models available upon request.
Powder coated in textured RAL 7035 .Sold separately: mounting plates and mounting brackets.
NEMA TYPE 12. UL/CUL. IP66.

+ Wall-Mounted boxes with PVC door 300-400-500-600mm HIGH

Main body , thickness 16ga.

  • Internal mounting plate, thickness 14ga

For other sizes please call our sales office

CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 L3 P1 P2 G1 Doors External lock Internal lock F1 Weight (Kg)
28370 275 406 306 200 255 350 155 250 130 50 350 1 1 1 270 11.1
28310 375 406 406 200 255 350 255 350 130 50 350 1 1 1 370 12.1
28316 375 506 406 200 355 450 255 350 130 50 450 1 1 1 370 17.1
28317 375 506 406 250 355 450 255 350 180 50 450 1 1 1 370 18.4
28334 475 506 506 200 355 450 355 450 130 50 450 1 1 1 470 19
28320 375 606 406 200 455 550 255 350 130 50 550 1 2 1 370 19.4
28330 375 606 406 250 455 550 255 350 180 50 550 1 2 1 370 21.5
28374 575 606 606 200 455 550 455 550 130 50 550 1 2 1 550 27.2
28377 575 606 606 250 455 550 455 550 180 50 550 1 2 1 550 28.6

+ Wall-Mounted boxes with PVC door 700-800-900-1000-1200mm HIGH

Main body , thickness 16ga.

  • Internal mounting plate, thickness 14ga

For other sizes please call our sales office

CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 L3 P1 P2 G1 Doors External lock Internal lock F1 Weight (Kg)
28375 475 706 506 200 555 650 355 450 125 50 650 1 2 2 450 26.5
28376 475 706 506 250 555 650 355 450 175 50 650 1 2 2 450 28
29379 575 806 606 200 655 750 455 550 125 50 750 1 2 2 550 34
28380 575 806 606 250 655 750 455 550 175 50 750 1 2 2 550 35.6
28390 575 806 606 300 655 750 455 550 225 50 750 1 2 2 550 37.3
28392 575 906 606 200 755 850 455 550 125 50 850 1 2 2 550 38
28393 575 906 606 250 755 850 455 550 175 50 850 1 2 2 550 40
28394 575 906 606 300 755 850 455 550 225 50 850 1 2 2 550 42
28395 575 1006 606 250 855 950 455 550 175 50 950 1 2 2 550 43.5
28396 575 1006 606 300 855 950 455 550 225 50 950 1 2 2 550 46
28318 775 1006 806 200 855 950 655 750 125 50 950 1 2 2 750 50.3
28319 775 1006 806 250 855 950 655 750 175 50 950 1 2 2 750 54
28420 775 1006 806 300 855 950 655 750 225 50 950 1 2 2 750 58
28440 575 1206 606 300 1055 1150 455 550 225 50 1150 1 2 2 550 53
28450 775 1206 806 250 1055 1150 655 750 175 50 1150 1 2 2 750 65
28460 775 1206 806 300 1055 1150 655 750 225 50 1150 1 2 2 750 68

Junction Boxes (ES)


Small junction boxes with screw-on covers for terminal strips/ pushbuttons etc..
Available in 18 sizes with depth 80/120mm. With predrilled welded rails on bottom to support omega/DIN guides. Sold separately: mounting plates and mounting brackets. Powder coated in textured RAL 7035
IP66 protection.

+ ES Junction boxes 120mm DEEP

Standard supply: 16 ga Box with screw on cover.
Sold separately: mounting plates and mounting brackets. Powder coated in textured RAL 7035 IP66 protection.

CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 W1 L3 L4 L5 P1 G1 Lid F1 Weight (Kg)
ES/22 152 200 200 120 175 164 170 179 175 170 137 95 98 175 1 175 2.5
ES/24 252 150 300 120 125 114 120 129 275 270 237 195 98 125 1 275 2.8
ES/3 252 200 300 120 175 164 170 179 275 270 237 195 98 175 1 275 3.2
ES/25 252 300 300 120 275 264 270 279 275 270 237 195 98 275 1 275 4.3
ES/4 352 200 400 120 175 164 170 179 375 370 337 295 98 175 1 375 4.7
ES/26 352 300 400 120 275 264 270 279 375 370 337 295 98 275 1 375 5.2
ES/27 352 400 400 120 375 364 370 379 375 370 337 295 98 375 1 375 6.4
ES/5 452 200 500 120 175 164 170 179 475 470 437 395 98 125 1 475 5.5
ES/7 452 300 500 120 275 264 270 279 475 470 437 395 98 275 1 475 7.1
ES/6 552 200 600 120 175 164 170 179 575 570 537 495 98 175 1 575 6.2
ES/28 552 300 600 120 275 264 270 279 575 570 537 495 98 275 1 575 7.8
ES/8 552 400 600 120 375 364 370 379 575 570 537 495 98 375 1 575 10.4
ES/29 752 200 800 120 175 164 170 179 775 770 737 695 98 175 1 775 7.6
ES/9 752 400 800 120 375 364 370 379 775 770 737 695 98 375 1 775 12.9

+ ES Junction boxes 80mm DEEP

Standard supply: 16 ga Box with screw on cover.
Sold separately: mounting plates and mounting brackets. Powder coated in textured RAL 7035 IP66 protection.

CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 W1 L3 L4 L5 P1 G1 Lid F1 Weight (Kg)
ES/1 132 150 180 80 125 114 120 129 155 150 117 75 58 125 1 155 1.7
ES/2 152 180 200 80 155 144 150 159 175 170 137 95 58 155 1 175 2
ES/21 152 200 200 80 175 164 170 179 175 170 137 95 58 175 1 175 2.1
ES/23 252 150 300 80 125 114 120 129 275 270 237 195 58 125 1 275 2.4


Consoles


One-piece unit without top (LC)


One-piece console without top element, completely welded.
Sloped top, hinged and openable from inside.
Depth 300 mm. Only upon request: plinth
Powder coated in textured RAL 7035 .
IP66 protection .

+ LC CONSOLE

One-piece welded frame.

  • Front door openable with hinges.
  • Internal mounting plate.
  • Base with removable cable entry flanges.. Painting Ral 7035 Orange peel.

Plinth supplied only upon request.

Catalog Number Height (mm) Width (mm) Depth (mm) H1 H2 P1 G1 Doors F1 Weight (Kg)
LC/16113 1150 1600 300 1087 955 273 980 2 1517 93
LC/12113 1150 1200 300 1087 955 273 980 2 1117 81.5
LC/10113 1150 1000 300 1087 955 273 980 1 917 70
LC/8113 1150 800 300 1087 955 273 980 1 717 58.3
LC/6113 1150 600 300 1087 955 273 980 1 517 46.7

Small consoles (LVD93)


One-piece control desks, for small systems. Base with front access only. Available only in one depth (300mm). Only upon request: plinth H.100mm.
Powder coated in textured RAL 7035 .
IP66 protection

+ TLVD93

One-piece desk composed of:

Base

  • box with side and rear panels fixed
  • reversible front door (standard with hinge on the left)

Desk

  • with top hinged panel with door stop. Modular desk H.100mm
  • Removable lower cable entry flange
  • Fixed internal mounting plate,zinc plated
CatalogNumber Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 P1 P2 Doors G1 F1 Weight (Kg)
LVD93/3 1060 800 300 800 155 100 670 280 500 1 750 750 55
LVD93/2 1060 600 300 800 155 100 470 280 500 1 750 550 46
LVD93/1 1060 500 300 800 155 100 370 280 500 1 750 450 40

Control Consoles (LVE)


Control desks for medium systems, composed by: desk, top , base with only front opening, depth 400mm . Only upon request : plinth.
Powder coated in textured RAL 7035 .
IP66 protection.

+ LVE SEPARATE TOP

Control desks plus top element if required, IP66

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Front Panel F1 Weight (Kg)
LVE/305 300 1600 120 245 1550 95 245 1 1545 18
LVE/304 300 1200 120 245 1150 95 245 1 1145 15.5
LVE/303 300 1000 120 245 950 95 245 1 945 13
LVE/302 300 800 120 245 750 95 245 1 745 10.5
LVE/301 300 600 120 245 550 95 245 1 545 8

+ LVE BASE

One piece Base with top opening

  • Reversible front solid door, (standard with hinge on the left)
  • Lower removable cable entry
  • Internal mounting plate, zinc plated

Only upon request:

  • Plinth
CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Front Doors F1 Weight (Kg)
LVE/105 700 1600 400 600 1500 360 850 2 1530 78
LVE/104 700 1200 400 600 1100 360 850 2 1130 66
LVE/103 700 1000 400 600 900 360 850 1 930 60
LVE/102 700 800 400 600 700 360 850 1 730 54
LVE/101 700 600 400 600 500 360 850 1 530 48

+ LVE SLOPED TOP

Intermediate desk with bottom opening and top hinged cover with door stops.

Only upon request:

  • Top element
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 W1 P1 P2 P3 Doors Weight (Kg)
LVE/205 1550 280 1600 400 530 460 160 120 1485 155 472 578 1 26
LVE/204 1150 280 1200 400 530 460 160 120 1085 155 472 578 1 21
LVE/203 950 280 1000 400 530 460 160 120 885 155 472 578 1 18.2
LVE/202 750 280 800 400 530 460 160 120 685 155 472 578 1 15.6
LVE/201 550 280 600 400 530 460 160 120 485 155 472 578 1 13

+ LVE PLINTH

Modular plinth 100mm High

CatalogNumber Height (mm) Width (mm) Depth (mm) Weight (Kg)
LVE401 100 600 360 6
LVE402 100 800 360 7.1
LVE403 100 1000 360 8.2
LVE404 100 1200 360 9.3
LVE405 100 1600 360 11.5

Modular Consoles (LV)


Modular desks with base -intermediate-top elements and plinth H.100/200mm.
The base element has front and rear access, with depth of 400/500mm. Only upon request: plinth.
Powder coated in textured RAL 7035.
IP66 protection.

+ LV BASE 400mm DEEP

Box with closed sides, top opening (D.400/500)

  • Reversible solid front and rear door/s, (standard with hinges on the left)
  • Removable bottom cable entry plates
  • Adjustable internal mounting plate
CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Base doors Rear Doors F1 Weight (Kg)
LV/105 700 1600 400 600 1500 330 595 2 2 1490 81
LV/104 700 1200 400 600 1100 330 595 2 2 1090 67
LV/103 700 1000 400 600 900 330 595 1 1 890 61
LV/102 700 800 400 600 700 330 595 1 1 690 55
LV/101 700 600 400 600 500 330 595 1 1 490 49

+ LV DESK 400mm DEEP

Intermediate desk with top and bottom opening, with front hinged panel

CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 Doors Weight (Kg)
LV/205 1550 200 1600 843 450 372 1490 1 37
LV/204 1150 200 1200 843 450 372 1090 1 28
LV/203 950 200 1000 843 450 372 890 1 24
LV/202 750 200 800 843 450 372 690 1 20
LV/201 550 200 600 843 450 372 490 1 16

+ LV CLOSING PLATE 400mm DEEP

alt text

Closing plate for intermediate desk

CatalogNumber Height (mm) Width (mm) Depth (mm) Weight (Kg)
LV/505 30 1600 370 10.2
LV/504 30 1200 370 7.8
LV/503 30 1000 370 14.24
LV/502 30 800 370 5.4
LV/501 30 600 370 4.2

+ LV TOP 400mm DEEP

Box with bottom opening

  • Front hinged door, with door stop
  • Rear screwed in panel
  • Adjustable internal mounting plate
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 H5 W1 L3 P1 P2 P3 Doors G1 F1 Weight (Kg)
LV/305 1550 470 1600 390 450 372 380 410 424 1490 1550 300 225 305 1 370 1550 52
LV/304 1150 470 1200 390 450 372 380 410 424 1090 1150 300 225 305 1 370 1150 40
LV/303 950 470 1000 390 450 372 380 410 424 890 950 300 225 305 1 370 950 34
LV/302 750 470 800 390 450 372 380 410 424 690 750 300 225 305 1 370 750 29
LV/301 550 470 600 390 450 372 380 410 424 490 550 300 225 305 1 370 550 23

+ LV PLINTH 400/500 DEEP

Modular plinth H 100

CatalogNumber L2(19") Front Panel Unit HE
LV401 0 0 0
LV402 0 0 0
LV403 0 0 0
LV404 0 0 0
LV405 0 0 0
LV411 0 0 0
LV412 0 0 0
LV413 0 0 0
LV414 0 0 0
LV415 0 0 0

+ LV BASE 500mm DEEP

Box with closed sides, top opening (D.400/500)

  • Reversible solid front and rear door/s, (standard with hinges on the left)
  • Removable bottom cable entry plates
  • Adjustable internal mounting plate
CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Base doors Rear Doors F1 Weight (Kg)
LV/115 700 1600 500 600 1500 430 595 2 2 1490 83
LV/114 700 1200 500 600 1100 430 595 2 2 1090 69
LV/113 700 1000 500 600 900 430 595 1 1 890 63
LV/112 700 800 500 600 700 430 595 1 1 690 57
LV/111 700 600 500 600 500 430 595 1 1 490 51

+ LV DESK 500mm DEEP

Intermediate desk with top and bottom opening, with front hinged panel.

CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 Doors Weight (Kg)
LV/215 1550 200 1600 943 450 372 1490 1 38
LV/214 1150 200 1200 943 450 372 1090 1 29
LV/213 950 200 1000 943 450 372 890 1 25
LV/212 750 200 800 943 450 372 690 1 21
LV/211 550 200 600 943 450 372 490 1 17

+ LV CLOSING PLATE 500mm DEEP

alt text <! data-preserve-html-node="true"--div class="dlbutton"> Download Technical Drawing

Closing plate for intermediate desk

CatalogNumber Height (mm) Width (mm) Depth (mm) Weight (Kg)
LV/515 30 1600 470 12
LV/514 30 1200 470 9.2
LV/513 30 1000 470 7.8
LV/512 30 800 470 6.4
LV/511 30 600 470 5

+ LV TOP 500mm DEEP

Box with bottom opening

  • Front hinged door, with door stop
  • Rear screwed in panel
  • Adjustable internal mounting plate
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 H5 W1 L3 P1 P2 P3 Doors G1 F1 Weight (Kg)
LV/315 1550 470 1600 490 450 372 380 410 424 1490 1550 400 325 405 1 370 1550 55
LV/314 1150 470 1200 490 450 372 380 410 424 1090 1150 400 325 405 1 370 1150 43
LV/313 950 470 1000 490 450 372 380 410 424 890 950 400 325 405 1 370 950 37
LV/312 750 470 800 490 450 372 380 410 424 690 750 400 325 405 1 370 750 31
LV/311 550 470 600 490 450 372 380 410 424 490 550 400 325 405 1 370 550 25

One-piece Consoles (LVM)


One-piece unit complete with top element.
With or without desk. Front and rear access, single mounting plate, base depth 500 mm. Only upon request: plinth.
Powder coated in textured RAL 7035 .
IP66 protection.

+ LVM

One-piece welded frame with front top and bottom hinged door

  • Intermediate shelf, (as alternative it is possible to have a screwed in panel)
  • One-piece hinged rear door
  • One-piece internal mounting plate
  • Base with two removable cable entry flanges

Painting Ral 7035 Orange peel

The supply includes:

  • Plinth supplied only upon request
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 W1 L3 P1 P2 P3 P4 G1 Base doors Rear Doors F1 Weight (Kg)
LVM/16145 1500 1370 1600 500 380 600 195 100 1550 1598 430 400 470 375 1265 2 2 1500 168
LVM/12145 1100 1370 1200 500 380 600 195 100 1150 1198 430 400 470 375 1265 2 2 1100 135
LVM/10145 900 1370 1000 500 380 600 195 100 950 998 430 400 470 375 1265 1 1 900 119
LVM/8145 700 1370 800 500 380 600 195 100 750 798 430 400 470 375 1265 1 1 700 104
LVM/6145 500 1370 600 500 380 600 195 100 550 598 430 400 470 375 1265 1 1 500 89


Network cabinets


Free-Standing Data Cabinets (TCF)


Floor-standing cabinets for data transmission and for network-telephone-applications, complete with 19” rack rails. .
Strong sheet-metal structure.
Front PVC door with 180° opening. Rear and side walls are removable.
Also available: plinths, castors and leveling feet.

+ TCF CABINETS

The supply includes:

  • Cabinet structure complete with front PVCe door
  • Lock with disappearing handle
  • Rear wall screwed in
  • Side walls openable with double bit key
  • Vented top
  • Inside pair of support bars for 19” rack (mm 482,5), adjustable in depth with pitch 25 mm
  • 4 leveling feet

Painted Ral 7035/6033

Plinth supplied only upon request

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 H2 W1 L2(19") L3 L4 L5 Doors Unit HE Weight (Kg)
TCF/4888 2266 800 800 2133.6 2126 447 483 120 180 415 1 48 163
TCF/4886 2266 800 600 2133.6 2126 447 483 120 180 415 1 48 130
TCF/4868 2266 600 800 2133.6 2126 447 483 20 80 415 1 48 145.5
TCF/4866 2266 600 600 2133.6 2126 447 483 20 80 415 1 48 113.4
TCF/4288 2000 800 800 1866.9 1860 447 483 120 180 415 1 42 146
TCF/4286 2000 800 600 1866.9 1860 447 483 120 180 415 1 42 115
TCF/4268 2000 600 800 1866.9 1860 447 483 20 80 415 1 42 132.2
TCF/4266 2000 600 600 1866.9 1860 447 483 20 80 415 1 42 102
TCF/3688 1733 800 800 1600.2 1593 447 483 120 180 415 1 36 133
TCF/3686 1733 800 600 1600.2 1593 447 483 120 180 415 1 36 103
TCF/3668 1733 600 800 1600.2 1593 447 483 20 80 415 1 36 119
TCF/3666 1733 600 600 1600.2 1593 447 483 20 80 415 1 36 90.6
TCF/3088 1466 800 800 1333.5 1326 447 483 120 180 415 1 30 104.7
TCF/3086 1466 800 600 1333.5 1326 447 483 120 180 415 1 30 90
TCF/3066 1466 600 600 1333.5 1326 447 483 20 80 415 1 30 79.2
TCF/2286 1110 800 600 977.9 970 447 483 120 180 415 1 22 73
TCF/2268 1110 600 800 977.9 970 447 483 20 80 415 1 22 76
TCF/2266 1110 600 600 977.9 970 447 483 20 80 415 1 22 64

+ Cable Wireway For TCF

Made of sheet-metal, thickness 16ga, to be fixed on side part of cabinets TCF width 800 mm.

Complete with front screwed in panel. For cable management. Painted Ral 7035.

CatalogNumber Description
TCF1022 Per Armadio 22HE
TCF1030 Per Armadio 30HE
TCF1036 Per Armadio 36HE
TCF1042 Perx Armadio 42HE
TCF1048 Perx Armadio 48HE

+ Solid plates 482,6 mm (19'')

Made of sheet-metal, thickness 16ga, to close off open sections of the cabinets

Painted Ral 7035

CatalogNumber Description
TCF1001 Pannello 1HE mm44
TCF1002 Pannello 2HE mm88
TCF1003 Pannello 3HE mm132,5
TCF1004 Pannello 4HE mm177

+ Cable Entry Plate 482,6 mm (19")

Made of sheet-metal, thickness 16ga, with dust guard brush insert

Painted Ral 7035

CatalogNumber Description
TCF1052 Pannello 2HE mm88

+ Vented Plates

Made of sheet-metal, thickness 16ga, with vent slots.

Painted Ral 7035

CatalogNumber Description
TCF1071 Pannello 1HE mm44
TCF1072 Pannello 2HE mm88

+ Cable Plate 482,6 mm (19")

Made of sheet-metal, thickness 16ga, with cut- out for cable entry

Painted Ral 7035

CatalogNumber Description
TCF1061 Pannello 1HE mm44
TCF1062 Pannello 2HE mm88

+ Cable Routing Plate 482,6 mm (19")

Made of sheet-metal, thickness 16ga, to hold patching cables

A front solid cover panel is included

Painted Ral 7035

CatalogNumber Description
TCF1082 Pannello 2HE mm88 completo di pannello frontale

+ Plates with 5 Shunting Rings 482,6 mm (19")

Made of sheet-metal, thickness 16ga, for cable routing

Painted Ral 7035

CatalogNumber Description
TCF1091 Pannello 1HE mm44
TCF1092 Pannello 2HE mm88

+ Plate with Omega Din Rail

Made of sheet-metal, thickness 16ga, for din mounted components

Painted Ral 7035

CatalogNumber Description
TCF1055 Pannello 2HE mm88

+ Shelf

Made of sheet-metal, thickness16ga. It is fixed on vertical uprights

Painted Ral 7035

CatalogNumber Description
TCF1012 Mensola 2HE 65xP250mm
TCF1013 Mensola 2HE 65xP400mm

+ Pull-out Shelf

Made of sheet-metal, thickness 16ga, complete with telescopic guides fixed on the vertical uprights

Painted Ral 7035

CatalogNumber Width (mm) Depth (mm) For Cabinets L x P
TCF6161 425 245 600x600
TCF6181 425 445 600x800
TCF8161 425 245 800x600
TCF8181 425 445 800x800

+ Fixed Shelf

Made of sheet-metal, thickness 16ga

For components, monitor and keyboard

Painted Ral 7035

CatalogNumber Width (mm) Depth (mm) For Cabinets L x P
TCF6060 445 350 600x600
TCF6080 445 550 600x800
TCF8060 445 350 800x600
TCF8080 445 550 800x800

+ Leveling Feet

Set of 4 leveling feet, to be used on uneven floors

CatalogNumber Description
TSR870 4 Piedini livellamento M12 H125 mm in ferro

+ Modular plinths H.100

Made of sheet-metal, thickness 16ga, 100mm (4") high

Composed of 4 corner pieces and and side panels.

Painted Ral 6033

CatalogNumber Width (mm) For Cabinets L x P
TCF6160 600 600
TCF6180 600 800
TCF8160 800 600
TCF8180 800 800

+ Fan Tray 482,6 mm (19")

19" Rack mountable tray complete with cooling fans

The unit is pre-wired for easy installation

CatalogNumber Width (mm) Depth (mm) H1 Voltage (V) Fan power (mq/h) N° of fans Frequency (Hz) Temperature range
VE3322 430 208 43.6 230V 486 3 50 20°C + 70°C
VE6622 430 330 43.6 230V 972 6 50 20°C + 70°C

+ Stabilizers

Made of sheet-metal, thickness 16ga

To increase stability cross-member is positioned under the cabinets

Upon request, supplied with castors or leveling feet

CatalogNumber Description
7009 Kit 4 piedini di sollevamento
7010 Kit 4 ruote sostegno stabilizzatori

Wall-Mounted 400MM DEEP (TCW-400)


Wall-mounted enclosures, with welded one-piece structure.
Front PVC door. Internal frame for 19” rack, adjustable in depth in 25 mm. increments.
Top and bottom cable entry flanges.

+ WALL-MOUNTED 400MM DEEP

The supply includes:

  • Assembled structure with airing slits
  • Upper/lower cable entry with closure flanges, one with brush and one solid
  • It is arranged inside with comb for cable anchorage
  • Front glaze door. 19” rack internal frame adjustable in depth with pitch 25 mm

Painting Ral 7035/6033

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 H2 W1 L2(19") L4 L5 Doors Unit HE Weight (Kg)
TCW/1864 900 600 400 800.1 748 450 483 85 430 1 18 33
TCW/1564 767 600 400 66.75 615 450 483 85 430 1 15 30
TCW/1264 634 600 400 533.4 480 450 483 85 430 1 12 28
TCW/964 500 600 400 400 348 450 483 85 430 1 9 24
TCW/664 367 600 400 266.7 215 450 483 85 430 1 6 21

Wall-Mounted 525MM DEEP (TCW-525)


Wall-mounted enclosures, with 3 part-structure. The fixed wall side is 125mm deep while the front side is 400mm deep.
Front PVC door.
Internal frame for 19” rack , adjustable in 25 mm. increments.
Top and bottom cable entry flanges.

+ WALL MOUNTED 525MM DEEP

The supply includes:

Cabinets P525 mm composed by two parts

Wall part

  • Welded structure with upper/lower cable entry slits
  • Closure flanges, one with brush and one solid
  • It is arranged inside with comb for cable anchorage

Swing part

  • Welded structure with front glaze door
  • 19” rack internal frame and cable anchorage frame adjustable in depth with pitch 25 mm
  • Open rear

Painting Ral 7035/6033

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 H2 W1 L2(19") L4 L5 P1 P2 P3 Doors Unit HE Weight (Kg)
TCW/1865 900 600 525 800.1 748 450 483 85 430 400 125 100 1 18 47
TCW/1565 767 600 525 66.75 615 450 483 85 430 400 125 100 1 15 43
TCW/1265 634 600 525 533.4 480 450 483 85 430 400 125 100 1 12 38.5
TCW/965 500 600 525 400 348 450 483 85 430 400 125 100 1 9 33
TCW/665 367 600 525 266.7 215 450 483 85 430 400 125 100 1 6 28

RACK 19'' (7000)


Cabinets for 19” rack system (482,6mm.) for Telephone Networks

+ Cabinets for 19” racks’

Cabinets for 19” rack systems (482,6), for networks or for telephone distribution.
The frame codes, from 7001 to 7004, are supplied as single code because they can be used as laboratory racks composed by a single frame , or assembled in pair, completed by ceilings, bases, side filling elements and solid and transparent doors.
Frame and panellings painting RAL 7035 orange peel.
Front frame and plinths RAL 6033 Orange peel.

CatalogNumber Height (mm) Width (mm) Depth (mm) Description For Cabinets LxP
7001 1522 600 32 Telaio
7002 1700 600 36 Telaio
7003 1878 600 40 Telaio
7004 2056 600 44 Telaio
7005 860 Sostegni stabilizzatori per Armadi (coppia) 600
7006 1060 Sostegni stabilizzatori per Armadi (coppia) 800
7007 100 600 600 Zoccoli
7008 100 600 800 Zoccoli
7011 32 600 Coppia fianchi
7012 36 600 Coppia fianchi
7013 40 600 Coppia fianchi
7014 44 600 Coppia fianchi
7015 32 800 Coppia fianchi
7016 36 800 Coppia fianchi
7017 40 800 Coppia fianchi
7018 44 800 Coppia fianchi
7019 32 Retro
7020 36 Retro
7021 40 Retro
7022 44 Retro
7023 32 Porta trasparente
7024 36 Porta trasparente
7025 40 Porta trasparente
7026 44 Porta trasparente
7027 600 600 Testa base 600x600
7028 600 800 Testa base 600x800


Computer Cabinets


Computer Cabinets (LAN)


Cabinet for computers with one-piece or modular structure, complete with monitor, keyboard and central unit support.
IP55 protection.

+ LAN Cabinets

The supply includes:

  • Cabinet frame
  • Front door divided into three parts:
    1. upper hinged transparent door for monitor.
    2. fold-down central small door with keyboard support and plane for mouse.
    3. lower hinged solid door.
  • Screwed in shelf for CPU.
  • Screwed in shelf for monitor.
  • Panels: rear and side screwed in.
  • Painting: RAL 7032/7009/6033.

Only on request.

  • Modular plinth (pag.174).
  • Special glasses (i.e. with 14” serigraphy).
CatalogNumber Height (mm) Width (mm) Depth (mm) Doors Weight (Kg)
TSR-LAN 1810 600 625 3 128

+ LAN/A Cabinets

The supply includes:

  • Cabinet frame
  • Front door divided into three parts:
    1. upper hinged transparent door for monitor.
    2. extractable drawer for keyboard and plane for mouse.
    3. lower hinged solid door.
  • Screwed in shelf for CPU.
  • Rear screwed in panel.
  • Side screwed in panels.
  • Painting: RAL 7032/7009/6033.

Only on request.

  • Modular plinth (pag.174).
  • Special glasses (i.e. with 14” serigraphy).
CatalogNumber Height (mm) Width (mm) Depth (mm) Doors Weight (Kg)
TSR-LAN/A 1810 600 625 3 132

+ LAN/B Cabinets

The supply includes:

  • Cabinet frame
  • Front door divided into four parts:
    1. upper hinged transparent door for monitor.
    2. fold-down central door for push buttons.
    3. extractable drawer for keyboard with plane for mouse.
    4. lower hinged solid door.
  • Screwed in shelf for monitor.
  • Panels: rear and side screwed in.
  • Painting: RAL 7032/7009/6033.

Only on request.

  • Modular plinth (pag.174).
  • Special glasses (i.e. with 14” serigraphy).
CatalogNumber Height (mm) Width (mm) Depth (mm) Doors Weight (Kg)
TSR-LAN/B 1810 600 625 4 134

+ LAN 1 Cabinets

The supply includes:

  • Cabinet frame with window
  • Front door divided into three parts:
    1. upper hinged transparent door for monitor.
    2. fold-down central small door with keyboard support and plane for mouse.
    3. lower hinged solid door.
  • Screwed in shelf for CPU.
  • Screwed in shelf for monitor.
  • Rear screwed in panel.
  • Painting: RAL 7032/7009/6033.

Only on request.

  • Modular plinth (pag.174).
  • Special glasses (i.e. with 14” serigraphy).
CatalogNumber Height (mm) Width (mm) Depth (mm) Doors Weight (Kg)
TSR-LAN 1 1600 600 625 3 102

+ LAN 1/A Cabinets

The supply includes:

  • Cabinet frame
  • Front door divided into three parts:
    1. upper hinged transparent door for monitor
    2. extractable drawer for keyboard and plane for mouse
    3. lower hinged solid door
  • Shelf for monitor
  • Rear screwed in panel
  • Painting: RAL 7032/7009/6033

Only on request:

  • Modular plinth (pag.174)
  • Special glasses (i.e. with 14” serigraphy)
CatalogNumber Height (mm) Width (mm) Depth (mm) Doors Weight (Kg)
TSR-LAN 1/A 1600 600 625 3 106

+ LAN 2 Cabinets

The supply includes:

  • Cabinet frame with window frame
  • Front door divided into two parts:
    1. upper hinged transparent door for monitor
    2. extractable drawer for keyboard and plane for mouse
  • Screwed in shelf for CPU
  • Rear screwed in panel
  • Painting: RAL 7032/7009/6033

Only on request:

  • Special glasses (i.e. with 14” serigraphy).
CatalogNumber Height (mm) Width (mm) Depth (mm) Doors Weight (Kg)
TSR-LAN 2 760 600 625 2 50

+ Mobile Pedestal for LAN2

Sheet-steel thickness 15/10; to be put under LAN2 box, Arranged for inside cable entry, it allows an easy movement and use of box for computer.
Painting: RAL 6033 orange peel.

The supply includes:

  • Base with stabilizer supports.
  • No. 4 double castors, two of them fixed with stopper and two free pivoting.
CatalogNumber Height (mm) Width (mm) Depth (mm) Description Weight (Kg)
7080 900 200 700 Base con Ruote 25


Pendant Systems


HLT Suspension System


Heavy duty operator interface suspension system for automation control.
To ask for pricing for this product category, please contact us by email at : tecno@tecnomatic.com

Pendant Boxes (DCF)


Operartor enclosure , complete with front plate and front aluminum frame.
Completely welded structure, steel-metal thickness 15/10, with openable rear door anodized natural aluminium front panel with thickness 20/10, painted aluminium profile frame at the perimeter.
Painting RAL 7035/7016.

+ Hanging control boxes - DCF range

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 H3 H4 W1 L3 P1 Rear door B4 Weight (Kg)
DCF 4420/6 400 400 200 450 342 315 450 342 221 1 315 11.5
DCF 4420/8 400 400 200 450 342 315 450 342 221 1 315 11.5
DCF 4520/6 500 400 200 550 442 415 450 342 221 1 315 13
DCF 4520/8 500 400 200 550 442 415 450 342 221 1 315 13
DCF 4620/6 600 400 200 650 542 515 450 342 221 1 315 14.5
DCF 4620/8 600 400 200 650 542 515 450 342 221 1 315 14.5
DCF 5520/6 500 500 200 550 442 415 550 442 221 1 415 15
DCF 5520/8 500 500 200 550 442 415 550 442 221 1 415 15
DCF 5735/6 700 500 350 750 642 615 550 442 371 1 415 25
DCF 5735/8 700 500 350 750 642 615 550 442 371 1 415 25
DCF 6635/6 600 600 350 650 542 515 650 542 371 1 515 26
DCF 6635/8 600 600 350 650 542 515 650 542 371 1 515 26

Pendant Boxes (DPH)


Completely welded structure, steel-metal thickness 15/10, with openable rear door, anodized natural aluminium front panel with thickness 20/10, painted aluminium profile handle.<br>
Painting RAL 7035/6033.

+ Hanging control boxes - DPH range

CatalogNumber Height (mm) Width (mm) Depth (mm) H2 H3 W1 L3 P1 B2 B4 Rear Doors Weight (Kg)
DPH 3620/6 200 360 155 160 142 390 302 153 240 260 1 8
DPH 3620/8 200 360 155 160 142 390 302 153 240 260 1 8
DPH 4430/6 300 440 210 260 242 470 382 208 320 340 1 10
DPH 4430/8 300 440 210 260 242 470 382 208 320 340 1 10
DPH 4438/6 380 440 210 340 322 470 382 208 320 340 1 12
DPH 4438/8 380 440 210 340 322 470 382 208 320 340 1 12
DPH 5650/6 500 560 210 460 442 590 502 208 440 460 1 15
DPH 5650/8 500 560 210 460 442 590 502 208 440 460 1 15
DPH 6638/6 380 660 210 340 322 690 602 208 540 460 1 14
DPH 6638/8 380 660 210 340 322 690 602 208 540 460 1 14


Stainless Steel


Modular cabinets (TSR-A / TSR-PA)


Modular cabinets, complete with: reversible solid or pvc doors, rear screwed in wall, cabling internal plate, top and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP66 protection. NEMA TYPE 12. UL/CUL approved.

+ Stainless-steel cabinets H.1400mm. W.600-800 w/ solid door.

Standard supply :

  • Cabinet frame.
  • Front reversible PVC door.
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 P2 G1 Doors F1 Weight (Kg)
TSR/165A 440 1410 600 400 1300 1220 500 305 250 1295 1 495 70
TSR/166A 640 1410 800 400 1300 1220 700 305 250 1295 1 695 94
TSR /168A 440 1410 600 500 1300 1220 500 405 350 1295 1 495 73
TSR/169A 640 1410 800 500 1300 1220 700 405 350 1295 1 695 97
TSR/171A 440 1410 600 600 1300 1220 500 505 450 1295 1 495 76
TSR/172A 640 1410 800 600 1300 1220 700 505 450 1295 1 695 101

+ Stainless-steel cabinets H.2200mm. W.600-800-1000 w/ PVC door.

  • Cabinet frame.
  • Front reversible PVC door.
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides walls
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 P3 G1 Doors F1 Weight (Kg)
TSR/ 75PA 840 2210 1000 1000 2100 2020 1915 900 780 905 850 833 2095 1 895 181
TSR/ 74PA 840 2210 1000 800 2100 2020 1915 900 780 705 650 633 2095 1 895 169
TSR/ 73PA 840 2210 1000 600 2100 2020 1915 900 780 505 450 433 2095 1 895 157
TSR/ 72PA 840 2210 1000 500 2100 2020 1915 900 780 405 350 333 2095 1 895 156
TSR/ 71PA 840 2210 1000 400 2100 2020 1915 900 780 305 250 233 2095 1 895 144
TSR/ 70PA 640 2210 800 1000 2100 2020 1915 700 580 905 850 833 2095 1 695 141
TSR/ 69PA 640 2210 800 800 2100 2020 1915 700 580 705 650 633 2095 1 695 135
TSR/ 68PA 640 2210 800 600 2100 2020 1915 700 580 505 450 433 2095 1 695 129
TSR/ 67PA 640 2210 800 500 2100 2020 1915 700 580 405 350 333 2095 1 695 126
TSR/ 66PA 640 2210 800 400 2100 2020 1915 700 580 305 250 233 2095 1 695 123
TSR/ 65PA 440 2210 600 1000 2100 2020 1915 500 380 905 850 833 2095 1 495 114
TSR/ 64PA 440 2210 600 800 2100 2020 1915 500 380 705 650 633 2095 1 495 108
TSR/ 63PA 440 2210 600 600 2100 2020 1915 500 380 505 450 433 2095 1 495 102
TSR/ 62PA 440 2210 600 500 2100 2020 1915 500 380 405 350 333 2095 1 495 99
TSR/ 61PA 440 2210 600 400 2100 2020 1915 500 380 305 250 233 2095 1 495 96

Cabinets with closed sides (TFR-A / TFR-PA)


Modular cabinets, complete with: reversible solid or pvc doors, rear screwed in wall, cabling internal plate, top and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035 .
IP66 protection. NEMA TYPE 12. UL/CUL approved.

+ Stainless-steel cabinets with solid doors

Standard supply :

  • Cabinet frame.
  • Front reversible solid door, (standard with lock on right)
  • Rear screwed in wall.
  • Removable top
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Modular plinth
  • Sides panels
  • Lifting eye-bolts
  • Drilled or solid vertical dividing element
  • Joining set
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 P1 G1 Doors F1 Weight (Kg)
TFR/31A 840 1800 1000 500 1700 1620 900 425 1695 1 895 140
TFR/30A 840 1800 1000 400 1700 1620 900 325 1695 1 895 135
TFR/29A 640 1800 800 500 1700 1620 700 425 1695 1 695 119
TFR/28A 640 1800 800 400 1700 1620 700 325 1695 1 695 113
TFR/27A 440 1800 600 500 1700 1620 500 425 1695 1 495 96
TFR/26A 440 1800 600 400 1700 1620 500 325 1695 1 495 90
TFR/25A 840 1600 1000 400 1500 1420 900 325 1495 1 895 113
TFR/24A 640 1600 800 400 1500 1420 700 325 1495 1 695 95
TFR/23A 440 1600 600 400 1500 1420 500 325 1495 1 495 75
TFR/22A 640 1400 800 400 1300 1220 700 325 1295 1 695 87
TFR/21A 440 1400 600 400 1300 1220 500 325 1295 1 495 68
TFR/41A 640 2000 1600 500 1900 1820 1500 405 1895 2 1495 215
TFR/40A 440 2000 1200 500 1900 1820 1100 425 1895 2 1095 172
TFR/33A 640 1800 1600 500 1700 1620 1500 405 1695 2 1495 205
TFR/32A 440 1800 1200 500 1700 1620 1100 425 1695 2 1095 161
TFR/39A 840 2000 1000 500 1900 1820 900 425 1895 1 895 151
TFR/38A 840 2000 1000 400 1900 1820 900 325 1895 1 895 146
TFR/37A 640 2000 800 500 1900 1820 700 425 1895 1 695 130
TFR/36A 640 2000 800 400 1900 1820 700 325 1895 1 695 123
TFR/35A 440 2000 600 500 1900 1820 500 425 1895 1 495 107
TFR/34A 440 2000 600 400 1900 1820 500 325 1895 1 495 100

+ Stainless-steel cabinets with transparent doors

Standard supply :

  • Cabinet frame with closed sides.
  • Double reversible solid door, (standard with hinge on the right door).
  • Rear screwed in wall.
  • Lower removable plates for cable entry.
  • Adjustable internal mounting plate.

Only upon request:

  • Modular plinth
  • Lifting eye-bolts
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 L3 P1 P2 G1 Doors F1 Weight (Kg)
TFR/ 41PA 640 2000 1600 500 1900 1820 1715 1500 580 405 333 1895 2 1495 201
TFR/ 40PA 440 2000 1200 500 1900 1820 1715 1100 380 425 353 1895 2 1095 161
TFR/ 39PA 840 2000 1000 500 1900 1820 1715 900 780 425 353 1895 1 895 141
TFR/ 38PA 840 2000 1000 400 1900 1820 1715 900 780 325 253 1895 1 895 136
TFR/ 37PA 640 2000 800 500 1900 1820 1715 700 580 425 353 1895 1 695 122
TFR/ 36PA 640 2000 800 400 1900 1820 1715 700 580 325 253 1895 1 695 115
TFR/ 35PA 440 2000 600 500 1900 1820 1715 500 380 425 353 1895 1 495 101
TFR/ 34PA 440 2000 600 400 1900 1820 1715 500 380 325 253 1895 1 495 94
TFR/ 33PA 640 1800 1600 500 1700 1620 1515 1500 380 405 333 1695 2 1495 192
TFR/ 32PA 440 1800 1200 500 1700 1620 1515 1100 380 425 353 1695 2 1095 151
TFR/ 31PA 840 1800 1000 500 1700 1620 1515 900 780 425 353 1695 1 895 132
TFR/ 30PA 840 1800 1000 400 1700 1620 1515 900 780 325 253 1695 1 895 126
TFR/ 29PA 640 1800 800 500 1700 1620 1515 700 580 425 353 1695 1 695 113
TFR/ 28PA 640 1800 800 400 1700 1620 1515 700 580 325 253 1695 1 695 107
TFR/ 27PA 440 1800 600 500 1700 1620 1515 500 380 425 353 1695 1 495 91
TFR/ 26PA 440 1800 600 400 1700 1620 1515 500 380 325 253 1695 1 495 85
TFR/ 25PA 840 1600 1000 400 1500 1420 1315 900 780 325 253 1495 1 895 106
TFR/ 24PA 640 1600 800 400 1500 1420 1315 700 580 325 253 1495 1 695 89
TFR/ 23PA 440 1600 600 400 1500 1420 1315 500 380 325 253 1495 1 495 70
TFR/ 22PA 640 1400 800 400 1300 1220 1115 700 580 325 253 1295 1 695 82
TFR/ 21PA 440 1400 600 400 1300 1220 1115 500 380 325 253 1295 1 495 64

Horizontal Cabinets (QO-A)


Horizontal cabinets, wall- mounted or free-standing, in stainless steel AISI 304, with front double doors, internal plate and bottom with removable cable entry flanges.
NEMA TYPE 12. UL/CUL approved. IP 55.

Wall Mounted Boxes (28800-SS/28300-SS)


Wall Mounted boxes with polyurethane gasket . Completely welded, solid front door, internal plate .
Sold separately: mounting plates and mounting brackets.
NEMA TYPE 4. UL/CUL approved. IP 55. EACH ENCLOSURES AVAILABLE IN BOTH STAINLESS STEEL AND REGULAR PAINTED STEEL. PLEASE REFER TO THE PAINTED STEEL PAGE FOR SIZES.

Junction Boxes (ES-A)


Stainless steel AISI 304 boxes with screw-on covers
IP66 protection.

+ ES stainless-steel AISI 304 junction boxes D.80mm

The supply includes:

  • Main structure

Only upon request:

  • Internal mounting plate
  • Wall mounting brackets
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 W1 L3 L4 L5 P1 G1 Lid F1 Weight (Kg)
ES/1A 132 150 180 80 125 114 120 129 155 150 117 75 58 125 1 155 1.7
ES/2A 152 180 200 80 155 144 150 159 175 170 137 95 58 155 1 175 2
ES/21A 152 200 200 80 175 164 170 179 175 170 137 95 58 175 1 175 2.1
ES/23A 252 150 300 80 125 114 120 129 275 270 237 195 58 125 1 275 2.4

+ ES stainless-steel AISI 304 junction boxes D.120mm.

The supply includes:

  • Main structure

Only upon request:

  • Internal mounting plate
  • Wall mounting brackets
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 W1 L3 L4 L5 P1 G1 Lid F1 Weight (Kg)
ES/22A 152 200 200 120 175 164 170 179 175 170 137 95 98 175 1 175 2.5
ES/24A 252 150 300 120 125 114 120 129 275 270 237 195 98 125 1 275 2.8
ES/3A 252 200 300 120 175 164 170 179 275 270 237 195 98 175 1 275 3.2
ES/25A 252 300 300 120 275 264 270 279 275 270 237 195 98 275 1 275 4.3
ES/4A 352 200 400 120 175 164 170 179 375 370 337 295 98 175 1 375 4.7
ES/26A 352 300 400 120 275 264 270 279 375 370 337 295 98 275 1 375 5.2
ES/27A 352 400 400 120 375 364 370 379 375 370 337 295 98 375 1 375 6.4
ES/5A 452 200 500 120 175 164 170 179 475 470 437 395 98 125 1 475 5.5
ES/7A 452 300 500 120 275 264 270 279 475 470 437 395 98 275 1 475 7.1
ES/6A 552 200 600 120 175 164 170 179 575 570 537 495 98 175 1 575 6.2
ES/28A 552 300 600 120 275 264 270 279 575 570 537 495 98 275 1 575 7.8
ES/8A 552 400 600 120 375 364 370 379 575 570 537 495 98 375 1 575 10.4
ES/29A 752 200 800 120 175 164 170 179 775 770 737 695 98 175 1 775 7.6
ES/9A 752 400 800 120 375 364 370 379 775 770 737 695 98 375 1 775 12.9

Small Consoles (LVD93-A)


Stainless steel AISI 304 small consoles , composed by a bases with various depth, plinths, intermediate shelves and top elements.
Ip66 protection.

+ LVD93 Desks

Stainless-steel AISI 304 desks complete with plinth and internal plate, IP66 protection.

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 H2 H3 W1 P1 P2 Doors G1 F1 Weight (Kg)
LVD93/3A 1060 800 300 800 155 100 670 280 500 1 750 750 55
LVD93/2A 1060 600 300 800 155 100 470 280 500 1 750 550 46
LVD93/1A 1060 500 300 800 155 100 370 280 500 1 750 450 40

Control Consoles (LVE-A)


Modular cabinets, complete with: reversible solid or pvc doors, rear screwed in wall, cabling internal plate, top and bottom with removable flanges for cable entry.
Powder coated in textured RAL 7035.
IP66 protection. NEMA TYPE 12. UL/CUL approved.

+ LVE base

The supply includes:

  • Stainless-steel AISI 304 box with side and rear panels fixed, with upper opening.
  • Reversible front solid door, (standard with hinge on the left).
  • Lower removable cable entry.
  • Fixed internal mounting zinc plated steel plate.
  • Lower removable plates for cable entry.
  • Internal mounting zinc plated steel plate.

Only upon request:

  • Plinth
CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Front Doors F1 Weight (Kg)
LVE/105A 700 1600 400 600 1500 360 850 2 1530 78
LVE/104A 700 1200 400 600 1100 360 850 2 1130 66
LVE/103A 700 1000 400 600 900 360 850 1 930 60
LVE/102A 700 800 400 600 700 360 850 1 730 54
LVE/101A 700 600 400 600 500 360 850 1 530 48

+ LVE desk

The supply includes:

  • Intermediate stainless-steel AISI 304 shelf as desk with lower opening and upper hinged panel with door stop (2- piece composition).

Only upon request:

  • Upper element
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 W1 P1 P2 P3 Doors Weight (Kg)
LVE/205A 1550 280 1600 400 530 460 160 120 1485 155 472 578 1 26
LVE/204A 1150 280 1200 400 530 460 160 120 1085 155 472 578 1 21
LVE/203A 950 280 1000 400 530 460 160 120 885 155 472 578 1 18.2
LVE/202A 750 280 800 400 530 460 160 120 685 155 472 578 1 15.6
LVE/201A 550 280 600 400 530 460 160 120 485 155 472 578 1 13

+ LVE Upper element (additional attachment)

Control stainless-steel AISI 304 desks plus upper element if required, IP66 protection.

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Front Panel F1 Weight (Kg)
LVE/305A 300 1600 120 245 1550 95 245 1 1545 18
LVE/304A 300 1200 120 245 1150 95 245 1 1145 15.5
LVE/303A 300 1000 120 245 950 95 245 1 945 13
LVE/302A 300 800 120 245 750 95 245 1 745 10.5
LVE/301A 300 600 120 245 550 95 245 1 545 8

+ LVE INOX Plinth

Stainless-steel AISI 304 moular plinth H 100 for LVE desks P 400.

CatalogNumber Height (mm) Width (mm) Depth (mm) Weight (Kg)
LVE401A 100 600 360 6
LVE402A 100 800 360 7.1
LVE403A 100 1000 360 8.2
LVE404A 100 1200 360 9.3
LVE405A 100 1600 360 11.5

Modular Consoles (LV-A)


Staniless Steel 304 Modular desks with upper element composed by base with front and rear opening, depth 400/500mm., Central desk, upper element and plinth H.100/200mm.
For various combinations.
IP66 protection.

+ LV INOX base

Modular stainless-steel AISI 304 desks, for various combinations.
IP66 and TÜV certified.

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 W1 P1 G1 Base doors Rear Doors F1 Weight (Kg)
LV/115A 700 1600 500 600 1500 430 595 2 2 1490 83
LV/114A 700 1200 500 600 1100 430 595 2 2 1090 69
LV/113A 700 1000 500 600 900 430 595 1 1 890 63
LV/112A 700 800 500 600 700 430 595 1 1 690 57
LV/111A 700 600 500 600 500 430 595 1 1 490 51
LV/105A 700 1600 400 600 1500 330 595 2 2 1490 81
LV/104A 700 1200 400 600 1100 330 595 2 2 1090 67
LV/103A 700 1000 400 600 900 330 595 1 1 890 61
LV/102A 700 800 400 600 700 330 595 1 1 690 55
LV/101A 700 600 400 600 500 330 595 1 1 490 49

+ LV INOX intermediate shelf

The supply includes:

  • Intermediate stainless-steel AISI 304 shelf with upper and lower opening, with front hinged panel.
CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 W1 Doors Weight (Kg)
LV/215A 1550 200 1600 943 450 372 1490 1 38
LV/214A 1150 200 1200 943 450 372 1090 1 29
LV/213A 950 200 1000 943 450 372 890 1 25
LV/212A 750 200 800 943 450 372 690 1 21
LV/211A 550 200 600 943 450 372 490 1 17
LV/205A 1550 200 1600 843 450 372 1490 1 37
LV/204A 1150 200 1200 843 450 372 1090 1 28
LV/203A 950 200 1000 843 450 372 890 1 24
LV/202A 750 200 800 843 450 372 690 1 20
LV/201A 550 200 600 843 450 372 490 1 16

+ LV Filling element INOX

<! data-preserve-html-node="true"--div class="dlbutton"> Download Technical Drawing

Stainless-steel AISI 304 filling element for LV desks D 400/500

CatalogNumber Height (mm) Width (mm) Depth (mm) Weight (Kg)
LV/515A 30 1600 470 12
LV/514A 30 1200 470 9.2
LV/513A 30 1000 470 7.8
LV/512A 30 800 470 6.4
LV/511A 30 600 470 5
LV/505A 30 1600 370 10.2
LV/504A 30 1200 370 7.8
LV/503A 30 1000 370 14.24
LV/502A 30 800 370 5.4
LV/501A 30 600 370 4.2

+ LV INOX Upper element

Modular stainless-steel AISI 304 desks, for various combinations.
IP66 and TÜV certified.

CatalogNumber L2 Height (mm) Width (mm) Depth (mm) H1 H2 H3 H4 H5 W1 L3 P1 P2 P3 Doors G1 F1 Weight (Kg)
LV/315A 1550 470 1600 490 450 372 380 410 424 1490 1550 400 325 405 1 370 1550 55
LV/314A 1150 470 1200 490 450 372 380 410 424 1090 1150 400 325 405 1 370 1150 43
LV/313A 950 470 1000 490 450 372 380 410 424 890 950 400 325 405 1 370 950 37
LV/312A 750 470 800 490 450 372 380 410 424 690 750 400 325 405 1 370 750 31
LV/311A 550 470 600 490 450 372 380 410 424 490 550 400 325 405 1 370 550 25
LV/305A 1550 470 1600 390 450 372 380 410 424 1490 1550 300 225 305 1 370 1550 52
LV/304A 1150 470 1200 390 450 372 380 410 424 1090 1150 300 225 305 1 370 1150 40
LV/303A 950 470 1000 390 450 372 380 410 424 890 950 300 225 305 1 370 950 34
LV/302A 750 470 800 390 450 372 380 410 424 690 750 300 225 305 1 370 750 29
LV/301A 550 470 600 390 450 372 380 410 424 490 550 300 225 305 1 370 550 23

+ LV INOX Plinth

Stainless-steel AISI 304 moular plinth H 100 for LV desks P 400/500

CatalogNumber Height (mm) Width (mm) Depth (mm) Weight (Kg)
LV401A 100 600 360 6
LV402A 100 800 360 7.1
LV403A 100 1000 360 8.2
LV404A 100 1200 360 9.3
LV405A 100 1600 360 11.5
LV411A 100 600 460 6.5
LV412A 100 800 460 7.6
LV413A 100 1000 460 8.7
LV414A 100 1200 460 9.8
LV415A 100 1600 460 12

Computer Cabinets (LAN-I)


Stainless steel AISI 304 cabinets for computers with one-pieces or modular structure, complete with monitor, keyboard and central unit supports.
IP55 protection.



ACCESSORIES


Plinths, Bases, and Plates

Plinths, Bases, Plates

+ Modular plinths H100

Made of sheet-metal thickness 16ga, 100mm (4") high. Composed of 4 corner pieces and side panels. Paint: Textured RAL 7009.

CatalogNumber Height (mm) Width (mm) Depth (mm) Weight (Kg)
TSR531 100 200 400 3
TSR532 100 200 500 4
TSR533 100 200 600 5
TSR534 100 200 800 6
TSR535 100 200 1000 7
TSR536 100 300 400 3.5
TSR537 100 300 500 4.5
TSR538 100 300 600 5.5
TSR539 100 300 800 6.5
TSR557 100 400 400 4.9
TSR558 100 400 500 5.4
TSR559 100 400 600 5.9
TSR560 100 400 800 6.9
TSR561 100 400 1000 7.9
TSR601 100 600 400 6
TSR602 100 600 500 6.5
TSR603 100 600 600 7
TSR604 100 600 800 8
TSR605 100 600 1000 9
TSR606 100 800 400 7.1
TSR607 100 800 500 7.6
TSR608 100 800 600 8.1
TSR609 100 800 800 9.1
TSR610 100 800 1000 10.1
TSR611 100 1000 400 8.2
TSR612 100 1000 500 8.7
TSR613 100 1000 600 9.2
TSR614 100 1000 800 10.2
TSR615 100 1000 1000 11.2
TSR616 100 1200 400 9.3
TSR617 100 1200 500 9.8
TSR618 100 1200 600 10.3
TSR619 100 1200 800 11.3
TSR620 100 1200 1000 12.3
TSR641 100 1400 400 10.4
TSR642 100 1400 500 10.9
TSR643 100 1400 600 11.4
TSR644 100 1400 800 12.4
TSR645 100 1400 1000 13.4
TSR646 100 1600 400 11.5
TSR666 100 1800 400 13
TSR667 100 2000 400 14
TSR647 100 1600 500 12
TSR648 100 1600 600 12.5
TSR649 100 1600 800 13.5

+ Modular plinths H200

Made of sheet-metal thickness 16ga, 200mm (4") high. Composed of 4 corner pieces and side panels. Paint: Textured RAL 7009.

CatalogNumber Height (mm) Width (mm) Depth (mm) H1 Weight (Kg)
TSR541 200 200 400 200 5.5
TSR542 200 200 500 200 7.5
TSR543 200 200 600 200 9
TSR544 200 200 800 200 11
TSR545 200 200 1000 200 12.5
TSR546 200 300 400 200 6.5
TSR547 200 300 500 200 8.5
TSR548 200 300 600 200 10
TSR549 200 300 800 200 12
TSR562 200 400 400 200 8.5
TSR563 200 400 500 200 9.5
TSR564 200 400 600 200 10.5
TSR565 200 400 800 200 12.5
TSR566 200 400 1000 200 14.5
TSR621 200 600 400 200 10.5
TSR622 200 600 500 200 11.5
TSR623 200 600 600 200 12.5
TSR624 200 600 800 200 14.5
TSR625 200 600 1000 200 16.5
TSR626 200 800 400 200 12.5
TSR627 200 800 500 200 13.5
TSR628 200 800 600 200 14.5
TSR629 200 800 800 200 16.5
TSR630 200 800 1000 200 18.5
TSR631 200 1000 400 200 14.5
TSR632 200 1000 500 200 15.5
TSR633 200 1000 600 200 16.5
TSR634 200 1000 800 200 18.5
TSR635 200 1000 1000 200 20.5
TSR636 200 1200 400 200 16.5
TSR637 200 1200 500 200 17.5
TSR638 200 1200 600 200 18.5
TSR639 200 1200 800 200 20.5
TSR640 200 1200 1000 200 22.5
TSR651 200 1400 400 200 18.5
TSR652 200 1400 500 200 19.5
TSR653 200 1400 600 200 20.5
TSR654 200 1400 800 200 22.5
TSR655 200 1400 1000 200 24.5
TSR656 200 1600 400 200 20.5
TSR657 200 1600 500 200 21.5
TSR658 200 1600 600 200 22.5
TSR659 200 1600 800 200 24.5
TSR668 200 1800 400 200 23.5
TSR669 200 2000 400 200 25.5

+ Castors

To be fixed to the plinth or to the cabinet. The set includes 4 castors, two of which have a break. Mouning hardware included.

CatalogNumber Description
TSR500 4 ruote (n° 2 con freno - n° 2 libere) e 4 dadi M12 Ø 80mm

+ Leveling Feet

Mounted under the plinth to compensate for uneven floors.Made of steel, with thread M12. Pack: 4 pieces.

CatalogNumber Description Absorbed Power System Capacity No. Units No. Pieces No. Modules Width For Cabinets Voltage (V)
TSR670 4 piedini M12 H125 mm in ferro
TSR671 4 piedini M16 H150 mm in ferro 0 0 0 0 0 0 0

+ Transport Plinth H.100mm (4")

Made of sheet-metal , thickness 11ga, for transportation of heavy multi-bay cabinets. Minimun with is 1800 mm (71"). Each unit is made to order. Painted in textured Ral 7032. orange peel.

CatalogNumber Height (mm) Depth (mm) Description
TSR661 100 400 * Larghezza su richiesta (mm)
TSR662 100 500 * Larghezza su richiesta (mm)
TSR663 100 600 * Larghezza su richiesta (mm)
TSR664 100 800 * Larghezza su richiesta (mm)
TSR665 100 1000 * Larghezza su richiesta (mm)

+ One-Piece Plinths H.200mm (8")

Made of sheet-metal, thickness 14ga with closed bottom and openable sides for cable entry. Painted in textured RAL 7032.

CatalogNumber Height (mm) Width (mm) Depth (mm) For Cabinets L x P Weight (Kg)
TSR459 200 400 365 400x400 8.8
TSR460 200 400 465 400x500 10.3
TSR461 200 400 565 400x600 11.8
TSR462 200 400 765 400x800 14.8
TSR463 200 400 965 400x1000 17.8
TSR464 200 600 365 600x400 11.7
TSR465 200 600 465 600x500 13.5
TSR466 200 600 565 600x600 15.3
TSR467 200 600 765 600x800 18.9
TSR468 200 600 965 600x1000 22.5
TSR469 200 800 365 800x400 14.6
TSR470 200 800 465 800x500 16.7
TSR471 200 800 565 800x600 18.8
TSR472 200 800 765 800x800 23
TSR473 200 800 965 800x1000 27.2
TSR474 200 1000 365 1000x400 17.5
TSR475 200 1000 465 1000x500 19.9
TSR476 200 1000 565 1000x600 22.3
TSR477 200 1000 765 1000x800 27.1
TSR478 200 1000 965 1000x1000 31.9
TSR479 200 1200 365 1200x400 20.4
TSR480 200 1200 465 1200x500 23.1
TSR481 200 1200 565 1200x600 25.8
TSR482 200 1200 765 1200x800 31.2
TSR483 200 1200 965 1200x1000 36.6
TSR484 200 1400 365 1400x400 23.3
TSR485 200 1400 465 1400x500 26.3
TSR486 200 1400 565 1400x600 29.3
TSR487 200 1400 765 1400x800 35.3
TSR488 200 1400 965 1400x1000 41.3
TSR489 200 1600 365 1600x400 26.2
TSR490 200 1600 465 1600x500 29.5
TSR491 200 1600 565 1600x600 38.8
TSR492 200 1600 765 1600x800 39.4

+ Side Panels for One-Piece Plinth

Made of sheet-metal, thickness 14ga. Painted in textured RAL 7032.

CatalogNumber For Cabinets P
TSR495 400
TSR496 500
TSR497 600
TSR498 800
TSR499 1000

+ Stabilizers for LAN Cabinets

Made of sheet-metal, thickness 16ga. To increase stability cross-member is positioned under the cabinets. Upon request , supplied with castors or leveling feet. Ordering Code : 7009 for Leveling feet M10 (4 pieces). - or 7010 for Castors (4 pieces), 2 of which with stop. Available paint: textured RAL 7009 or RAL 5018.

CatalogNumber Description
7005 Sostegni stabilizzatori 860 a Armadi P600 mm
7006 Sostegni stabilizzatori 1060 a Armadi P800 mm
7104 Sostegni stabilizzatori 660 a Armadi P400 mm
7105 Sostegni stabilizzatori 760 a Armadi P500 mm

+ Pedestal for LAN

Made of sheet-metal, thickness 16ga. Standard supply:base with stabilizers - four castors, two with stop. Paint: textured RAL 6033.

+ Side Walls for TSR Cabinets

Made of sheet-metal, thickness 14ga. For closing of side of cabinets with 6 M6 screws. Paint: textured RAL 7032.

CatalogNumber For Cabinets H x W Height (mm) Width (mm) Weight (Kg)
TSR189 1400x400 1373 350 14
TSR190 1400x500 1373 450 17
TSR191 1400x600 1373 550 20
TSR192 1600x400 1573 350 16
TSR193 1600x500 1573 450 19
TSR194 1600x600 1573 550 22
TSR351 1800x400 1773 350 17.5
TSR352 1800x500 1773 450 22
TSR353 1800x600 1773 550 26
TSR354 1800x800 1773 750 31
TSR355 1800x1000 1773 950 35
TSR356 2000x400 1973 350 19
TSR357 2000x500 1973 450 24
TSR358 2000x600 1973 550 30
TSR359 2000x800 1973 750 34
TSR360 2000x1000 1973 950 38
TSR361 2200x400 2173 350 21
TSR362 2200x500 2173 450 26
TSR363 2200x600 2173 550 32
TSR364 2200x800 2173 750 37
TSR365 2200x1000 2173 950 43

+ Single side wall for TSR Cabinets

Made of sheet-metal, thickness 16ga. Spare side wall. Paint: textured RAL 7032.

CatalogNumber For Cabinets Height (mm) Width (mm) Weight (Kg)
TSR366 1800x400 1773 350 8.7
TSR367 1800x500 1773 450 11
TSR368 1800x600 1773 550 13
TSR369 1800x800 1773 750 17.5
TSR370 2000x400 1973 350 9.5
TSR371 2000x500 1973 450 12
TSR372 2000x600 1973 550 15
TSR373 2000x800 1973 750 19
TSR374 2200x400 2173 350 11
TSR375 2200x500 2173 450 13
TSR376 2200x600 2173 550 16
TSR377 2200x800 2173 750 21

+ Front solid door with 180° opening for TSR-TFR Cabinets

Made of sheet-metal, thickness 15ga. , with die-cast hinges, standard locking bar system and double cam key. Paint: textured RAL 7032.

CatalogNumber For Cabinets Height (mm) Width (mm) Description
TSR840 1400x1600 1390 580
TSR841 1400x800 1390 780
TSR842 1400x1200 1390 1160 * LARGHEZZA 2x580
TSR843 1600x400 1590 380
TSR844 1600x600 1590 580
TSR845 1600x800 1590 780
TSR846 1600x1000 1590 980
TSR847 1600x1200 1590 1160 * LARGHEZZA 2x580
TSR848 1800x400 1790 380
TSR849 1800x600 1790 580
TSR850 1800x800 1790 780
TSR851 1800x1000 1790 980
TSR852 1800x1200 1790 1160 * LARGHEZZA 2x580
TSR853 1800x1400 1790 1360 * LARGHEZZA 2x680
TSR854 1800x1600 1790 1560 * LARGHEZZA 2x780
TSR855 2000x400 1990 380
TSR856 2000x600 1990 580
TSR857 2000x800 1990 780
TSR858 2000x1000 1990 980
TSR859 2000x1200 1990 1160 * LARGHEZZA 2x580
TSR860 2000x1400 1990 1360 * LARGHEZZA 2x680
TSR861 2000x1600 1990 1560 * LARGHEZZA 2x780
TSR862 2200x400 2190 380
TSR863 2200x600 2190 580
TSR864 2200x800 2190 780
TSR865 2200x1000 2190 980
TSR866 2200x1200 2190 1160 * LARGHEZZA 2x580
TSR867 2200x1400 2190 1360 * LARGHEZZA 2x680
TSR868 2200x1600 2190 1560 * LARGHEZZA 2x780

+ Solid doors for TSR-TFR H1400/1600

Made of sheet-metal, thickness 15ga. , with die-cast hinges, standard locking bar system and double cam key. Paint: textured RAL 7032.

CatalogNumber Height (mm) Width (mm) For Cabinet H x P Weight (Kg) Description
TFR801 1390 590 1400x600 20
TFR802 1390 790 1400x800 26
TFR803 1390 1180 1400x1200 37 * LARGHEZZA 2x590
TFR804 1590 390 1600x400 21
TFR805 1590 590 1600x600 21
TFR806 1590 790 1600x800 27
TFR807 1590 990 1600x1000 32
TFR808 1590 1180 1600x1200 39 * LARGHEZZA 2x590

+ Solid doors for TSR-TFR H1800

Made of sheet-metal, thickness 15ga. with die-cast hinges, standard locking bar system and double cam key. Paint: textured RAL 7032.

CatalogNumber Height (mm) Width (mm) For Cabinet H x P Weight (Kg) Description
TSR788 1790 190 1800x200 9
TSR798 1790 390 1800x400 15
TSR801 1790 590 1800x600 22
TSR802 1790 790 1800x800 28
TSR803 1790 990 1800x1000 35
TSR804 1790 1180 1800x1200 43 * LARGHEZZA 2x590
TSR809 1790 1380 1800x1400 49 * LARGHEZZA 2x690
TSR810 1790 1580 1800x1600 55 * LARGHEZZA 2x790

External/Internal Accessories


External Internal Access

+ Mounting Plates for TSR-TFR

Made of pre-zinc plated press-bent sheet-metal (Sendzimir), thickness 15/10, complete with nylon guides for an easy insertion in the cabinets.

CatalogNumber For Cabinets W x H Height (mm) Width (mm) Weight (Kg)
TSR100 400x1800 1700 300 10
TSR101 600x1800 1700 500 16
TSR102 800x1800 1700 700 28
TSR103 1000x1800 1700 900 35
TSR104 1200x1800 1700 1100 42
TSR105 1400x1800 1700 1300 49
TSR106 1600x1800 1700 1500 56
TSR107 400x2000 1900 300 11
TSR108 600x2000 1900 500 18
TSR109 800x2000 1900 700 31
TSR110 1000x2000 1900 900 39
TSR111 1200x2000 1900 1100 47
TSR112 1400x2000 1900 1300 55
TSR113 1600x2000 1900 1500 63
TSR114 400x2100 2100 300 12
TSR115 600x2100 2100 500 20
TSR116 800x2100 2100 700 34
TSR117 1000x2100 2100 900 43
TSR118 1200x2100 2100 1100 52
TSR119 1400x2100 2100 1300 61
TSR120 1600x2100 2100 1500 70
TFR101 600x1400 1300 500 13
TFR102 800x1400 1300 700 17
TFR103 1200x1400 1300 1100 23
TFR104 400x1600 1500 300 13
TFR105 600x1600 1500 500 15
TFR106 800x1600 1500 700 19
TFR107 1000x1600 1500 900 22
TFR108 1200x1600 1500 1100 26

+ Intermediate Plates for TSR

Made of pre-zinc plated press-bent sheet-metal (Sendzimir), thickness 25/10, to be used to join internal plates in set of cabinets

CatalogNumber For Cabinets Height (mm) Width (mm) Weight (Kg)
TSR121 1400 1285 100 4.5
TSR122 1600 1485 100 5.5
TSR123 1800 1685 100 6.8
TSR124 2000 1885 100 7.6
TSR125 2200 2085 100 8.4

+ Mounting plates - Lateral insertion

Made of pre-zinc plated press-bent sheet-metal (Sendzimir), thickness 25/10, complete with lower and upper guides, mounted inside the cabinets for an easy entry and for the fixing.

CatalogNumber For Cabinets W x H Height (mm) Width (mm) Weight (Kg) Description
TSR217 600x1800 1700 600 25
TSR218 800x1800 1700 800 32
TSR219 1000x1800 1700 1000 39
TSR220 1200x1800 1700 1200 46
TSR221 1400x1800 1700 1400 54 * L = 2x700
TSR222 1600x1800 1700 1600 62 * L = 2x800
TSR223 600x2000 1900 600 28
TSR224 800x2000 1900 800 35
TSR225 1000x2000 1900 1000 43
TSR226 1200x2000 1900 1200 51
TSR227 1400x2000 1900 1400 60 * L = 2x700
TSR228 1600x2000 1900 1600 69 * L = 2x800
TSR229 600x2200 2100 600 31
TSR230 800x2200 2100 800 38
TSR231 1000x2200 2100 1000 47
TSR232 1200x2200 2100 1200 56
TSR233 1400x2200 2100 1400 66 * L = 2x700
TSR234 1600x2200 2100 1600 76 * L = 2x800

+ Internal mounting plates (partial)

Made of pre-zinc plated press-bent sheet-metal (Sendzimir), thickness 25/10, to allow an easy mounting of components at various depths. They can be ordered with four side cross bars.

CatalogNumber Width For Cabinets Height (mm) Width (mm) Weight (Kg)
TSR201 600 200 498 2.3
TSR202 600 300 498 3.2
TSR203 600 400 498 4.1
TSR204 600 500 498 5
TSR205 800 200 698 3.2
TSR206 800 300 698 4.1
TSR207 800 400 698 5
TSR208 800 500 698 5.9
TSR209 1000 200 898 4
TSR210 1000 300 898 4.9
TSR211 1000 400 898 5.8
TSR212 1000 500 898 6.7
TSR213 1200 200 1098 4.8
TSR214 1200 300 1098 5.7
TSR215 1200 400 1098 6.6
TSR216 1200 500 1098 7.5

+ Zinc plated Fixed Shelves

Made of pre-zinc-plated press-bent sheet-metal (Sendzimir), thickness 25/10, fixed on the cabinet structure. They allow the partition inside the carpentry. No. 2 types height-adjustable: - for mounting without internal plate - for mounting with internal plate.

CatalogNumber For Cabinets W x D Width (mm) Depth (mm) Weight (Kg)
TSR301 600x400 600 340 2.8
TSR302 600x500 600 440 3.5
TSR303 600x600 600 540 4.2
TSR304 600x800 600 740 5.3
TSR305 600x1000 600 940 6.7
TSR306 800x400 800 340 3.2
TSR307 800x500 800 440 4.2
TSR308 800x600 800 540 5.2
TSR309 800x800 800 740 7
TSR310 800x1000 800 940 9
TSR311 1000x400 1000 340 4.1
TSR312 1000x500 1000 440 5.3
TSR313 1000x600 1000 540 6.4
TSR314 1000x800 1000 740 8.8
TSR315 1000x1000 1000 940 11
TSR316 1200x400 1200 340 5.9
TSR317 1200x500 1200 440 6.3
TSR318 1200x600 1200 540 7.7
TSR319 1200x800 1200 740 10.5
TSR320 1200x1000 1200 940 13.3

+ Zinc plated Fixed Shelves (with plate)

Made of pre-zinc-plated press-bent sheet-metal (Sendzimir), thickness 25/10, fixed on the cabinet structure. They allow the partition inside the carpentry. No. 2 types height-adjustable: - for mounting without internal plate - for mounting with internal plate.

CatalogNumber For Cabinets W x D Width (mm) Depth (mm) Weight (Kg)
TSR321 600x400 600 300 2.8
TSR322 600x500 600 400 3.5
TSR323 600x600 600 500 4.2
TSR324 600x800 600 700 5.3
TSR325 600x1000 600 900 6.7
TSR326 800x400 800 300 3.2
TSR327 800x500 800 400 4.2
TSR328 800x600 800 500 5.2
TSR329 800x800 800 700 7
TSR330 800x1000 800 900 9
TSR331 1000x400 1000 300 4.1
TSR332 1000x500 1000 400 5.3
TSR333 1000x600 1000 500 6.4
TSR334 1000x800 1000 700 8.8
TSR335 1000x1000 1000 900 11
TSR336 1200x400 1200 300 5.9
TSR337 1200x500 1200 400 6.3
TSR338 1200x600 1200 500 7.7
TSR339 1200x800 1200 700 10.5
TSR340 1200x1000 1200 900 13.3

+ Pull-down Shelves

Made of sheet-metal, thickness 15/10, for the mounting on tubular frames in door inside. They are used to place planning apparatus or other. Painting RAL 7032 orange peel.

CatalogNumber Description
TSR777 Per porte armadi Larghezza 600mm
TSR778 Per porte armadi Larghezza 800mm

+ Pull-out Shelves

Made of sheet-metal, thickness 16ga, complete with telescopic guides fixed on the vertical uprights.
Painted Ral 7035.

CatalogNumber For Cabinets W x D Width (mm) Depth (mm)
TSR285 600x400 475 250
TSR286 600x500 475 350
TSR287 600x600 475 450
TSR288 600x800 475 650
TSR289 800x400 675 250
TSR290 800x500 675 350
TSR291 800x600 675 450
TSR292 800x800 675 650
TSR293 1000x400 875 250
TSR294 1000x500 875 350
TSR295 1000x600 875 450
TSR296 1000x800 875 650

+ Printer Trolley

Used insided the LAN Cabinets to house printer and paper.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
ST1 0 0 0 0 0 0 0 0 0 Carrello porta stampante estraibile

+ Transformers supports

Made of sheet-metal, thickness 14ga. Used as support for transfomers inside bottom of cabinet.

CatalogNumber No. Pieces Width (mm)
TSR901 2 600
TSR902 2 800
TSR903 2 1000
TSR904 2 1200

+ System Bars 25-50-75 mm High for TSR Cabinets

Made of press-bent sheet-metal, thickness 20/10, with various dimensions for horizontal, vertical and side fixing to the cabinet structure with drilling with pitch 25 mm. Single pack.

CatalogNumber Description
TSR721 Traversina laterale H25 x L250 per armadi P400
TSR722 Traversina laterale H25 x L350 per armadi P500
TSR723 Traversina laterale H25 x L450 per armadi P600
TSR724 Traversina laterale H25 x L650 per armadi P800
TSR725 Traversina laterale H25 x L850 per armadi P1000
TSR726 Traversina frontale H25 x L500 per armadi P600
TSR727 Traversina frontale H25 x L700 per armadi P800
TSR728 Traversina frontale H25 x L900 per armadi P1000
TSR729 Traversina frontale H25 x L1100 per armadi P1200
TSR741 Traversina laterale H75 x L250 per armadi P400
TSR742 Traversina laterale H75 x L350 per armadi P500
TSR743 Traversina laterale H75 x L450 per armadi P600
TSR744 Traversina laterale H75 x L650 per armadi P800
TSR745 Traversina laterale H75 x L850 per armadi P1000
TSR746 Traversina frontale H75 x L250 per armadi P600
TSR747 Traversina frontale H75 x L250 per armadi P800
TSR748 Traversina frontale H75 x L250 per armadi P1000
TSR749 Traversina frontale H75 x L250 per armadi P1200
TSR750 Traversina verticale perforata H75 x L1700 x P50
TSR751 Traversina verticale perforata H75 x L1900 x P50
TSR752 Traversina laterale H50 x L250 per armadi P400
TSR753 Traversina laterale H50 x L350 per armadi P500
TSR754 Traversina laterale H50 x L450 per armadi P600
TSR755 Traversina laterale H50 x L650 per armadi P800
TSR756 Traversina laterale H50 x L850 per armadi P1000
TSR757 Traversina frontale H25 x L250 per armadi P400
TSR758 Traversina frontale H25 x L250 per armadi P400
TSR759 Traversina frontale H25 x L250 per armadi P400
TSR760 Traversina frontale H25 x L250 per armadi P400
TSR761 Traversina verticale perforata H50 x L1700 x P50
TSR762 Traversina verticale perforata H50 x L1900 x P50
TSR763 Traversina verticale perforata H50 x L2100 x P50
TSR764 Traversina verticale perforata H75 x L2100 x P50

+ System Bars for VFR Cabinets

Made of press-bent sheet-metal, thickness 15/10, for the side fixing on the cabinet structure with drilling with pitch 25mm. Single pack.

CatalogNumber Description
TFR44 Traversina laterale L345 x H49 per armadi P400
TFR45 Traversina laterale L445 x H49 per armadi P500

+ System Bars for Doors

Made of press-bent sheet-metal, thickness 15/10. Drilled cross bar, pitch 25mm, fixed on door inside profiles; it allows an easy mounting of channels, reinforcements and coverings. Painting RAL 7032 orange peel.

CatalogNumber Description
TSR771 Traversino interno anta L458 per armadi L600
TSR772 Traversino interno anta L658 per armadi L800
TSR773 Traversino interno anta L858 per armadi L1000

+ Lifting Eyebolts

Made of zinc passivated steel M12, to be screwed in on the cabinet structure. Single pack.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
TSR910 0 0 0 0 0 0 0 0 0 Golfare di sollevamento M12

+ Crane Lifting Eyebolts

Made of sheet-metal, thickness 8mm, for crane trasportation of enclosures. Painted: RAL 7032. Supply: 1 double eyebolt, 2 bolts 12x30 and 2 washers 12x36mm.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
TSR910/b 0 0 0 0 0 0 0 0 0 Doppio golfare di sollevamento

+ Joining Kit for TSR cabinets

Accessories for joining enclosures together. Standard supply: 8 pcs hexagonal head screws diam. 8 mm. with washers, 8 pcs hexagonal bolts 8 mm with washers. - Adhesive rubber gasket.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
TSR938 0 0 0 0 0 0 0 0 0 Kit unione per due armadi DRC

+ Joining and Reinforcing Kit for TSR cabinets

Used to strenghten enclosures coupling. Mounting hardware included.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
TSR939 0 0 0 0 0 0 0 0 0 Kit di affiancamento armadi

+ Door stop

Made of sheet-metal, thickness 14ga. Used to block door at 90° and prevent accidental closing.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
TSR927 0 0 0 0 0 0 0 0 0 Fermo anta antivento

+ Metal Print Pocket

![alt text]/s/ia201.jpg)

Made of sheet-metal, thickness. 16ga, to be mounted on the insided of doors.Paint: RAL 2004.

CatalogNumber Description
TSR781 Tasca porta schemi in FE L428 mm per armadi L600
TSR782 Tasca porta schemi in FE L628 mm per armadi L800
TSR783 Tasca porta schemi in FE L828 mm per armadi L1000
TSR784 Tasca porta schemi in FE L528 mm per armadi L700

+ Plastic Print Pocket

Made of plastic A4 size, fixed with adhesive. Paint: RAL 7032.

CatalogNumber Description
TSR926 Tasca porta schemi in materiale plastico

+ Internal Mounting Plate for ES Boxes.

Made of sheet-metal, thickness 14ga.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets For Boxes Height for Cabinets Voltage (V) Height (mm) Width (mm)
ES1P 0 0 0 0 0 0 0 ES1 0 0 125 155
ES2P 0 0 0 0 0 0 0 ES2 0 0 155 175
ES21P 0 0 0 0 0 0 0 ES21/22 0 0 175 175
ES23P 0 0 0 0 0 0 0 ES23/24 0 0 125 275
ES3P 0 0 0 0 0 0 0 ES3 0 0 175 275
ES25P 0 0 0 0 0 0 0 ES25 0 0 275 275
ES4P 0 0 0 0 0 0 0 ES4 0 0 175 375
ES26P 0 0 0 0 0 0 0 ES26 0 0 275 375
ES27P 0 0 0 0 0 0 0 ES27 0 0 375 375
ES5P 0 0 0 0 0 0 0 ES5 0 0 175 475
ES7P 0 0 0 0 0 0 0 ES7 0 0 275 475
ES6P 0 0 0 0 0 0 0 ES6 0 0 175 575
ES28P 0 0 0 0 0 0 0 ES28 0 0 275 575
ES8P 0 0 0 0 0 0 0 ES8 0 0 375 575
ES29P 0 0 0 0 0 0 0 ES29 0 0 175 775
ES9P 0 0 0 0 0 0 0 ES9 0 0 375 775

+ Rain Canopy for Wall-Mounted Boxes

Made of sheet-metal, thickness 15/10, it is recommended for outdoor installation. It allows the water flow in the frontal part of the board. Painting: RAL 7032 orange peel.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets For Boxes W x D Height for Cabinets Voltage (V) Width (mm) Depth (mm)
D9390 0 0 0 0 0 0 0 300x200 0 0 310 230
D93101 0 0 0 0 0 0 0 350x200 0 0 360 230
D9391 0 0 0 0 0 0 0 400x200 0 0 410 230
D9392 0 0 0 0 0 0 0 400x250 0 0 410 280
D9393 0 0 0 0 0 0 0 500x200 0 0 510 230
D9394 0 0 0 0 0 0 0 500x250 0 0 510 280
D9395 0 0 0 0 0 0 0 600x200 0 0 610 230
D9396 0 0 0 0 0 0 0 600x250 0 0 610 280
D9397 0 0 0 0 0 0 0 600x300 0 0 610 330
D9398 0 0 0 0 0 0 0 800x200 0 0 810 230
D9399 0 0 0 0 0 0 0 800x250 0 0 810 280
D93100 0 0 0 0 0 0 0 800x300 0 0 810 330

+ Wall mounting brackets 88475

Made of zinc plated sheet-metal (Sendzimir), thickness 14ga. For the Wall-Mounted and Junction boxes.

CatalogNumber Absorbed Power System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
88475 0 0 0 0 0 0 0 0 0 Kit 4 staffe di fissaggio

Locks, Screws, and Nuts


LOCKS, SCREWS, NUTS

+ Gaskets

Several types of gaskets to increase the protection degree of cabinets

CatalogNumber Description
TSR912 Guarnizione adesiva 12x12
TSR913 Guarnizione coprifilo
TSR914 Guarnizione adesiva 3x10
TSR915 Guarnizione adesiva 3x20
TSR916 Guarnizione adesiva 10x20
TSR917 Guarnizione adesiva 25x20/passacavi
TSR918 Guarnizione per fissaggio plexiglass

+ Screws with flat and hexagon head

Screws with flat and hexagon head

CatalogNumber Description
TSR950 Vite testa svasata piana con impronta a croce 6x35 (50 pz.)
TSR951 Vite testa svasata piana con impronta a croce 6x25 (50 pz.)
TSR952 Vite testa svasata piana con impronta a croce 6x12 (50 pz.)
TSR953 Vite testa svasata esagonale con frangia 6x15 (50 pz.)

+ Screws with hexagon, cross and Comby head

Screws with hexagon, cross and Comby head

CatalogNumber Description
TSR949 Vite autofilettante testa esagonale 8x16 (50 pz.)
TSR954 Vite zincata testa esagonale 8x16 (50 pz.)
TSR955 Vite zincata testa croce + impronta 6x12 (50 pz.)
TSR956 Vite zincata testa Combi T.B.L. 6x20 (50 pz.)
TSR957 Vite zincata testa Combi T.B.L. 6x35 (50 pz.)

+ Self-tapping, self-threading and self-perforating screw

Self-tapping, self-threading and self-perforating screw

CatalogNumber Description
TSR958 Vite automaschiante testa esagonale 6x16 (50 pz.)
TSR959 Vite autofilettante testa bombata con impronta a croce 6x15 (50 pz.)
TSR960 Vite autofilettante testa piatta con impronta a croce 6x15 (50 pz.)
TSR961 Vite autofilettante testa Combi 5x15 (50 pz.)
TSR962 Vite autoperforante con testa a croce svasata piana 5x15 (50 pz.)
TSR963 Vite autoperforante con testa esagonale 5x15 (50 pz.)

+ Self-locking nuts and screw

Self-locking nuts and screw

CatalogNumber Description
TSR964 Dado zincato M6 autobloccante (50 pz.)
TSR965 Dado in acciaio inox M5 autobloccante (50 pz.)
TSR966 Vite zincata testa croce 6x12 autobloccante (50 pz.)

+ Zinc plated steel Nuts

Zinc plated steel Nuts

CatalogNumber Description
TSR967 Dado zincato M8 flangiato (50 pz.)
TSR968 Dado zincato M8 (50 pz.)
TSR969 Dado zincato M6 flangiato (50 pz.)
TSR970 Dado zincato M6 (50 pz.)
TSR971 Dado zincato M5 (50 pz.)

+ Zinc plated steel washers

Zinc plated steel washers

CatalogNumber Description
TSR977 Rondella zincata 8x24 (50 pz.)
TSR978 Rondella zincata 6x18 (50 pz.)

+ Caged nuts

Caged nuts

CatalogNumber Description
TSR972 Dado in gabbia zincopassivato M12 14x14 (50 pz.)
TSR973 Dado in gabbia zincopassivato M8 12,5x12,5 (50 pz.)
TSR974 Dado in gabbia zincopassivato M6 9,5x9,5 (50 pz.)
TSR975 Dado in gabbia zincopassivato M 8,3x8,3 (50 pz.)
TSR976 Dado in gabbia zincopassivato M5 8,3x8,3 (50 pz.)

+ Screws and caged nuts for TSR Side Walls

Screws and caged nuts for TSR Side Walls

CatalogNumber System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
TSR985 0 0 0 0 0 0 0 0 Viti e dadi gabbia per DRC
TSR986 0 0 0 0 0 0 0 0 Viti e dadi gabbia per DRC INOX

+ Zinc plated steel spacers

Zinc plated steel Nuts

CatalogNumber Description
TSR967 Dado zincato M8 flangiato (50 pz.)
TSR968 Dado zincato M8 (50 pz.)
TSR969 Dado zincato M6 flangiato (50 pz.)
TSR970 Dado zincato M6 (50 pz.)
TSR971 Dado zincato M5 (50 pz.)

+ Locking systems for TSR/TFR cabinets

Various Locking Systems

CatalogNumber System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
TSR905 0 0 0 0 0 0 0 0 Chiusura standard a cariglione con chiave doppia aletta 3 mm - Foto 1
TSR942 0 0 0 0 0 0 0 0 Chiusura standard a cariglione con chiave triangolare - Foto 2
TSR943 0 0 0 0 0 0 0 0 Chiusura inserto FIAT - Foto 3
TSR941 0 0 0 0 0 0 0 0 Chiusura maniglia a scomparsa chiave "D" 133 con copertura - Foto 4
TSR907 0 0 0 0 0 0 0 0 Chiusura maniglia a scomparsa chiave "E" 333 - Foto 5
TSR940 0 0 0 0 0 0 0 0 Chiusura maniglia a scomparsa con chiave "G" 9233 - Foto 6
TSR906 0 0 0 0 0 0 0 0 Chiusura maniglia esterna con chiave "E" 333 - Foto 7
TSR936 0 0 0 0 0 0 0 0 Chiusura maniglia a scomparsa con chiave FIAT - Foto 8
TSR937 0 0 0 0 0 0 0 0 Chiusura maniglia standard a cariglione

+ Locks for Boxes and Consoles

Various Locking Systems

CatalogNumber System Capacity No. Units No. Pieces No. Modules N° HE Width For Cabinets Height for Cabinets Voltage (V) Description
8000 0 0 0 0 0 0 0 0 Chiusura doppia aletta 3 mm in materiale plastico - Foto 1
8001 0 0 0 0 0 0 0 0 Chiusura a triangolo in materiale plastico - Foto 2
8002 0 0 0 0 0 0 0 0 Chiusura "Yale" in materiale plastico - Foto 3
8003 0 0 0 0 0 0 0 0 Chiusura a maniglia in materiale plastico - Foto 4
8004 0 0 0 0 0 0 0 0 Chiusura "Yale" in FE - Foto 5
8005 0 0 0 0 0 0 0 0 Chiusura a triangolo in FE - Foto 6
8006 0 0 0 0 0 0 0 0 Chiusura a maniglia in FE - Foto 7
8007 0 0 0 0 0 0 0 0 Chiusura FIAT in FE - Foto 8
8008 0 0 0 0 0 0 0 0 Chiusura DAIMLER in FE - Foto 9
8010 0 0 0 0 0 0 0 0 Chiusura doppia aletta 3 mm in acciaio A

AISI 304 Plinths, Bases, Plates


AISI 304 Plinths, Bases, Plates

AISI 304 External/Internal Access


AISI 304 External Internal Access
