Pendant Systems

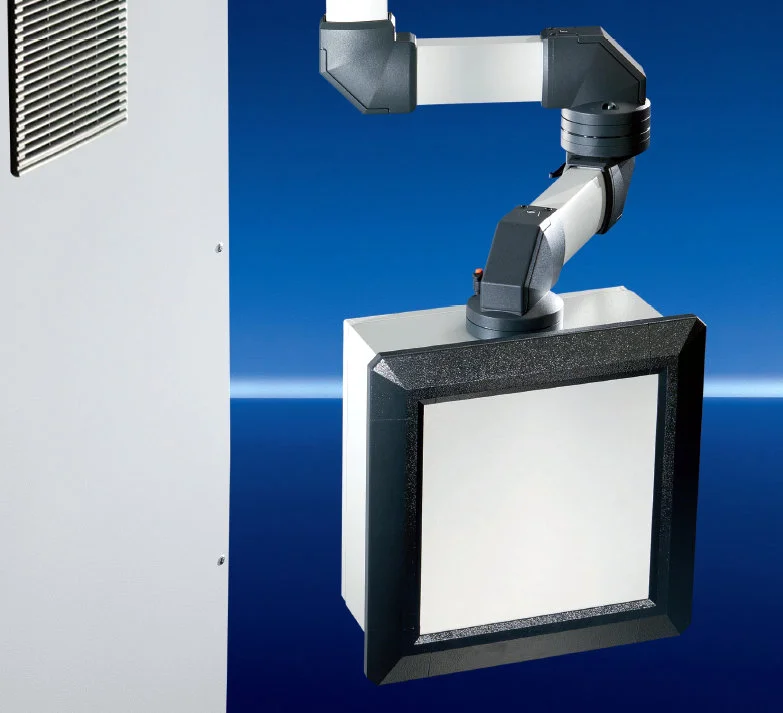

HLT Suspension System
Heavy duty operator interface suspension system for automation control.
To ask for pricing for this product category, please contact us by email at : tecno@tecnomatic.com
Pendant Boxes (DCF)
Operartor enclosure , complete with front plate and front aluminum frame.
Completely welded structure, steel-metal thickness 15/10, with openable rear door anodized natural aluminium front panel with thickness 20/10, painted aluminium profile frame at the perimeter.
Painting RAL 7035/7016.
+ Hanging control boxes - DCF range
| CatalogNumber | Height (mm) | Width (mm) | Depth (mm) | H1 | H3 | H4 | W1 | L3 | P1 | Rear door | B4 | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCF 4420/6 | 400 | 400 | 200 | 450 | 342 | 315 | 450 | 342 | 221 | 1 | 315 | 11.5 |
| DCF 4420/8 | 400 | 400 | 200 | 450 | 342 | 315 | 450 | 342 | 221 | 1 | 315 | 11.5 |
| DCF 4520/6 | 500 | 400 | 200 | 550 | 442 | 415 | 450 | 342 | 221 | 1 | 315 | 13 |
| DCF 4520/8 | 500 | 400 | 200 | 550 | 442 | 415 | 450 | 342 | 221 | 1 | 315 | 13 |
| DCF 4620/6 | 600 | 400 | 200 | 650 | 542 | 515 | 450 | 342 | 221 | 1 | 315 | 14.5 |
| DCF 4620/8 | 600 | 400 | 200 | 650 | 542 | 515 | 450 | 342 | 221 | 1 | 315 | 14.5 |
| DCF 5520/6 | 500 | 500 | 200 | 550 | 442 | 415 | 550 | 442 | 221 | 1 | 415 | 15 |
| DCF 5520/8 | 500 | 500 | 200 | 550 | 442 | 415 | 550 | 442 | 221 | 1 | 415 | 15 |
| DCF 5735/6 | 700 | 500 | 350 | 750 | 642 | 615 | 550 | 442 | 371 | 1 | 415 | 25 |
| DCF 5735/8 | 700 | 500 | 350 | 750 | 642 | 615 | 550 | 442 | 371 | 1 | 415 | 25 |
| DCF 6635/6 | 600 | 600 | 350 | 650 | 542 | 515 | 650 | 542 | 371 | 1 | 515 | 26 |
| DCF 6635/8 | 600 | 600 | 350 | 650 | 542 | 515 | 650 | 542 | 371 | 1 | 515 | 26 |
Pendant Boxes (DPH)
Completely welded structure, steel-metal thickness 15/10, with openable rear door, anodized natural aluminium front panel with thickness 20/10, painted aluminium profile handle.<br>
Painting RAL 7035/6033.
+ Hanging control boxes - DPH range
| CatalogNumber | Height (mm) | Width (mm) | Depth (mm) | H2 | H3 | W1 | L3 | P1 | B2 | B4 | Rear Doors | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DPH 3620/6 | 200 | 360 | 155 | 160 | 142 | 390 | 302 | 153 | 240 | 260 | 1 | 8 |
| DPH 3620/8 | 200 | 360 | 155 | 160 | 142 | 390 | 302 | 153 | 240 | 260 | 1 | 8 |
| DPH 4430/6 | 300 | 440 | 210 | 260 | 242 | 470 | 382 | 208 | 320 | 340 | 1 | 10 |
| DPH 4430/8 | 300 | 440 | 210 | 260 | 242 | 470 | 382 | 208 | 320 | 340 | 1 | 10 |
| DPH 4438/6 | 380 | 440 | 210 | 340 | 322 | 470 | 382 | 208 | 320 | 340 | 1 | 12 |
| DPH 4438/8 | 380 | 440 | 210 | 340 | 322 | 470 | 382 | 208 | 320 | 340 | 1 | 12 |
| DPH 5650/6 | 500 | 560 | 210 | 460 | 442 | 590 | 502 | 208 | 440 | 460 | 1 | 15 |
| DPH 5650/8 | 500 | 560 | 210 | 460 | 442 | 590 | 502 | 208 | 440 | 460 | 1 | 15 |
| DPH 6638/6 | 380 | 660 | 210 | 340 | 322 | 690 | 602 | 208 | 540 | 460 | 1 | 14 |
| DPH 6638/8 | 380 | 660 | 210 | 340 | 322 | 690 | 602 | 208 | 540 | 460 | 1 | 14 |
