Series

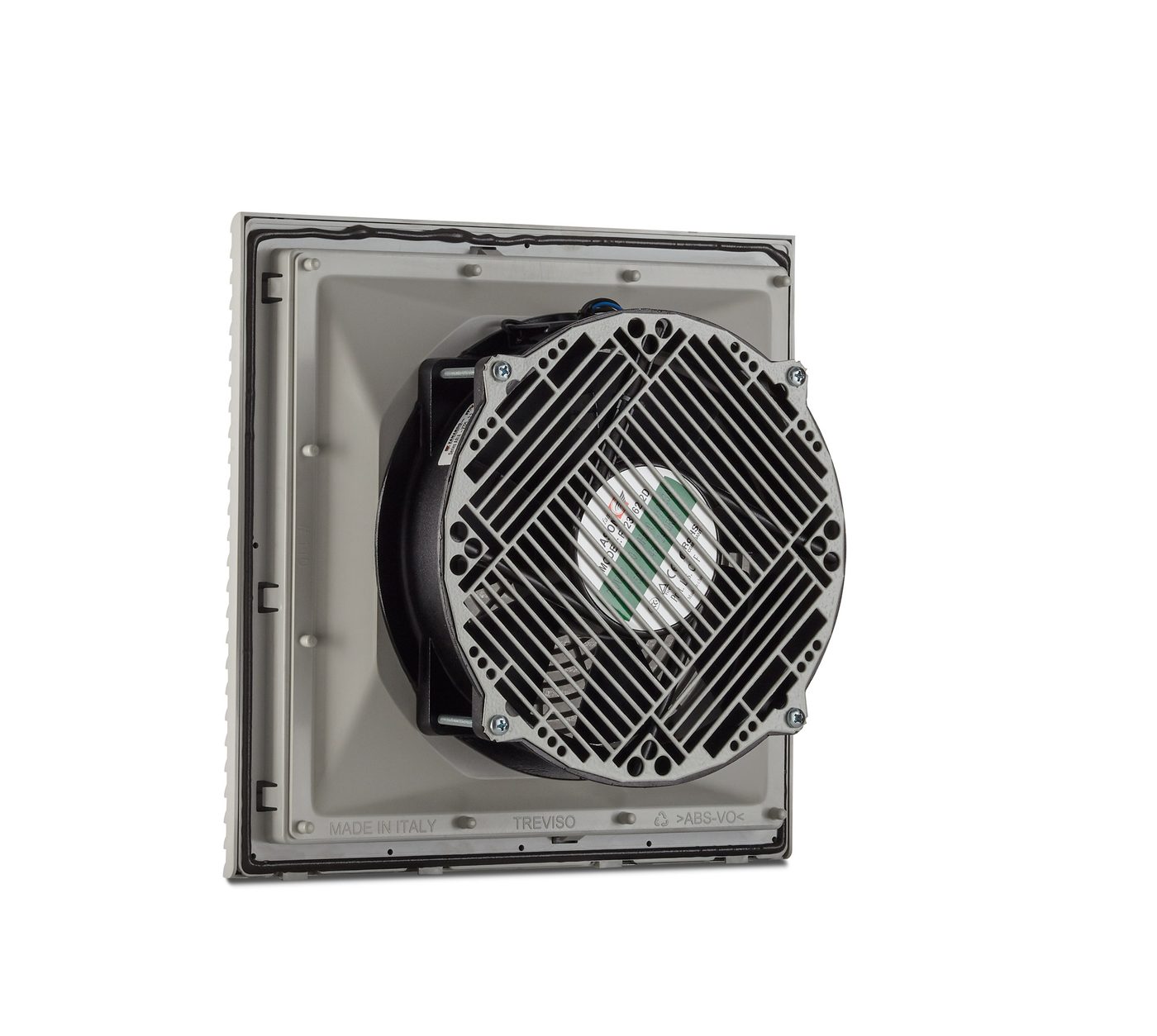

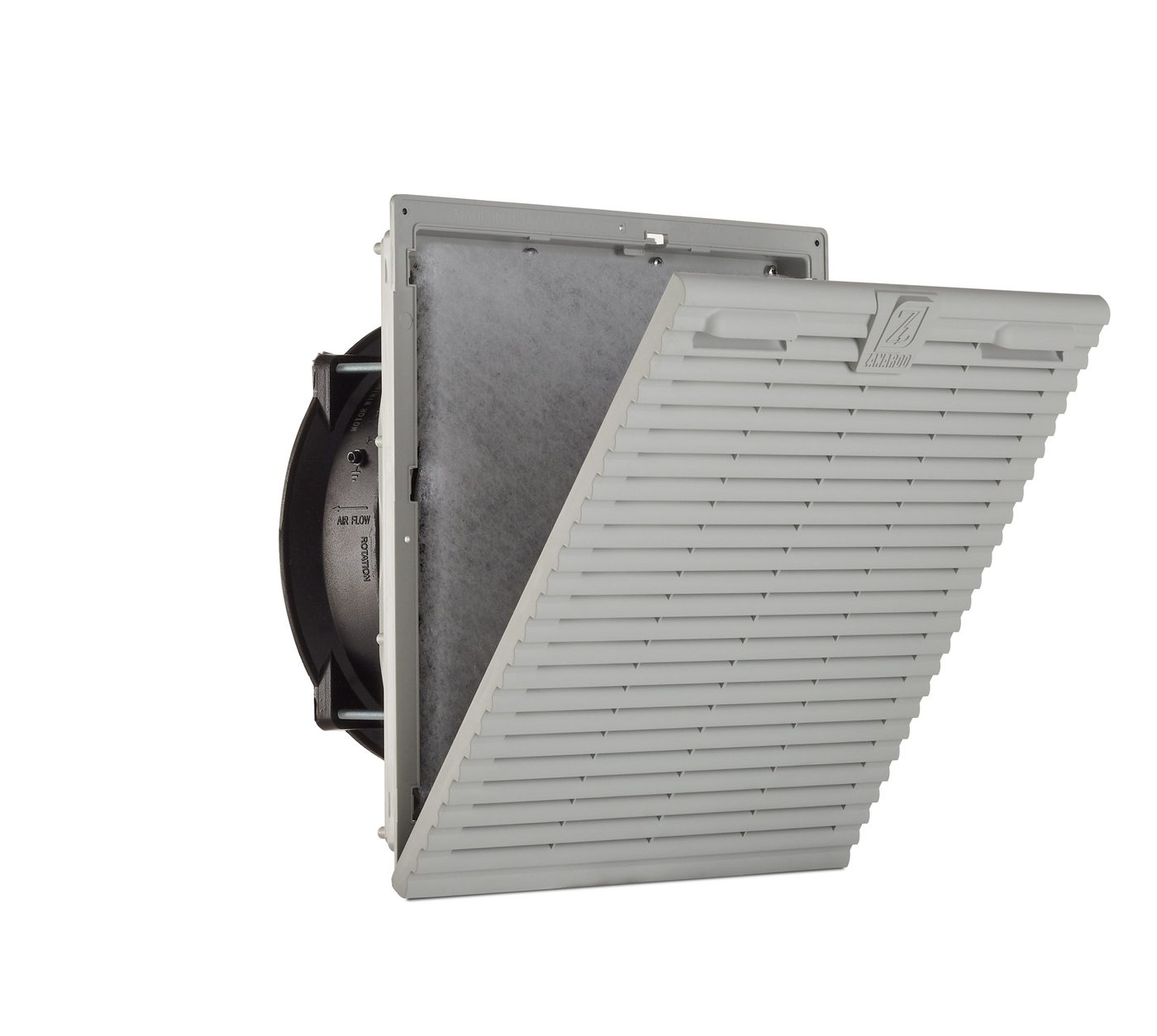

ARIAV — Fan + Filter Assembly
Wall-mount fan + filter for cabinet ventilation · 118–589 CFM · 150 / 250 / 325 mm cutouts · 24V DC / 115V / 230V
Zanardo ARIAV fan + filter assemblies for forced-air ventilation of sealed electrical cabinets. ABS UL94-V0 housing in RAL 7035, replaceable filter element, IP54 rated. Three frame sizes — 150 mm, 250 mm, 325 mm — match standard ARIAF outlet-grille cutouts. Pair with a VE protective hood when installed in outdoor or wash-down areas.
Key Features
- ▸ABS UL94-V0 housing, RAL 7035
- ▸IP54 with filter element installed
- ▸Replaceable filter media
- ▸150 / 250 / 325 mm frame sizes
- ▸24V DC and AC mains voltages
- ▸Pairs with ARIAF outlet grille for through-flow ventilation
Spec Table
ARIAV — 9 models
| Box SKU | Airflow (free / with filter) | Voltage / Phase | Cutout (mm) | Dimensions H × W × D (mm) |
|---|---|---|---|---|
| ARIAV-150-1W | 118 / 92 CFM (200 / 156 m³/hr) | 230 V / 1-phase / 50-60 Hz | 150 × 150 | 150 × 150 × 60 |
| ARIAV-150-1G | 118 / 92 CFM (200 / 156 m³/hr) | 230 V / 1-phase / 50-60 Hz | 150 × 150 | 150 × 150 × 60 |
| ARIAV-150-2W | 118 / 92 CFM (200 / 156 m³/hr) | 115 V / 1-phase / 50-60 Hz | 150 × 150 | 150 × 150 × 60 |
| ARIAV-150-3W | 138 / 104 CFM (235 / 176 m³/hr) | 24 V DC | 150 × 150 | 150 × 150 × 60 |
| ARIAV-250-1W | 200 / 156 CFM (340 / 265 m³/hr) | 230 V / 1-phase / 50-60 Hz | 250 × 250 | 250 × 250 × 105 |
| ARIAV-250-2W | 200 / 156 CFM (340 / 265 m³/hr) | 115 V / 1-phase / 50-60 Hz | 250 × 250 | 250 × 250 × 105 |
| ARIAV-325-1W | 589 / 459 CFM (1000 / 780 m³/hr) | 230 V / 1-phase / 50-60 Hz | 325 × 325 | 325 × 325 × 117 |
| ARIAV-325-3W | 589 / 459 CFM (1000 / 780 m³/hr) | 115 V / 1-phase / 50-60 Hz | 325 × 325 | 325 × 325 × 117 |
| ARIAV-325-4W | 589 / 459 CFM (1000 / 780 m³/hr) | 24 V DC | 325 × 325 | 325 × 325 × 117 |
Pair every ARIAV inlet fan with a matching ARIAF outlet grille on the opposite cabinet face for through-flow ventilation.
Detailed specifications available on request — contact us for the current data sheet.
Use Cases
Typical Applications
Sealed cabinets needing ventilation
Forced-air exchange in cabinets that don't justify a full AC unit.
Heat-stressed control panels
Removes heat from drives and contactors below the 35 °C threshold.
Filtered ventilation in dusty environments
Filter element prevents dust ingress while moving air.
