Stainless · Cabinet Series

DRC-A — Modular Cabinets

Stainless modular cabinet system · 1.5 mm AISI 304 drawn-column frame · IP55 / IK10 · 100° door opening

UL E238294IP55IK10CESI 90 kACEREACHRoHSTÜVRINA

Material

1.5 mm AISI 304 (frame) · 1.8 mm AISI 304 (door)

Rating

IP55 / EN 62208 / EN 61439-1

Impact

IK10

Brand

Zanardo

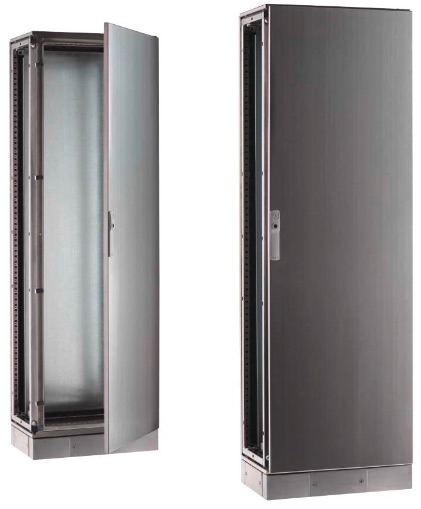

The DRC-A is Zanardo's flagship stainless modular freestanding cabinet — a 1.5 mm AISI 304 drawn-column bearing frame on die-cast aluminium joints with a 25 mm pitch drilling scheme. Solid or tempered-glass doors, adjustable internal plate, and a full accessory ladder (plinths, side panels, rain roofs, dividing elements). Heights 1400–2200 mm across widths 400–1600 mm and depths 400–1000 mm. AISI 316 on request.

Key Features

1.5 mm AISI 304 drawn-column bearing frame, die-cast aluminium joints
1.8 mm AISI 304 solid door; tempered-glass door option (DRCPA)
2 mm galvanised (Sendzimir) internal plate, adjustable depth
100° standard opening, reversible hinges, double-comb central locking
Fine scotch-brite medium-satin 240-grit finish; AISI 316 on request

Standards & Approvals

IP55 EN 62208EN 61439-1UL Type 1/12 (Std 508)NEMA 1/12 (Std 250)CESI 90 kARoHS 2011/65/CE

Specifications

Catalog Size Matrix

Height 1410 mm

Cabinet SKU	Dimensions (mm) H × W × D	Dimensions (in)	Doors	Solid Door	Glass Door	Back Panel	Plinth H100	Plinth H200
DRC165A	1410 × 600 × 400	55.5 × 23.6 × 15.7	1	VFR801A	VFR801PA	VFR811A	DRC601A	DRC621A
DRC168A	1410 × 600 × 500	55.5 × 23.6 × 19.7	1	VFR801A	VFR801PA	VFR811A	DRC602A	DRC622A
DRC171A	1410 × 600 × 600	55.5 × 23.6 × 23.6	1	VFR801A	VFR801PA	VFR811A	DRC603A	DRC623A
DRC166A	1410 × 800 × 400	55.5 × 31.5 × 15.7	1	VFR802A	VFR802PA	VFR812A	DRC606A	DRC626A
DRC169A	1410 × 800 × 500	55.5 × 31.5 × 19.7	1	VFR802A	VFR802PA	VFR812A	DRC607A	DRC627A
DRC172A	1410 × 800 × 600	55.5 × 31.5 × 23.6	1	VFR802A	VFR802PA	VFR812A	DRC608A	DRC628A
DRC167A	1410 × 1200 × 400	55.5 × 47.2 × 15.7	2	VFR806A	VFR806PA	VFR816A	DRC616A	DRC636A
DRC170A	1410 × 1200 × 500	55.5 × 47.2 × 19.7	2	VFR806A	VFR806PA	VFR816A	DRC617A	DRC637A
DRC173A	1410 × 1200 × 600	55.5 × 47.2 × 23.6	2	VFR806A	VFR806PA	VFR816A	DRC618A	DRC638A

Height 1610 mm

Cabinet SKU	Dimensions (mm) H × W × D	Dimensions (in)	Doors	Solid Door	Glass Door	Back Panel	Plinth H100	Plinth H200
DRC174A	1610 × 400 × 400	63.4 × 15.7 × 15.7	1	VFR808A	—	VFR818A	DRC557A	DRC562A
DRC179A	1610 × 400 × 500	63.4 × 15.7 × 19.7	1	VFR808A	—	VFR818A	DRC558A	DRC563A
DRC184A	1610 × 400 × 600	63.4 × 15.7 × 23.6	1	VFR808A	—	VFR818A	DRC559A	DRC564A
DRC175A	1610 × 600 × 400	63.4 × 23.6 × 15.7	1	VFR803A	VFR803PA	VFR813A	DRC601A	DRC621A
DRC180A	1610 × 600 × 500	63.4 × 23.6 × 19.7	1	VFR803A	VFR803PA	VFR813A	DRC602A	DRC622A
DRC185A	1610 × 600 × 600	63.4 × 23.6 × 23.6	1	VFR803A	VFR803PA	VFR813A	DRC603A	DRC623A
DRC176A	1610 × 800 × 400	63.4 × 31.5 × 15.7	1	VFR804A	VFR804PA	VFR814A	DRC606A	DRC626A
DRC181A	1610 × 800 × 500	63.4 × 31.5 × 19.7	1	VFR804A	VFR804PA	VFR814A	DRC607A	DRC627A
DRC186A	1610 × 800 × 600	63.4 × 31.5 × 23.6	1	VFR804A	VFR804PA	VFR814A	DRC608A	DRC628A
DRC177A	1610 × 1000 × 400	63.4 × 39.4 × 15.7	1	VFR805A	VFR805PA	VFR815A	DRC611A	DRC631A
DRC182A	1610 × 1000 × 500	63.4 × 39.4 × 19.7	1	VFR805A	VFR805PA	VFR815A	DRC612A	DRC632A
DRC187A	1610 × 1000 × 600	63.4 × 39.4 × 23.6	1	VFR805A	VFR805PA	VFR815A	DRC613A	DRC633A
DRC178A	1610 × 1200 × 400	63.4 × 47.2 × 15.7	2	VFR807A	VFR807PA	VFR817A	DRC616A	DRC636A
DRC183A	1610 × 1200 × 500	63.4 × 47.2 × 19.7	2	VFR807A	VFR807PA	VFR817A	DRC617A	DRC637A
DRC188A	1610 × 1200 × 600	63.4 × 47.2 × 23.6	2	VFR807A	VFR807PA	VFR817A	DRC618A	DRC638A

Height 1810 mm

Cabinet SKU	Dimensions (mm) H × W × D	Dimensions (in)	Doors	Solid Door	Glass Door	Back Panel	Plinth H100	Plinth H200
DRC150A	1810 × 400 × 400	71.3 × 15.7 × 15.7	1	DRC798A	—	DRC793A	DRC557A	DRC562A
DRC151A	1810 × 400 × 500	71.3 × 15.7 × 19.7	1	DRC798A	—	DRC793A	DRC558A	DRC563A
DRC152A	1810 × 400 × 600	71.3 × 15.7 × 23.6	1	DRC798A	—	DRC793A	DRC559A	DRC564A
DRC153A	1810 × 400 × 800	71.3 × 15.7 × 31.5	1	DRC798A	—	DRC793A	DRC560A	DRC565A
DRC154A	1810 × 400 × 1000	71.3 × 15.7 × 39.4	1	DRC798A	—	DRC793A	DRC561A	DRC566A
DRC1A	1810 × 600 × 400	71.3 × 23.6 × 15.7	1	DRC801A	DRC801PA	DRC811A	DRC601A	DRC621A
DRC2A	1810 × 600 × 500	71.3 × 23.6 × 19.7	1	DRC801A	DRC801PA	DRC811A	DRC602A	DRC622A
DRC3A	1810 × 600 × 600	71.3 × 23.6 × 23.6	1	DRC801A	DRC801PA	DRC811A	DRC603A	DRC623A
DRC4A	1810 × 600 × 800	71.3 × 23.6 × 31.5	1	DRC801A	DRC801PA	DRC811A	DRC604A	DRC624A
DRC5A	1810 × 600 × 1000	71.3 × 23.6 × 39.4	1	DRC801A	DRC801PA	DRC811A	DRC605A	DRC625A
DRC6A	1810 × 800 × 400	71.3 × 31.5 × 15.7	1	DRC802A	DRC802PA	DRC812A	DRC606A	DRC626A
DRC7A	1810 × 800 × 500	71.3 × 31.5 × 19.7	1	DRC802A	DRC802PA	DRC812A	DRC607A	DRC627A
DRC8A	1810 × 800 × 600	71.3 × 31.5 × 23.6	1	DRC802A	DRC802PA	DRC812A	DRC608A	DRC628A
DRC9A	1810 × 800 × 800	71.3 × 31.5 × 31.5	1	DRC802A	DRC802PA	DRC812A	DRC609A	DRC629A
DRC10A	1810 × 800 × 1000	71.3 × 31.5 × 39.4	1	DRC802A	DRC802PA	DRC812A	DRC610A	DRC630A
DRC11A	1810 × 1000 × 400	71.3 × 39.4 × 15.7	1	DRC803A	DRC803PA	DRC813A	DRC611A	DRC631A
DRC12A	1810 × 1000 × 500	71.3 × 39.4 × 19.7	1	DRC803A	DRC803PA	DRC813A	DRC612A	DRC632A
DRC13A	1810 × 1000 × 600	71.3 × 39.4 × 23.6	1	DRC803A	DRC803PA	DRC813A	DRC613A	DRC633A
DRC14A	1810 × 1000 × 800	71.3 × 39.4 × 31.5	1	DRC803A	DRC803PA	DRC813A	DRC614A	DRC634A
DRC15A	1810 × 1000 × 1000	71.3 × 39.4 × 39.4	1	DRC803A	DRC803PA	DRC813A	DRC615A	DRC635A
DRC16A	1810 × 1200 × 400	71.3 × 47.2 × 15.7	2	DRC804A	DRC804PA	DRC814A	DRC616A	DRC636A
DRC17A	1810 × 1200 × 500	71.3 × 47.2 × 19.7	2	DRC804A	DRC804PA	DRC814A	DRC617A	DRC637A
DRC18A	1810 × 1200 × 600	71.3 × 47.2 × 23.6	2	DRC804A	DRC804PA	DRC814A	DRC618A	DRC638A
DRC19A	1810 × 1200 × 800	71.3 × 47.2 × 31.5	2	DRC804A	DRC804PA	DRC814A	DRC619A	DRC639A
DRC20A	1810 × 1200 × 1000	71.3 × 47.2 × 39.4	2	DRC804A	DRC804PA	DRC814A	DRC620A	DRC640A
DRC41A	1810 × 1400 × 400	71.3 × 55.1 × 15.7	2	DRC809A	DRC809PA	DRC819A	DRC641A	DRC651A
DRC42A	1810 × 1400 × 500	71.3 × 55.1 × 19.7	2	DRC809A	DRC809PA	DRC819A	DRC642A	DRC652A
DRC43A	1810 × 1400 × 600	71.3 × 55.1 × 23.6	2	DRC809A	DRC809PA	DRC819A	DRC643A	DRC653A
DRC44A	1810 × 1400 × 800	71.3 × 55.1 × 31.5	2	DRC809A	DRC809PA	DRC819A	DRC644A	DRC654A
DRC46A	1810 × 1600 × 400	71.3 × 63.0 × 15.7	2	DRC810A	DRC810PA	DRC820A	DRC646A	DRC656A
DRC47A	1810 × 1600 × 500	71.3 × 63.0 × 19.7	2	DRC810A	DRC810PA	DRC820A	DRC647A	DRC657A
DRC48A	1810 × 1600 × 600	71.3 × 63.0 × 23.6	2	DRC810A	DRC810PA	DRC820A	DRC648A	DRC658A
DRC49A	1810 × 1600 × 800	71.3 × 63.0 × 31.5	2	DRC810A	DRC810PA	DRC820A	DRC649A	DRC659A

Height 2010 mm

Cabinet SKU	Dimensions (mm) H × W × D	Dimensions (in)	Doors	Solid Door	Glass Door	Back Panel	Plinth H100	Plinth H200
DRC155A	2010 × 400 × 400	79.1 × 15.7 × 15.7	1	DRC799A	—	DRC795A	DRC557A	DRC562A
DRC156A	2010 × 400 × 500	79.1 × 15.7 × 19.7	1	DRC799A	—	DRC795A	DRC558A	DRC563A
DRC157A	2010 × 400 × 600	79.1 × 15.7 × 23.6	1	DRC799A	—	DRC795A	DRC559A	DRC564A
DRC158A	2010 × 400 × 800	79.1 × 15.7 × 31.5	1	DRC799A	—	DRC795A	DRC560A	DRC565A
DRC159A	2010 × 400 × 1000	79.1 × 15.7 × 39.4	1	DRC799A	—	DRC795A	DRC561A	DRC566A
DRC21A	2010 × 600 × 400	79.1 × 23.6 × 15.7	1	DRC805A	DRC805PA	DRC815A	DRC601A	DRC621A
DRC22A	2010 × 600 × 500	79.1 × 23.6 × 19.7	1	DRC805A	DRC805PA	DRC815A	DRC602A	DRC622A
DRC23A	2010 × 600 × 600	79.1 × 23.6 × 23.6	1	DRC805A	DRC805PA	DRC815A	DRC603A	DRC623A
DRC24A	2010 × 600 × 800	79.1 × 23.6 × 31.5	1	DRC805A	DRC805PA	DRC815A	DRC604A	DRC624A
DRC25A	2010 × 600 × 1000	79.1 × 23.6 × 39.4	1	DRC805A	DRC805PA	DRC815A	DRC605A	DRC625A
DRC26A	2010 × 800 × 400	79.1 × 31.5 × 15.7	1	DRC806A	DRC806PA	DRC816A	DRC606A	DRC626A
DRC27A	2010 × 800 × 500	79.1 × 31.5 × 19.7	1	DRC806A	DRC806PA	DRC816A	DRC607A	DRC627A
DRC28A	2010 × 800 × 600	79.1 × 31.5 × 23.6	1	DRC806A	DRC806PA	DRC816A	DRC608A	DRC628A
DRC29A	2010 × 800 × 800	79.1 × 31.5 × 31.5	1	DRC806A	DRC806PA	DRC816A	DRC609A	DRC629A
DRC30A	2010 × 800 × 1000	79.1 × 31.5 × 39.4	1	DRC806A	DRC806PA	DRC816A	DRC610A	DRC630A
DRC31A	2010 × 1000 × 400	79.1 × 39.4 × 15.7	1	DRC807A	DRC807PA	DRC817A	DRC611A	DRC631A
DRC32A	2010 × 1000 × 500	79.1 × 39.4 × 19.7	1	DRC807A	DRC807PA	DRC817A	DRC612A	DRC632A
DRC33A	2010 × 1000 × 600	79.1 × 39.4 × 23.6	1	DRC807A	DRC807PA	DRC817A	DRC613A	DRC633A
DRC34A	2010 × 1000 × 800	79.1 × 39.4 × 31.5	1	DRC807A	DRC807PA	DRC817A	DRC614A	DRC634A
DRC35A	2010 × 1000 × 1000	79.1 × 39.4 × 39.4	1	DRC807A	DRC807PA	DRC817A	DRC615A	DRC635A
DRC36A	2010 × 1200 × 400	79.1 × 47.2 × 15.7	2	DRC808A	DRC808PA	DRC818A	DRC616A	DRC636A
DRC37A	2010 × 1200 × 500	79.1 × 47.2 × 19.7	2	DRC808A	DRC808PA	DRC818A	DRC617A	DRC637A
DRC38A	2010 × 1200 × 600	79.1 × 47.2 × 23.6	2	DRC808A	DRC808PA	DRC818A	DRC618A	DRC638A
DRC39A	2010 × 1200 × 800	79.1 × 47.2 × 31.5	2	DRC808A	DRC808PA	DRC818A	DRC619A	DRC639A
DRC40A	2010 × 1200 × 1000	79.1 × 47.2 × 39.4	2	DRC808A	DRC808PA	DRC818A	DRC620A	DRC640A
DRC51A	2010 × 1400 × 400	79.1 × 55.1 × 15.7	2	DRC809/2A	DRC809/2PA	DRC821A	DRC641A	DRC651A
DRC52A	2010 × 1400 × 500	79.1 × 55.1 × 19.7	2	DRC809/2A	DRC809/2PA	DRC821A	DRC642A	DRC652A
DRC53A	2010 × 1400 × 600	79.1 × 55.1 × 23.6	2	DRC809/2A	DRC809/2PA	DRC821A	DRC643A	DRC653A
DRC54A	2010 × 1400 × 800	79.1 × 55.1 × 31.5	2	DRC809/2A	DRC809/2PA	DRC821A	DRC644A	DRC654A
DRC55A	2010 × 1400 × 1000	79.1 × 55.1 × 39.4	2	DRC809/2A	DRC809/2PA	DRC821A	DRC645A	DRC655A
DRC56A	2010 × 1600 × 400	79.1 × 63.0 × 15.7	2	DRC810/2A	DRC810/2PA	DRC822A	DRC646A	DRC656A
DRC57A	2010 × 1600 × 500	79.1 × 63.0 × 19.7	2	DRC810/2A	DRC810/2PA	DRC822A	DRC647A	DRC657A
DRC58A	2010 × 1600 × 600	79.1 × 63.0 × 23.6	2	DRC810/2A	DRC810/2PA	DRC822A	DRC648A	DRC658A
DRC59A	2010 × 1600 × 800	79.1 × 63.0 × 31.5	2	DRC810/2A	DRC810/2PA	DRC822A	DRC649A	DRC659A
DRC60A	2010 × 1600 × 1000	79.1 × 63.0 × 39.4	2	DRC810/2A	DRC810/2PA	DRC822A	DRC650A	DRC660A

Height 2210 mm

Cabinet SKU	Dimensions (mm) H × W × D	Dimensions (in)	Doors	Solid Door	Glass Door	Back Panel	Plinth H100	Plinth H200
DRC160A	2210 × 400 × 400	87.0 × 15.7 × 15.7	1	DRC800A	—	DRC797A	DRC557A	DRC562A
DRC161A	2210 × 400 × 500	87.0 × 15.7 × 19.7	1	DRC800A	—	DRC797A	DRC558A	DRC563A
DRC162A	2210 × 400 × 600	87.0 × 15.7 × 23.6	1	DRC800A	—	DRC797A	DRC559A	DRC564A
DRC163A	2210 × 400 × 800	87.0 × 15.7 × 31.5	1	DRC800A	—	DRC797A	DRC560A	DRC565A
DRC164A	2210 × 400 × 1000	87.0 × 15.7 × 39.4	1	DRC800A	—	DRC797A	DRC561A	DRC566A
DRC61A	2210 × 600 × 400	87.0 × 23.6 × 15.7	1	DRC810/3A	DRC810/3PA	DRC823A	DRC601A	DRC621A
DRC62A	2210 × 600 × 500	87.0 × 23.6 × 19.7	1	DRC810/3A	DRC810/3PA	DRC823A	DRC602A	DRC622A
DRC63A	2210 × 600 × 600	87.0 × 23.6 × 23.6	1	DRC810/3A	DRC810/3PA	DRC823A	DRC603A	DRC623A
DRC64A	2210 × 600 × 800	87.0 × 23.6 × 31.5	1	DRC810/3A	DRC810/3PA	DRC823A	DRC604A	DRC624A
DRC65A	2210 × 600 × 1000	87.0 × 23.6 × 39.4	1	DRC810/3A	DRC810/3PA	DRC823A	DRC605A	DRC625A
DRC66A	2210 × 800 × 400	87.0 × 31.5 × 15.7	1	DRC810/4A	DRC810/4PA	DRC824A	DRC606A	DRC626A
DRC67A	2210 × 800 × 500	87.0 × 31.5 × 19.7	1	DRC810/4A	DRC810/4PA	DRC824A	DRC607A	DRC627A
DRC68A	2210 × 800 × 600	87.0 × 31.5 × 23.6	1	DRC810/4A	DRC810/4PA	DRC824A	DRC608A	DRC628A
DRC69A	2210 × 800 × 800	87.0 × 31.5 × 31.5	1	DRC810/4A	DRC810/4PA	DRC824A	DRC609A	DRC629A
DRC70A	2210 × 800 × 1000	87.0 × 31.5 × 39.4	1	DRC810/4A	DRC810/4PA	DRC824A	DRC610A	DRC630A
DRC71A	2210 × 1000 × 400	87.0 × 39.4 × 15.7	1	DRC810/5A	DRC810/5PA	DRC825A	DRC611A	DRC631A
DRC72A	2210 × 1000 × 500	87.0 × 39.4 × 19.7	1	DRC810/5A	DRC810/5PA	DRC825A	DRC612A	DRC632A
DRC73A	2210 × 1000 × 600	87.0 × 39.4 × 23.6	1	DRC810/5A	DRC810/5PA	DRC825A	DRC613A	DRC633A
DRC74A	2210 × 1000 × 800	87.0 × 39.4 × 31.5	1	DRC810/5A	DRC810/5PA	DRC825A	DRC614A	DRC634A
DRC75A	2210 × 1000 × 1000	87.0 × 39.4 × 39.4	1	DRC810/5A	DRC810/5PA	DRC825A	DRC615A	DRC635A
DRC76A	2210 × 1200 × 400	87.0 × 47.2 × 15.7	2	DRC810/6A	DRC810/6PA	DRC826A	DRC616A	DRC636A
DRC77A	2210 × 1200 × 500	87.0 × 47.2 × 19.7	2	DRC810/6A	DRC810/6PA	DRC826A	DRC617A	DRC637A
DRC78A	2210 × 1200 × 600	87.0 × 47.2 × 23.6	2	DRC810/6A	DRC810/6PA	DRC826A	DRC618A	DRC638A
DRC79A	2210 × 1200 × 800	87.0 × 47.2 × 31.5	2	DRC810/6A	DRC810/6PA	DRC826A	DRC619A	DRC639A
DRC80A	2210 × 1200 × 1000	87.0 × 47.2 × 39.4	2	DRC810/6A	DRC810/6PA	DRC826A	DRC620A	DRC640A
DRC82A	2210 × 1400 × 500	87.0 × 55.1 × 19.7	2	DRC810/7A	DRC810/7PA	DRC827A	DRC642A	DRC652A
DRC83A	2210 × 1400 × 600	87.0 × 55.1 × 23.6	2	DRC810/7A	DRC810/7PA	DRC827A	DRC643A	DRC653A
DRC84A	2210 × 1400 × 800	87.0 × 55.1 × 31.5	2	DRC810/7A	DRC810/7PA	DRC827A	DRC644A	DRC654A
DRC87A	2210 × 1600 × 500	87.0 × 63.0 × 19.7	2	DRC810/8A	DRC810/8PA	DRC828A	DRC647A	DRC657A
DRC88A	2210 × 1600 × 600	87.0 × 63.0 × 23.6	2	DRC810/8A	DRC810/8PA	DRC828A	DRC648A	DRC658A
DRC89A	2210 × 1600 × 800	87.0 × 63.0 × 31.5	2	DRC810/8A	DRC810/8PA	DRC828A	DRC649A	DRC659A

Cabinet SKU = DRC-A complete unit (solid door, internal plate, back panel). Glass-door variant replaces the door per the DRCPA column. Plinths, side panels, rain roofs and dividing elements ordered separately (AISI 304). Source: Zanardo Catalog pp. 112–120.

AISI 316L and UL/CSA marking on request. Contact for current availability and quote.

Source: Zanardo Catalog pp. 112–120 (DRC-A modular cabinets + accessories) · Brochure PDF

Applications

Where It Fits

Food & Beverage

Wash-down production lines requiring AISI 304 corrosion resistance and hygienic surfaces.

Pharmaceutical

Cleanroom-adjacent control rooms where painted steel is not permitted.

Power Distribution

Main and sub-main switchboards up to 90 kA short-circuit (CESI verified).

Marine & Offshore

Salt-air installations; AISI 316L upgrade for direct marine exposure.

Get a Stainless Quote

AISI 304 & 316L on Quote

Most stainless families are quoted to spec — including AISI 316L marine-grade upgrades. Call for current size availability, lead times, and configuration support.
