Stainless · Cabinet Series
VFR-A — Closed-Side Cabinets
Stainless closed-side monobloc cabinet · welded 1.5 mm AISI 304 side panels · IP55 / IK10
Material
1.5 mm AISI 304 stainless · 2.5 mm galvanised internal plate
Rating
IP55 / EN 62208 / EN 61439-1
Impact
IK10
Brand
Zanardo

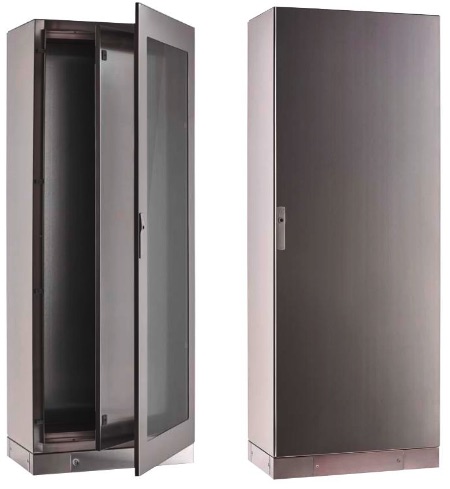

The VFR-A is a closed-side monobloc stainless cabinet: 1.5 mm AISI 304 welded side panels, roof and base with internal profiles on a 25 mm pitch drilling scheme. Solid or tempered-glass door (vertical configurations) with a 2.5 mm galvanised internal plate on sliding guides. Heights 1400–2000 mm; the wide QO-style 2-door range adds 600–1000 mm tall horizontal cabinets. AISI 316 on request.
Key Features
- 1.5 mm AISI 304 welded monobloc with closed side panels
- Internal profiles on 25 mm pitch; adjustable-depth front-installation plate
- Solid door standard; tempered-glass door on vertical configurations
- 100° opening, reversible hinges, double-comb central locking
- Fine scotch-brite 240-grit finish; AISI 316 on request
Standards & Approvals
Specifications
Catalog Size Matrix
Height 1400 mm
| Cabinet SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Solid Door | Glass Door | Back Panel | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|---|---|---|
| VFR21A | 1400 × 600 × 400 | 55.1 × 23.6 × 15.7 | 1 | VFR801A | VFR801PA | VFR811A | DRC601A | DRC621A |
| VFR22A | 1400 × 800 × 400 | 55.1 × 31.5 × 15.7 | 1 | VFR802A | VFR802PA | VFR812A | DRC606A | DRC626A |
Height 1600 mm
| Cabinet SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Solid Door | Glass Door | Back Panel | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|---|---|---|
| VFR23A | 1600 × 600 × 400 | 63.0 × 23.6 × 15.7 | 1 | VFR803A | VFR803PA | VFR813A | DRC601A | DRC621A |
| VFR24A | 1600 × 800 × 400 | 63.0 × 31.5 × 15.7 | 1 | VFR804A | VFR804PA | VFR814A | DRC606A | DRC626A |
| VFR25A | 1600 × 1000 × 400 | 63.0 × 39.4 × 15.7 | 1 | VFR805A | VFR805PA | VFR815A | DRC611A | DRC631A |
Height 1800 mm
| Cabinet SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Solid Door | Glass Door | Back Panel | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|---|---|---|
| VFR26A | 1800 × 600 × 400 | 70.9 × 23.6 × 15.7 | 1 | DRC801A | DRC801PA | DRC811A | DRC601A | DRC621A |
| VFR28A | 1800 × 800 × 400 | 70.9 × 31.5 × 15.7 | 1 | DRC802A | DRC802PA | DRC812A | DRC606A | DRC626A |
| VFR30A | 1800 × 1000 × 400 | 70.9 × 39.4 × 15.7 | 1 | DRC803A | DRC803PA | DRC813A | DRC611A | DRC631A |
| VFR27A | 1800 × 600 × 500 | 70.9 × 23.6 × 19.7 | 1 | DRC801A | DRC801PA | DRC811A | DRC602A | DRC622A |
| VFR29A | 1800 × 800 × 500 | 70.9 × 31.5 × 19.7 | 1 | DRC802A | DRC802PA | DRC812A | DRC607A | DRC627A |
| VFR31A | 1800 × 1000 × 500 | 70.9 × 39.4 × 19.7 | 1 | DRC803A | DRC803PA | DRC813A | DRC612A | DRC632A |
| VFR32A | 1800 × 1200 × 500 | 70.9 × 47.2 × 19.7 | 2 | DRC804A | DRC804PA | DRC814A | DRC617A | DRC637A |
| VFR33A | 1800 × 1600 × 500 | 70.9 × 63.0 × 19.7 | 2 | DRC810A | DRC810PA | DRC820A | DRC647A | DRC657A |
Height 2000 mm
| Cabinet SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Solid Door | Glass Door | Back Panel | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|---|---|---|
| VFR34A | 2000 × 600 × 400 | 78.7 × 23.6 × 15.7 | 1 | DRC805A | DRC805PA | DRC815A | DRC601A | DRC621A |
| VFR36A | 2000 × 800 × 400 | 78.7 × 31.5 × 15.7 | 1 | DRC806A | DRC806PA | DRC816A | DRC606A | DRC626A |
| VFR38A | 2000 × 1000 × 400 | 78.7 × 39.4 × 15.7 | 1 | DRC807A | DRC807PA | DRC817A | DRC611A | DRC631A |
| VFR42A | 2000 × 1200 × 400 | 78.7 × 47.2 × 15.7 | 2 | DRC808A | DRC808PA | DRC818A | DRC616A | DRC636A |
| VFR35A | 2000 × 600 × 500 | 78.7 × 23.6 × 19.7 | 1 | DRC805A | DRC805PA | DRC815A | DRC602A | DRC622A |
| VFR37A | 2000 × 800 × 500 | 78.7 × 31.5 × 19.7 | 1 | DRC806A | DRC806PA | DRC816A | DRC607A | DRC627A |
| VFR39A | 2000 × 1000 × 500 | 78.7 × 39.4 × 19.7 | 1 | DRC807A | DRC807PA | DRC817A | DRC612A | DRC632A |
| VFR40A | 2000 × 1200 × 500 | 78.7 × 47.2 × 19.7 | 2 | DRC808A | DRC808PA | DRC818A | DRC617A | DRC637A |
| VFR41A | 2000 × 1600 × 500 | 78.7 × 63.0 × 19.7 | 2 | DRC810/2A | DRC810/2PA | DRC822A | DRC647A | DRC657A |
Height 600 mm
| Cabinet SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Solid Door | Back Panel | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|---|---|
| VFR1464A | 600 × 1400 × 400 | 23.6 × 55.1 × 15.7 | 2 | QO3614A | VFR811A | DRC641A | DRC651A |
| VFR1664A | 600 × 1600 × 400 | 23.6 × 63.0 × 15.7 | 2 | QO3616A | VFR813A | DRC646A | DRC656A |
| VFR1864A | 600 × 1800 × 400 | 23.6 × 70.9 × 15.7 | 2 | QO3618A | DRC811A | DRC666A | DRC668A |
| VFR2064A | 600 × 2000 × 400 | 23.6 × 78.7 × 15.7 | 2 | QO3620A | DRC815A | DRC667A | DRC669A |
Height 800 mm
| Cabinet SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Solid Door | Back Panel | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|---|---|
| VFR1484A | 800 × 1400 × 400 | 31.5 × 55.1 × 15.7 | 2 | QO3814A | VFR812A | DRC641A | DRC651A |
| VFR1684A | 800 × 1600 × 400 | 31.5 × 63.0 × 15.7 | 2 | QO3816A | VFR814A | DRC646A | DRC656A |
| VFR1884A | 800 × 1800 × 400 | 31.5 × 70.9 × 15.7 | 2 | QO3818A | DRC812A | DRC666A | DRC668A |
| VFR2084A | 800 × 2000 × 400 | 31.5 × 78.7 × 15.7 | 2 | QO3820A | DRC816A | DRC667A | DRC669A |
Height 1000 mm
| Cabinet SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Solid Door | Back Panel | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|---|---|
| VFR16104A | 1000 × 1600 × 400 | 39.4 × 63.0 × 15.7 | 2 | QO31016A | VFR815A | DRC646A | DRC656A |
| VFR18104A | 1000 × 1800 × 400 | 39.4 × 70.9 × 15.7 | 2 | QO31018A | DRC813A | DRC666A | DRC668A |
| VFR20104A | 1000 × 2000 × 400 | 39.4 × 78.7 × 15.7 | 2 | QO31020A | DRC817A | DRC667A | DRC669A |
Wide 600–1000 mm tall rows are the QO-style 2-door closed cabinets (Zanardo Catalog p.123). Glass-door option on vertical configurations only. Source: Zanardo Catalog pp. 122–125.
AISI 316L and UL/CSA marking on request. Contact for current availability and quote.
Source: Zanardo Catalog pp. 122–125 (VFR-A closed-side cabinets) · Brochure PDF
Applications
Where It Fits
Hygienic Process Control
Closed-side construction for sealed wash-down areas in food and pharma.
Automation Panels
Single-door PLC and drive enclosures where a fixed back panel is preferred.
Operator Stations
Glass-door vertical cabinets for visible HMI / instrument mounting.
Wide Distribution
QO-style 2-door horizontal cabinets for low, wide busbar layouts.
