Stainless · Console Series

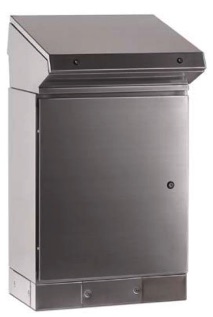

LM-A — Monobloc Control Consoles
One-piece stainless operator console · sloping top and lid · 1.5 mm AISI 304
Material
1.5 mm AISI 304 / AISI 316 stainless steel · fine scotch-brite finish
Rating
IP66 / CEI EN 62208 / CEI EN 60529
Impact
IK10
Brand
Zanardo
The stainless equivalent of our painted LM economic monobloc console. One-piece welded console with sloping top and lid — inclined lectern and synoptic table with stop in the open position, base with cable-entry flange and a 2 mm FeZn internal plate, plinth application configuration. Five widths from 600 to 1600 mm at a common 980 mm height and 400 mm depth; the two widest are twin-door. AISI 316 on request.
Key Features
- 1.5 mm AISI 304 stainless; fine scotch-brite finish
- Welded monobloc structure — no assembly required
- Sloping top with lid; inclined lectern and synoptic table, stop in open position
- Base with cable-entry flange and 2 mm FeZn internal plate
- Plinth application configuration (H100 / H200); AISI 316 on request
Standards & Approvals
Specifications
Catalog Size Matrix
| Console SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|
| LM6014A | 980 × 600 × 400 | 38.6 × 23.6 × 15.7 | 1 | DRC601A | DRC621A |
| LM8014A | 980 × 800 × 400 | 38.6 × 31.5 × 15.7 | 1 | DRC606A | DRC626A |
| LM1014A | 980 × 1000 × 400 | 38.6 × 39.4 × 15.7 | 1 | DRC611A | DRC631A |
| LM1214A | 980 × 1200 × 400 | 38.6 × 47.2 × 15.7 | 2 | DRC616A | DRC636A |
| LM1614A | 980 × 1600 × 400 | 38.6 × 63.0 × 15.7 | 2 | DRC646A | DRC656A |
LM6014A / LM8014A / LM1014A are single-door; LM1214A / LM1614A are two-door. Supply code: refer to the painted LV / LVE / LM / LVD93 size tables and add the suffix A to the basic code (Tecnomatic Enclosures Brochure p 45). Sizes below are the Zanardo stainless tables, pp. 128–133.
AISI 316 on request. Console composition (base, desk, top plate, intermediate shelf) is specified at order. Contact us for current availability and a quote.
Source: Tecnomatic Enclosures Brochure (2026) p 45 (console system, supply-code rule) · Zanardo Catalog pp. 128–133 (size matrices) · Brochure PDF
Applications
Where It Fits
Operator Desks
Single-piece HMI consoles for line-side operator stations.
Packaging Lines
Wash-down console housings on food and beverage packaging plant.
Machine-Side Control
Local control desks mounted at the machine.
Hygienic Stations
Stainless operator desks where painted steel is not permitted.
