Stainless · Console Series

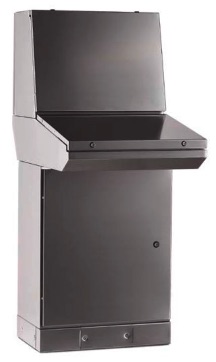

LV-A — Modular Control Consoles
Modular stainless operator console · sloping top and lid · 1.5 mm AISI 304
Material
1.5 mm AISI 304 / AISI 316 stainless steel · fine scotch-brite finish
Rating
IP66 / CEI EN 62208 / CEI EN 60529
Impact
IK10
Brand
Zanardo
The stainless equivalent of our painted LV modular console. Console system with sloping top and lid — inclined lectern and synoptic table with stop in the open position, base with cable-entry flange and a 2 mm FeZn internal plate, plinth application configuration. Built as a modular system: lower base, intermediate desk, and top plate order together to make a complete operator station. Two depths — 400 mm (LV101A–LV105A) and 500 mm (LV111A–LV115A). AISI 316 on request.
Key Features
- 1.5 mm AISI 304 stainless; fine scotch-brite finish
- Sloping top with lid; inclined lectern and synoptic table, stop in open position
- Base with cable-entry flange and 2 mm FeZn internal plate
- Modular — lower base + intermediate desk + top plate
- Plinth application configuration (H100 / H200); AISI 316 on request
Standards & Approvals
Specifications
Catalog Size Matrix
| Console SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|
| LV101A | 700 × 600 × 400 | 27.6 × 23.6 × 15.7 | 1 | DRC601A | DRC621A |
| LV102A | 700 × 800 × 400 | 27.6 × 31.5 × 15.7 | 1 | DRC606A | DRC626A |
| LV103A | 700 × 1000 × 400 | 27.6 × 39.4 × 15.7 | 1 | DRC611A | DRC631A |
| LV104A | 700 × 1200 × 400 | 27.6 × 47.2 × 15.7 | 2 | DRC616A | DRC636A |
| LV105A | 700 × 1600 × 400 | 27.6 × 63.0 × 15.7 | 2 | DRC646A | DRC656A |
| LV111A | 700 × 600 × 500 | 27.6 × 23.6 × 19.7 | 1 | DRC602A | DRC622A |
| LV112A | 700 × 800 × 500 | 27.6 × 31.5 × 19.7 | 1 | DRC607A | DRC627A |
| LV113A | 700 × 1000 × 500 | 27.6 × 39.4 × 19.7 | 1 | DRC612A | DRC632A |
| LV114A | 700 × 1200 × 500 | 27.6 × 47.2 × 19.7 | 2 | DRC617A | DRC637A |
| LV115A | 700 × 1600 × 500 | 27.6 × 63.0 × 19.7 | 2 | DRC647A | DRC657A |
LV-A is a modular console system — the sizes above are the lower-base units that carry the cabinet body and plinth. Complete a console by adding the intermediate desk and top plate per the catalog selection guide. Supply code: refer to the painted LV / LVE / LM / LVD93 size tables and add the suffix A to the basic code (Tecnomatic Enclosures Brochure p 45). Sizes below are the Zanardo stainless tables, pp. 128–133.
AISI 316 on request. Console composition (base, desk, top plate, intermediate shelf) is specified at order. Contact us for current availability and a quote.
Source: Tecnomatic Enclosures Brochure (2026) p 45 (console system, supply-code rule) · Zanardo Catalog pp. 128–133 (size matrices) · Brochure PDF
Applications
Where It Fits
Operator Desks
HMI and control consoles for production and packaging line operators.
Control Rooms
Multi-section console runs for plant control rooms.
Tilt Workstations
Angled instrument desks for ergonomic operator interaction.
Hygienic Stations
Wash-down-rated operator consoles in food and pharma plants.
