Stainless · Console Series

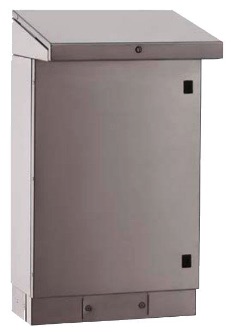

LVD93-A — Compact Control Consoles
Compact stainless console · integrated H100 plinth · 1.5 mm AISI 304
Material
1.5 mm AISI 304 / AISI 316 stainless steel · fine scotch-brite finish
Rating
IP66 / CEI EN 62208 / CEI EN 60529
Impact
IK10
Brand
Zanardo
The stainless equivalent of our painted LVD93 compact console. Compact operator console with a sloping hinged desk and stop in the open position, bottom cable-entry flange, 2 mm FeZn internal plate, and an integrated H100 plinth — no separate plinth to order. Three widths at a common 1060 mm height and 300 mm depth, for operator stations where a full LV-A or LM-A console will not fit. AISI 316 on request.
Key Features
- 1.5 mm AISI 304 stainless; fine scotch-brite finish
- Sloping hinged desk with stop in open position
- Integrated H100 plinth — no separate plinth required
- Bottom cable-entry flange and 2 mm FeZn internal plate
- Compact 300 mm depth footprint; AISI 316 on request
Standards & Approvals
Specifications
Catalog Size Matrix
| Console SKU | Dimensions (mm) H × W × D | Dimensions (in) | Doors | Plinth H100 |
|---|---|---|---|---|
| LVD93/1A | 1060 × 500 × 300 | 41.7 × 19.7 × 11.8 | 1 | Integrated H100 |
| LVD93/2A | 1060 × 600 × 300 | 41.7 × 23.6 × 11.8 | 1 | Integrated H100 |
| LVD93/3A | 1060 × 800 × 300 | 41.7 × 31.5 × 11.8 | 1 | Integrated H100 |
All three sizes are single-door and ship with the internal plate and integrated H100 plinth. Supply code: refer to the painted LV / LVE / LM / LVD93 size tables and add the suffix A to the basic code (Tecnomatic Enclosures Brochure p 45). Sizes below are the Zanardo stainless tables, pp. 128–133.
AISI 316 on request. Console composition (base, desk, top plate, intermediate shelf) is specified at order. Contact us for current availability and a quote.
Source: Tecnomatic Enclosures Brochure (2026) p 45 (console system, supply-code rule) · Zanardo Catalog pp. 128–133 (size matrices) · Brochure PDF
Applications
Where It Fits
Compact Operator Stations
Seated operator desks in space-constrained plant areas.
Machine-Side HMI
Local HMI consoles at machine and line side.
Inspection / QC
Quality-control desks in wash-down inspection bays.
Hygienic Stations
Stainless control desks in food and pharma cells.
