Stainless · Desk Series
DRC-LAN-I — Computer Cabinets
Stainless computer cabinet · 19″ transparent porthole upper door · keyboard desk + monitor/CPU supports
Material
1.5 mm AISI 304 stainless
Rating
IP55 / EN 62208 / EN 61439-1
Impact
IK08
Brand
Zanardo

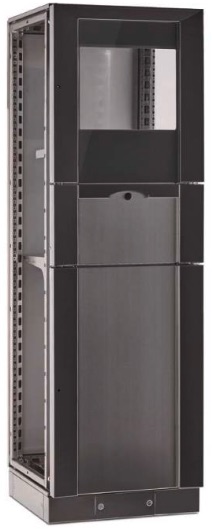

The DRC-LAN-I is Zanardo's stainless computer cabinet — a 1.5 mm AISI 304 drawn-column frame with a 19″ transparent-porthole upper door, air-spring keyboard desk, mouse support and fixed monitor / CPU supports. One footprint (1810 × 600 × 625 mm) in three internal configurations. The lone Zanardo stainless product using the -I suffix (catalog naming preserved verbatim). AISI 316 on request.
Key Features
- 1.5 mm AISI 304 drawn-column frame; roof and base fixed to structure
- H645 upper door with 19″ transparent porthole, air-spring opening
- Keyboard desk + mouse support; monitor and CPU supports fixed to structure
- Three internal configs: flap drawer / removable drawer / fixed panel + drawer
- IP55 / IK08; fine scotch-brite 240-grit finish; AISI 316 on request
Standards & Approvals
Specifications
Catalog Size Matrix
| SKU | Dimensions (mm) H × W × D | Dimensions (in) | Configuration | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|
| DRC-LAN-I | 1810 × 600 × 625 | 71.3 × 23.6 × 24.6 | Flap-door drawer | DRC603A | DRC623A |
| DRC-LAN-AI | 1810 × 600 × 625 | 71.3 × 23.6 × 24.6 | Central removable drawer | DRC603A | DRC623A |
| DRC-LAN-BI | 1810 × 600 × 625 | 71.3 × 23.6 × 24.6 | Fixed panel + removable drawer | DRC603A | DRC623A |
Side panels DRC353A (pair). On-guides removable shelves DRC287.35. Stabiliser feet 7009 / wheels 7010. Source: Zanardo Catalog pp. 126–127.
AISI 316L and UL/CSA marking on request. Contact for current availability and quote.
Source: Zanardo Catalog pp. 126–127 (DRC-LAN-I computer cabinets) · Brochure PDF
Applications
Where It Fits
Production-Floor PCs
Industrial computer workstations on wash-down food and pharma lines.
Shop-Floor Terminals
MES / SCADA operator terminals protected to IP55 in stainless.
Lab Workstations
Cleanroom-adjacent PC enclosures where painted steel is not permitted.
Quality Stations
Inspection-bay computer cabinets with integrated keyboard desk.
