Stainless · Desk Series
LAN1-I / LAN2-I — Compact Computer Cabinets
Compact stainless computer cabinets · monobloc · 19″ porthole · optional wheels base
Material
1.5 mm AISI 304 stainless
Rating
IP55 / EN 62208 / EN 61439-1
Impact
IK08
Brand
Zanardo

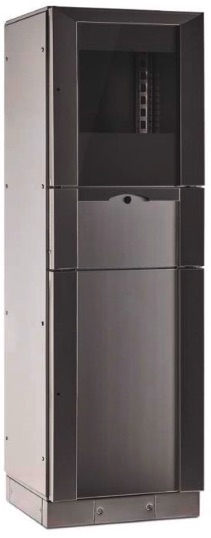

The LAN1-I and LAN2-I are compact stainless computer cabinets — a 1.5 mm AISI 304 welded monobloc with a 19″ transparent-porthole upper door and keyboard / mouse support. LAN1-I is the floor-standing compact (1600 mm); LAN2-I is the short bench cabinet (760 mm) that combines with the 7080I wheels base for a mobile workstation. AISI 316 on request.
Key Features
- 1.5 mm AISI 304 welded monobloc, 25 mm pitch drilling
- H645 upper door, 19″ transparent porthole, flap or removable drawer
- Keyboard desk + mouse support; monitor support fixed to structure
- LAN2-I combines with 7080I wheels base for a mobile workstation
- IP55 / IK08; fine scotch-brite 240-grit finish; AISI 316 on request
Standards & Approvals
Specifications
Catalog Size Matrix
| SKU | Dimensions (mm) H × W × D | Dimensions (in) | Configuration | Plinth H100 | Plinth H200 |
|---|---|---|---|---|---|
| DRC-LAN-1I | 1600 × 600 × 625 | 63.0 × 23.6 × 24.6 | Flap-door drawer | DRC603A | DRC623A |
| DRC-LAN-1/AI | 1600 × 600 × 625 | 63.0 × 23.6 × 24.6 | Removable drawer | DRC603A | DRC623A |
| DRC-LAN-2I | 760 × 600 × 625 | 29.9 × 23.6 × 24.6 | Removable drawer · 7080I wheels base | — | — |
LAN2-I combines with the 7080I wheels base. On-guides removable shelves DRC287.35. Source: Zanardo Catalog pp. 126–127.
AISI 316L on request. Contact for current availability and quote.
Source: Zanardo Catalog pp. 126–127 (LAN1-I / LAN2-I cabinets) · Brochure PDF
Applications
Where It Fits
Bench Workstations
Compact computer cabinets for inspection benches and lab tops.
Mobile Carts
LAN2-I + 7080I wheels base for roll-around stainless workstations.
Tight Footprints
Floor-standing LAN1-I where a full DRC-LAN-I will not fit.
Hygienic Areas
Wash-down-rated PC protection in food and pharma cells.
