Stainless · Wall-Mounted Series

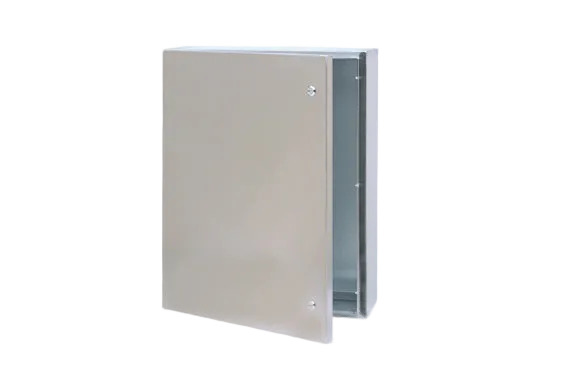

2800-SS — Tecnomatic NEMA 4X (US-spec)
304 stainless wall-mounted box · NEMA 4X · 28xxx US-spec size matrix · stocked in Stamford CT

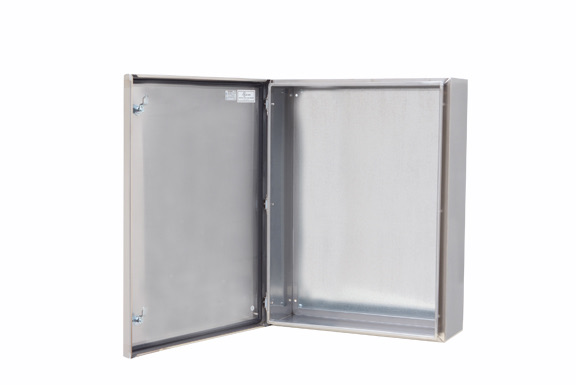

Door open
Material
304 stainless steel
Rating
IP66 / NEMA 4X
Impact
IK10
Brand
Tecnomatic
Tecnomatic's own 304 stainless wall-mounted boxes in the 28xxx US-spec NEMA 4X size matrix — 35 sizes stocked at the Stamford CT warehouse for fast delivery. Welded monobloc, solid door with polyurethane gasket, galvanised internal plate. The fastest-shipping stainless wall option in the collection.
Key Features
- 304 stainless welded monobloc, NEMA 4X / IP66 protection
- Solid door, polyurethane sealing gasket, internal galvanised plate
- 35 US-spec sizes stocked at Stamford CT for fast delivery
- UL E238294; NEMA 1/12/4/4X
Standards & Approvals
Specifications
Catalog Size Matrix
| Box SKU | Dimensions (mm) H × W × D | Dimensions (in) H × W × D | Material | Rating | Spec Sheet |
|---|---|---|---|---|---|
| 28020-SS | 300 × 200 × 150 | 11.8 × 7.87 × 5.9 | 304 stainless | NEMA 4X | Spec Sheet |
| 28035-SS | 300 × 250 × 150 | 11.8 × 9.84 × 5.9 | 304 stainless | NEMA 4X | Spec Sheet |
| 28035-SSV-RED | 300 × 250 × 150 | 11.8 × 9.84 × 5.9 | 304 stainless | NEMA 4X | — |
| 28036-SS | 300 × 250 × 200 | 11.8 × 9.84 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28040-SS | 300 × 300 × 150 | 11.8 × 11.8 × 5.9 | 304 stainless | NEMA 4X | Spec Sheet |
| 28041-SS | 300 × 300 × 200 | 11.8 × 11.8 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28050-SS | 355 × 250 × 200 | 13.98 × 9.84 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28070-SS | 400 × 300 × 200 | 15.75 × 11.8 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28070-SS-61 | 400 × 300 × 200 | 15.75 × 11.8 × 7.87 | 304 stainless | NEMA 4X | — |
| 28110-SS | 400 × 400 × 200 | 15.75 × 15.75 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28116-SS | 500 × 400 × 200 | 19.7 × 15.75 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28134-SS | 500 × 500 × 200 | 19.7 × 19.7 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28135-SS | 508 × 508 × 254 | 20 × 20 × 10 | 304 stainless | NEMA 4X | Spec Sheet |
| 28152-SS | 560 × 610 × 254 | 22.05 × 24.02 × 10 | 304 stainless | NEMA 4X | — |
| 28130-SS | 600 × 400 × 250 | 23.62 × 15.75 × 9.84 | 304 stainless | NEMA 4X | Spec Sheet |
| 28172-SS | 600 × 500 × 200 | 23.62 × 19.7 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28172-SSV-RED | 600 × 500 × 200 | 23.62 × 19.7 × 7.87 | 304 stainless | NEMA 4X | — |
| 28173-SS | 600 × 500 × 200 | 23.62 × 19.7 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28174-SS | 600 × 600 × 200 | 23.62 × 23.62 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28177-SS | 600 × 600 × 250 | 23.62 × 23.62 × 9.84 | 304 stainless | NEMA 4X | Spec Sheet |
| 28176-SS | 710 × 510 × 200 | 27.95 × 20.08 × 7.87 | 304 stainless | NEMA 4X | Spec Sheet |
| 28180-SS | 800 × 600 × 250 | 31.5 × 23.62 × 9.84 | 304 stainless | NEMA 4X | Spec Sheet |
| 28190-SS | 800 × 600 × 300 | 31.5 × 23.62 × 11.8 | 304 stainless | NEMA 4X | Spec Sheet |
| 28200-SS | 800 × 800 × 300 | 31.5 × 31.5 × 11.8 | 304 stainless | NEMA 4X | Spec Sheet |
| 28193-SS | 915 × 600 × 255 | 36.02 × 23.62 × 10.04 | 304 stainless | NEMA 4X | Spec Sheet |
| 28194-SS | 915 × 600 × 305 | 36.02 × 23.62 × 12 | 304 stainless | NEMA 4X | Spec Sheet |
| 28221-SS-WA | 920 × 766 × 400 | 36.22 × 30.16 × 15.75 | 304 stainless | NEMA 4X | — |
| 28197-SS | 1000 × 600 × 400 | 39.37 × 23.62 × 15.75 | 304 stainless | NEMA 4X | — |
| 28220-SS | 1000 × 800 × 300 | 39.37 × 31.5 × 11.8 | 304 stainless | NEMA 4X | Spec Sheet |
| 28260-SS | 1200 × 800 × 300 | 47.24 × 31.5 × 11.8 | 304 stainless | NEMA 4X | Spec Sheet |
| 28278-SS | 1200 × 800 × 300 | 47.24 × 31.5 × 11.8 | 304 stainless | NEMA 4X | Spec Sheet |
| 28270-SS | 1200 × 800 × 400 | 47.24 × 31.5 × 15.75 | 304 stainless | NEMA 4X | Spec Sheet |
| 28230-SS | 1200 × 800 × 400 | 47.24 × 31.5 × 15.75 | 304 stainless | NEMA 4X | Spec Sheet |
| 28278-SS-EL | 1219 × 914 × 406 | 48 × 35.98 × 15.98 | 304 stainless | NEMA 4X | — |
| 28240-SS | 1220 × 600 × 305 | 48.03 × 23.62 × 12 | 304 stainless | NEMA 4X | Spec Sheet |
All variants 304 stainless steel; NEMA 4X protection. 35 sizes stocked at Stamford CT. Additional sizes available — contact for current availability.
Source: Tecnomatic Enclosures Brochure (28xxx-SS series) · Brochure PDF
Applications
Where It Fits
Wash-Down Lines
Food and beverage production where boxes are hosed down daily.
Outdoor Controls
Rooftop and yard control boxes needing 4X corrosion protection.
Water Treatment
Chlorine and humidity environments at municipal plants.
Marine / Dock
Salt-air junction and control boxes near water.
