Series

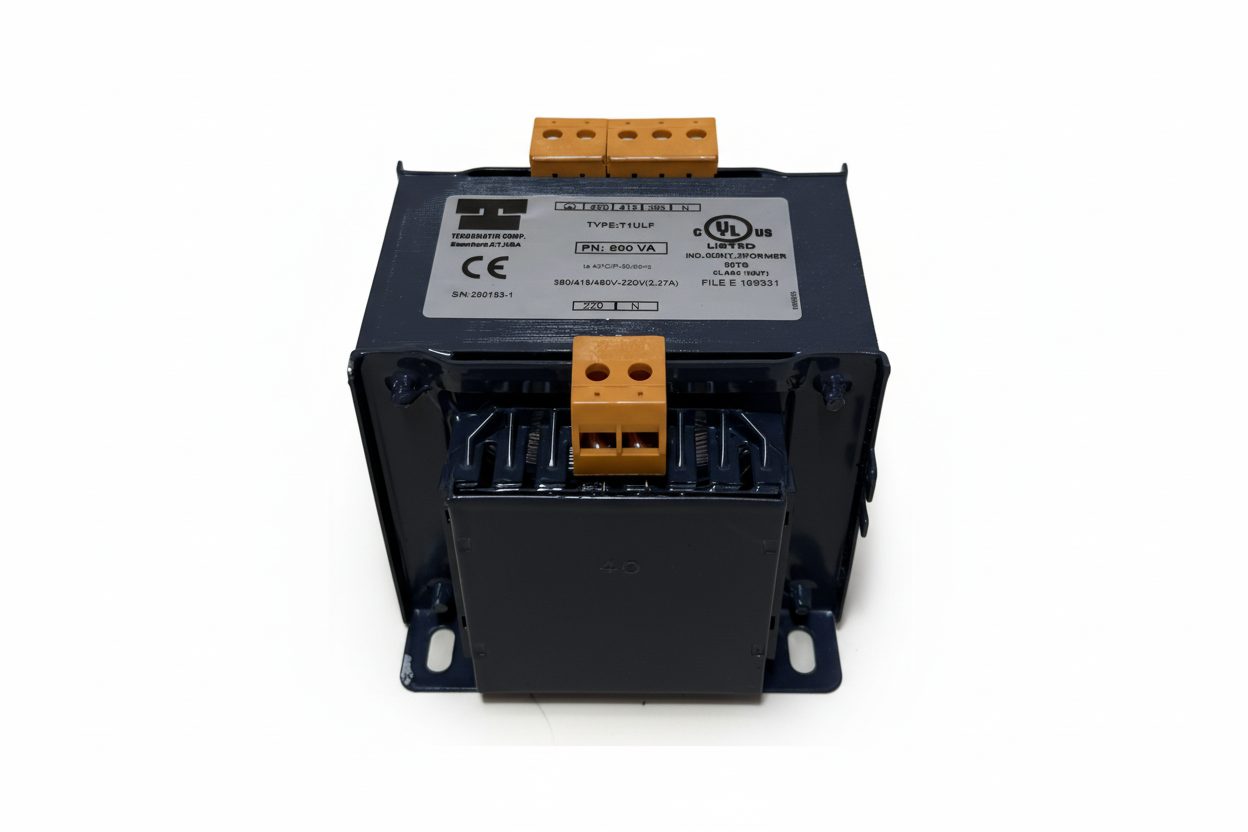

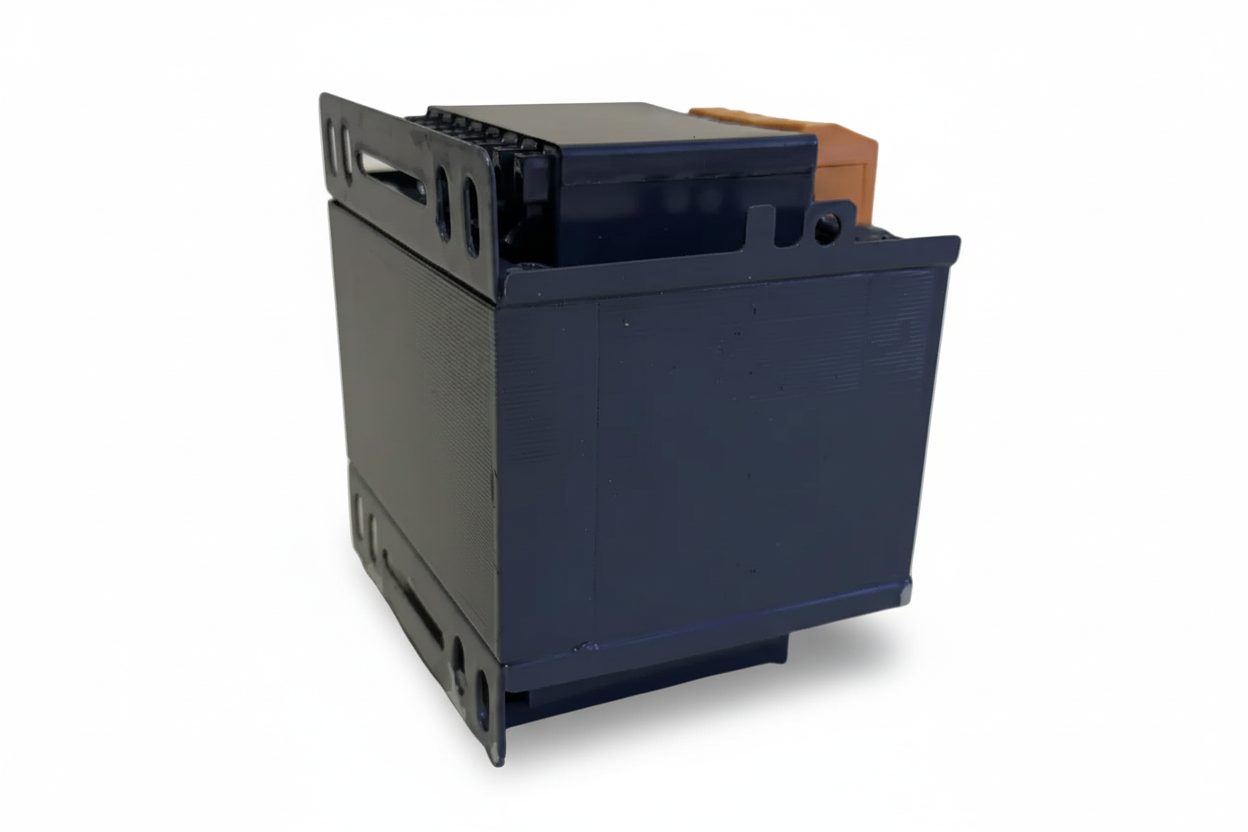

T1 — Industrial Control Transformer
30 VA — 10 kVA · UL-CSA · stocked Stamford, CT
The T1 is METH's flagship single-phase industrial control transformer for North American voltages. Multi-tap primary (208-240-480 V or 575 V), 120 V or 24 V secondary, dual-secondary 2×115 V available. Optional integrated fuse holder (F-suffix part numbers). UL E169331 / CSA listed under UL 5085-1.
Key Features
- ▸Multi-tap primary 208-240-480 V or 575 V
- ▸120 V / 24 V / 2×115 V secondaries
- ▸Optional fuse holder (F-suffix)
- ▸Stocked in Stamford, CT for immediate delivery
Insulation
Class B / F
Mounting
Foot-mounted, channel base
METH Catalogue
Dimensions & data chart
Full dimensional drawing, code matrix, and electrical data (losses, efficiency, Ucc, inrush) for this series in the METH Transformer Catalogue — page 30.
View dimensional drawing & data chart (METH Catalogue p. 30) →Technical Data
Specifications
Inches shown as primary unit, mm as secondary where applicable. Custom voltages and ratings available — contact us for engineered configurations.
| Model | VA / kVA | Primary Voltage | Secondary Voltage | Fuse Option | Certifications |
|---|---|---|---|---|---|
| Standard part numbers — 208/240/480 V primary, 120 V secondary | |||||
| T1-30-208-240-480/120 | 30 VA | 208/240/480 V | 120 V | T1-30-208-240-480/120F | UL · CSA |
| T1-50-208-240-480/120 | 50 VA | 208/240/480 V | 120 V | T1-50-208-240-480/120F | UL · CSA |
| T1-75-208-240-480/120 | 75 VA | 208/240/480 V | 120 V | T1-75-208-240-480/120F | UL · CSA |
| T1-100-208-240-480/120 | 100 VA | 208/240/480 V | 120 V | T1-100-208-240-480/120F | UL · CSA |
| T1-150-208-240-480/120 | 150 VA | 208/240/480 V | 120 V | T1-150-208-240-480/120F | UL · CSA |
| T1-200-208-240-480/120 | 200 VA | 208/240/480 V | 120 V | T1-200-208-240-480/120F | UL · CSA |
| T1-250-208-240-480/120 | 250 VA | 208/240/480 V | 120 V | T1-250-208-240-480/120F | UL · CSA |
| T1-300-208-240-480/120 | 300 VA | 208/240/480 V | 120 V | T1-300-208-240-480/120F | UL · CSA |
| T1-400-208-240-480/120 | 400 VA | 208/240/480 V | 120 V | T1-400-208-240-480/120F | UL · CSA |
| T1-500-208-240-480/120 | 500 VA | 208/240/480 V | 120 V | T1-500-208-240-480/120F | UL · CSA |
| T1-600-208-240-480/120 | 600 VA | 208/240/480 V | 120 V | T1-600-208-240-480/120F | UL · CSA |
| T1-800-208-240-480/120 | 800 VA | 208/240/480 V | 120 V | T1-800-208-240-480/120F | UL · CSA |
| T1-1000-208-240-480/120 | 1 kVA | 208/240/480 V | 120 V | T1-1000-208-240-480/120F | UL · CSA |
| T1-1500-208-240-480/120 | 1.5 kVA | 208/240/480 V | 120 V | T1-1500-208-240-480/120F | UL · CSA |
| T1-2000-208-240-480/120 | 2 kVA | 208/240/480 V | 120 V | T1-2000-208-240-480/120F | UL · CSA |
| T1-2500-208-240-480/120 | 2.5 kVA | 208/240/480 V | 120 V | — | UL · CSA |
| T1-3000-208-240-480/120 | 3 kVA | 208/240/480 V | 120 V | — | UL · CSA |
| T1-5000-208-240-480/120 | 5 kVA | 208/240/480 V | 120 V | — | UL · CSA |
| T1-7500-208-240-480/120 | 7.5 kVA | 208/240/480 V | 120 V | — | UL · CSA |
| T1-10000-208-240-480/120 | 10 kVA | 208/240/480 V | 120 V | — | UL · CSA |
| Standard part numbers — 24 V secondary | |||||
| T1-30-208-240-480/24 | 30 VA | 208/240/480 V | 24 V | T1-30-208-240-480/24F | UL · CSA |
| T1-50-208-240-480/24 | 50 VA | 208/240/480 V | 24 V | T1-50-208-240-480/24F | UL · CSA |
| T1-75-208-240-480/24 | 75 VA | 208/240/480 V | 24 V | T1-75-208-240-480/24F | UL · CSA |
| T1-100-208-240-480/24 | 100 VA | 208/240/480 V | 24 V | T1-100-208-240-480/24F | UL · CSA |
| T1-150-208-240-480/24 | 150 VA | 208/240/480 V | 24 V | T1-150-208-240-480/24F | UL · CSA |
| T1-200-208-240-480/24 | 200 VA | 208/240/480 V | 24 V | T1-200-208-240-480/24F | UL · CSA |
| T1-250-208-240-480/24 | 250 VA | 208/240/480 V | 24 V | T1-250-208-240-480/24F | UL · CSA |
| T1-300-208-240-480/24 | 300 VA | 208/240/480 V | 24 V | T1-300-208-240-480/24F | UL · CSA |
| T1-400-208-240-480/24 | 400 VA | 208/240/480 V | 24 V | T1-400-208-240-480/24F | UL · CSA |
| T1-500-208-240-480/24 | 500 VA | 208/240/480 V | 24 V | T1-500-208-240-480/24F | UL · CSA |
| T1-600-208-240-480/24 | 600 VA | 208/240/480 V | 24 V | T1-600-208-240-480/24F | UL · CSA |
| T1-800-208-240-480/24 | 800 VA | 208/240/480 V | 24 V | T1-800-208-240-480/24F | UL · CSA |
| T1-1000-208-240-480/24 | 1 kVA | 208/240/480 V | 24 V | T1-1000-208-240-480/24F | UL · CSA |
| T1-1500-208-240-480/24 | 1.5 kVA | 208/240/480 V | 24 V | T1-1500-208-240-480/24F | UL · CSA |
| T1-2000-208-240-480/24 | 2 kVA | 208/240/480 V | 24 V | T1-2000-208-240-480/24F | UL · CSA |
| T1-2500-208-240-480/24 | 2.5 kVA | 208/240/480 V | 24 V | T1-2500-208-240-480/24F | UL · CSA |
Stocked at our Stamford, CT warehouse for immediate delivery. F-suffix variants include integrated fuse holder. Custom voltages available — contact for quote.
Use Cases
Typical Applications
Control panels
Power for PLCs, relays, and pilot devices in UL-listed industrial control panels.
Machine tools
120 V control circuits derived from 480 V three-phase mains.
Lighting branch
Step-down for 120 V lighting circuits in 480 V plants.
Legacy 240 V loads
Step-down 480 V → 240 V for older single-phase equipment.
