Series

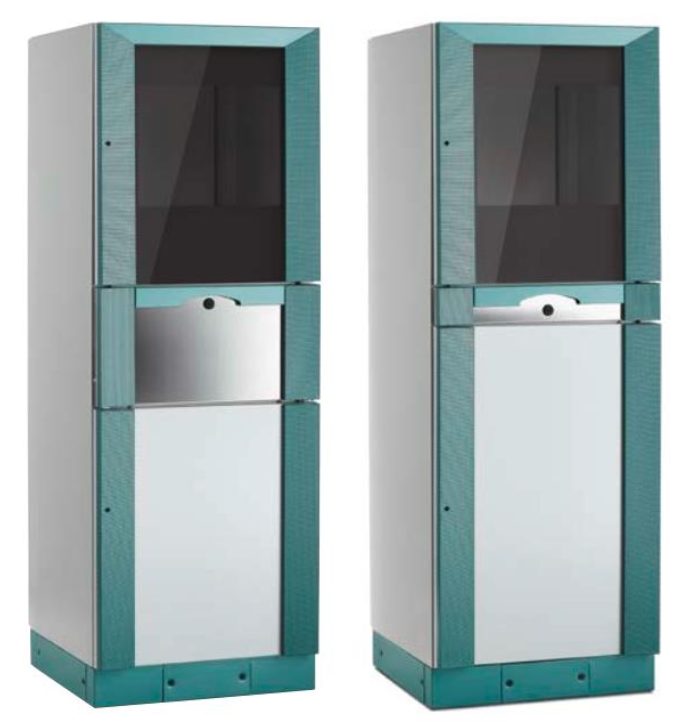

LAN1 / LAN2 — Compact PC Cabinets
Traditional design compact PC cabinets — matches DRC / VFR / KM-KQ aesthetic.
Single compact cabinets, suitable to housing computer units. Traditional design with RAL 7009 textured plinth and RAL 6033 textured profiles — matches the standard DRC / VFR / KM-KQ cabinet aesthetic. Equipped with monitor, keyboard, mouse, and CPU compartments. Prepared for plinth mounting. The LAN family encompasses two product configurations: LAN1 (floor-standing, DRC-LAN-1 and DRC-LAN-1A) and LAN2 (compact pedestal-mount, DRC-LAN-2).
Key Features
- ▸Single compact cabinets housing computer units
- ▸Monitor + keyboard + mouse + CPU compartments
- ▸Traditional RAL 7009 textured plinth + RAL 6033 textured profiles
- ▸Matches DRC / VFR / KM-KQ aesthetic family
- ▸Plinth-mount ready (LAN1 variants); pedestal-mount compact (LAN2)
- ▸Stabilizers + castors for floor-standing variants
IP Rating
IP66
Material
1.5 mm carbon steel sheet · RAL 7035 textured (body) + RAL 7009 textured (plinth) + RAL 6033 textured (profiles)
IK Rating
IK10
Mounting
Floor-standing (DRC-LAN-1, -1A); pedestal-mount compact (DRC-LAN-2)
Standards
Certifications & Compliance
- ▸IP66 (CEI EN 62208 / CEI EN 60529, internal use)
- ▸IK10 (CEI EN 62208 / CEI EN 62262)
Models & Specifications
Available Models
| Box SKU | Dimensions (mm) H × W × D | Dimensions (in) H × W × D | Plinth H100 | Plinth H200 | Pedestal | Stabilizer | Castor | Quote |
|---|---|---|---|---|---|---|---|---|
| DRC-LAN-2.35 | 760 × 600 × 625 | 30 × 24 × 25 | — | — | 7080 | — | — |
Catalog source: Tecnomatic Enclosures Brochure (2026) p 32. Custom sizes, finishes, and configurations on request.
DRC-LAN-1 and DRC-LAN-1A share dimensions and accessory complement. Differentiation between variants depends on internal drawer configuration. Contact our technical department to confirm the appropriate variant for your application.
Related Series
You may also need
Use Cases
Typical Applications
Industrial PC workstations
Plant-floor PC stations matching existing cabinet aesthetic.
Service desk PC stations
Maintenance department PC cabinets.
Compact PC kiosks
DRC-LAN-2 pedestal-mount compact form factor for tight spaces.
Multi-cabinet suites
Joinable to existing DRC / VFR / KM-KQ suites without aesthetic break.
DRC-LAN-1 and DRC-LAN-1A share dimensions and accessory complement. Differentiation between variants depends on internal drawer configuration. Contact our technical department to confirm the appropriate variant for your application.
Enclosures for indoor use only — contact our technical department for outdoor use.
