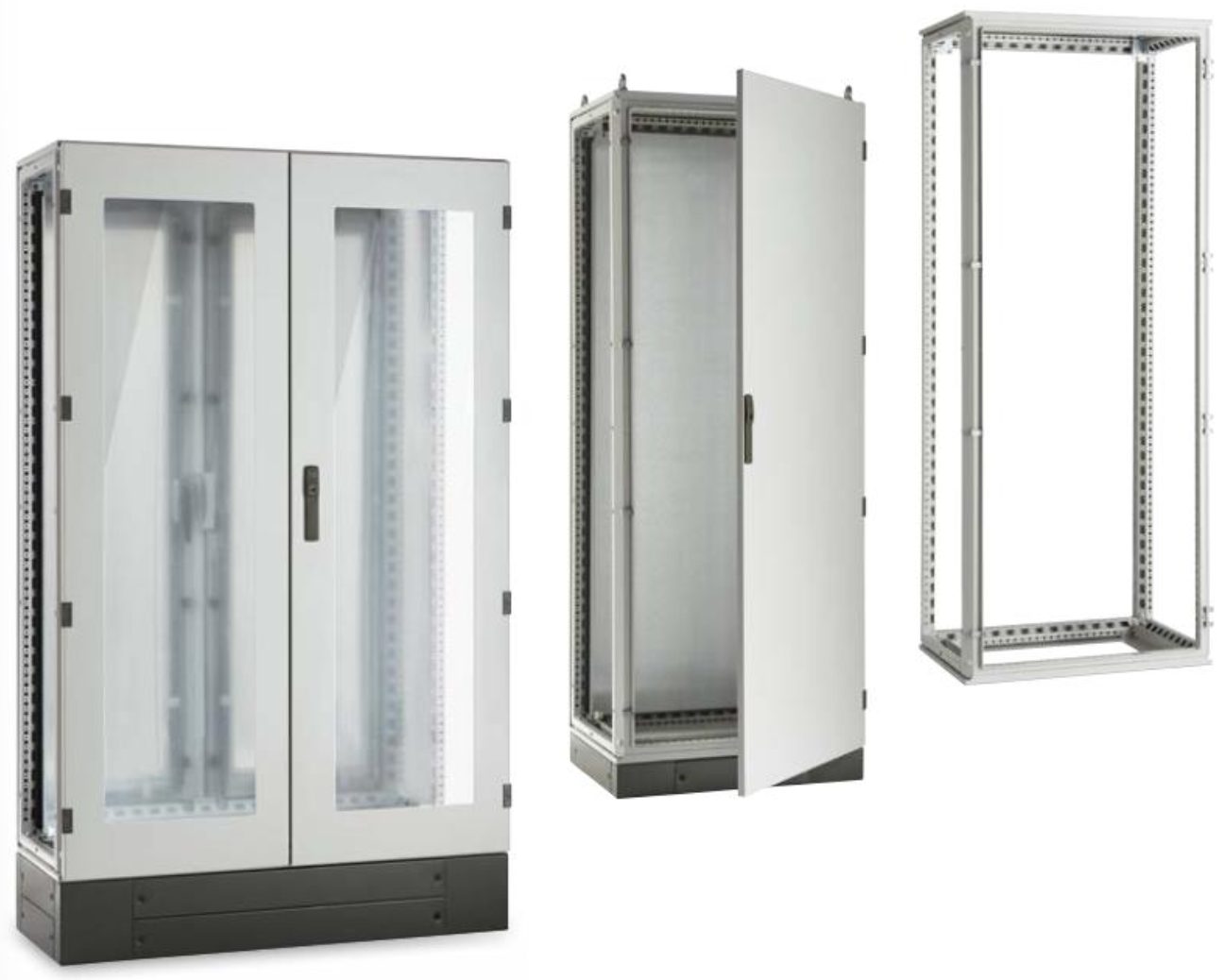

DRC — Modular Cabinet System

Modular cabinet system designed for in-line, multi-suite configurations.

IP66IK10UL/cUL (does not apply for transparent door)CEREACHRoHSTÜVCESIRINA

Modular cabinet system designed to be joined together to form multi-suite configurations — built for switchgear, automation, and large control applications. Strong full-welded frame structure. Bottom cable inlet plate; top, side, and rear walls are screwed to the base frame. Available with solid door or window door, with or without internal door. Depth-adjustable internal plate in galvanized steel (2.5 mm). Plinth-mount ready.

Key Features

▸Strong full-welded frame structure
▸Bottom cable inlet plate; top, side, and rear walls screwed to base frame
▸Solid door or window door (PVC); with or without internal door
▸Depth-adjustable internal plate in galvanized steel (2.5 mm)
▸Plinth-mount ready
▸Removable roof / cabinet body / internal plate / side / back / base

IP Rating

IP66

Material

1.5 / 1.8 mm carbon steel sheet · RAL 7035 textured (body) + RAL 7009 textured (plinth)

IK Rating

IK10

Mounting

Floor-standing modular; plinth-mount ready; joinable for multi-suite lineups

Standards

Certifications & Compliance

▸IP66 (CEI EN 62208 / CEI EN 60529, internal use)
▸IK10 (CEI EN 62208 / CEI EN 62262)

IP66IK10UL/cUL (does not apply for transparent door)CEREACHRoHSTÜVCESIRINA

UL/cUL approval does not apply to transparent (PVC window) door variants.

Models & Specifications

Available Models

Height 1410 mm · 56 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Glass SKU	Door Solid	Door Glass	Back Panel	Front Int Plate	Side Int Plate	Side Pnl Pair	Plinth H100	Plinth H200	Quote
DRC165.35	1410 × 600 × 400	56 × 24 × 16	DRC165P.35	VFR801	VFR801P	VFR811	VFR101	DRC235	DRC189	DRC601	DRC621	Request
DRC168.35	1410 × 600 × 500	56 × 24 × 20	DRC168P.35	VFR801	VFR801P	VFR811	VFR101	DRC235	DRC190	DRC602	DRC622	Request
DRC171.35	1410 × 600 × 600	56 × 24 × 24	DRC171P.35	VFR801	VFR801P	VFR811	VFR101	DRC235	DRC191	DRC603	DRC623	Request
DRC166.35	1410 × 800 × 400	56 × 32 × 16	DRC166P.35	VFR802	VFR802P	VFR812	VFR102	DRC236	DRC189	DRC606	DRC626	Request
DRC169.35	1410 × 800 × 500	56 × 32 × 20	DRC169P.35	VFR802	VFR802P	VFR812	VFR102	DRC236	DRC190	DRC607	DRC627	Request
DRC172.35	1410 × 800 × 600	56 × 32 × 24	DRC172P.35	VFR802	VFR802P	VFR812	VFR102	DRC236	DRC191	DRC608	DRC628	Request
DRC167.35	1410 × 1200 × 400	56 × 47 × 16	DRC167P.35	VFR806	VFR806P	VFR816	VFR106	DRC237	DRC189	DRC616	DRC636	Request
DRC170.35	1410 × 1200 × 500	56 × 47 × 20	DRC170P.35	VFR806	VFR806P	VFR816	VFR106	DRC237	DRC190	DRC617	DRC637	Request
DRC173.35	1410 × 1200 × 600	56 × 47 × 24	DRC173P.35	VFR806	VFR806P	VFR816	VFR106	DRC237	DRC191	DRC618	DRC638	Request

Height 1610 mm · 64 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Glass SKU	Door Solid	Door Glass	Back Panel	Front Int Plate	Side Int Plate	Side Pnl Pair	Plinth H100	Plinth H200	Quote
DRC174.35	1610 × 400 × 500	64 × 16 × 20	—	VFR808	—	VFR818	VFR108	DRC249	DRC192	DRC557	DRC562	Request
DRC179.35	1610 × 400 × 600	64 × 16 × 24	—	VFR808	—	VFR818	VFR108	DRC249	DRC193	DRC558	DRC563	Request
DRC184.35	1610 × 400 × 800	64 × 16 × 32	—	VFR808	—	VFR818	VFR108	DRC249	DRC194	DRC559	DRC564	Request
DRC175.35	1610 × 600 × 400	64 × 24 × 16	DRC175P.35	VFR803	VFR803P	VFR813	VFR103	DRC238	DRC192	DRC601	DRC621	Request
DRC180.35	1610 × 600 × 500	64 × 24 × 20	DRC180P.35	VFR803	VFR803P	VFR813	VFR103	DRC238	DRC193	DRC602	DRC622	Request
DRC185.35	1610 × 600 × 600	64 × 24 × 24	DRC185P.35	VFR803	VFR803P	VFR813	VFR103	DRC238	DRC194	DRC603	DRC623	Request
DRC176.35	1610 × 800 × 400	64 × 32 × 16	DRC176P.35	VFR804	VFR804P	VFR814	VFR104	DRC239	DRC192	DRC606	DRC626	Request
DRC181.35	1610 × 800 × 500	64 × 32 × 20	DRC181P.35	VFR804	VFR804P	VFR814	VFR104	DRC239	DRC193	DRC607	DRC627	Request
DRC186.35	1610 × 800 × 600	64 × 32 × 24	DRC186P.35	VFR804	VFR804P	VFR814	VFR104	DRC239	DRC194	DRC608	DRC628	Request
DRC177.35	1610 × 1000 × 400	64 × 39 × 16	DRC177P.35	VFR805	VFR805P	VFR815	VFR105	DRC240	DRC192	DRC611	DRC631	Request
DRC182.35	1610 × 1000 × 500	64 × 39 × 20	DRC182P.35	VFR805	VFR805P	VFR815	VFR105	DRC240	DRC193	DRC612	DRC632	Request
DRC187.35	1610 × 1000 × 600	64 × 39 × 24	DRC187P.35	VFR805	VFR805P	VFR815	VFR105	DRC240	DRC194	DRC613	DRC633	Request
DRC178.35	1610 × 1200 × 400	64 × 47 × 16	DRC178P.35	VFR807	VFR807P	VFR817	VFR107	DRC241	DRC192	DRC616	DRC636	Request
DRC183.35	1610 × 1200 × 500	64 × 47 × 20	DRC183P.35	VFR807	VFR807P	VFR817	VFR107	DRC241	DRC193	DRC617	DRC637	Request
DRC188.35	1610 × 1200 × 600	64 × 47 × 24	DRC188P.35	VFR807	VFR807P	VFR817	VFR107	DRC241	DRC194	DRC618	DRC638	Request

Height 1810 mm · 71 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Glass SKU	Door Solid	Door Glass	Back Panel	Front Int Plate	Side Int Plate	Side Pnl Pair	Plinth H100	Plinth H200	Quote
DRC1824.35	1810 × 200 × 400	71 × 8 × 16	—	DRC788	—	DRC792	—	—	DRC351	DRC531	DRC541	Request
DRC1825.35	1810 × 200 × 500	71 × 8 × 20	—	DRC788	—	DRC792	—	—	DRC352	DRC532	DRC542	Request
DRC1826.35	1810 × 200 × 600	71 × 8 × 24	—	DRC788	—	DRC792	—	—	DRC353	DRC533	DRC543	Request
DRC1828.35	1810 × 200 × 800	71 × 8 × 32	—	DRC788	—	DRC792	—	—	DRC354	DRC534	DRC544	Request
DRC1821.35	1810 × 200 × 1000	71 × 8 × 39	—	DRC788	—	DRC792	—	—	DRC355	DRC535	DRC545	Request
DRC150.35	1810 × 400 × 400	71 × 16 × 16	—	DRC798	—	DRC793	DRC100	DRC243	DRC351	DRC557	DRC562	Request
DRC151.35	1810 × 400 × 500	71 × 16 × 20	—	DRC798	—	DRC793	DRC100	DRC243	DRC352	DRC558	DRC563	Request
DRC152.35	1810 × 400 × 600	71 × 16 × 24	—	DRC798	—	DRC793	DRC100	DRC243	DRC353	DRC559	DRC564	Request
DRC153.35	1810 × 400 × 800	71 × 16 × 32	—	DRC798	—	DRC793	DRC100	DRC243	DRC354	DRC560	DRC565	Request
DRC154.35	1810 × 400 × 1000	71 × 16 × 39	—	DRC798	—	DRC793	DRC100	DRC243	DRC355	DRC561	DRC566	Request
DRC1.35	1810 × 600 × 400	71 × 24 × 16	DRC1P.35	DRC801	DRC801P	DRC811	DRC101	DRC217	DRC351	DRC601	DRC621	Request
DRC2.35	1810 × 600 × 500	71 × 24 × 20	DRC2P.35	DRC801	DRC801P	DRC811	DRC101	DRC217	DRC352	DRC602	DRC622	Request
DRC3.35	1810 × 600 × 600	71 × 24 × 24	DRC3P.35	DRC801	DRC801P	DRC811	DRC101	DRC217	DRC353	DRC603	DRC623	Request
DRC4.35	1810 × 600 × 800	71 × 24 × 32	DRC4P.35	DRC801	DRC801P	DRC811	DRC101	DRC217	DRC354	DRC604	DRC624	Request
DRC5.35	1810 × 600 × 1000	71 × 24 × 39	DRC5P.35	DRC801	DRC801P	DRC811	DRC101	DRC217	DRC355	DRC605	DRC625	Request
DRC6.35	1810 × 800 × 400	71 × 32 × 16	DRC6P.35	DRC802	DRC802P	DRC812	DRC102	DRC218	DRC351	DRC606	DRC626	Request
DRC7.35	1810 × 800 × 500	71 × 32 × 20	DRC7P.35	DRC802	DRC802P	DRC812	DRC102	DRC218	DRC352	DRC607	DRC627	Request
DRC8.35	1810 × 800 × 600	71 × 32 × 24	DRC8P.35	DRC802	DRC802P	DRC812	DRC102	DRC218	DRC353	DRC608	DRC628	Request
DRC9.35	1810 × 800 × 800	71 × 32 × 32	DRC9P.35	DRC802	DRC802P	DRC812	DRC102	DRC218	DRC354	DRC609	DRC629	Request
DRC10.35	1810 × 800 × 1000	71 × 32 × 39	DRC10P.35	DRC802	DRC802P	DRC812	DRC102	DRC218	DRC355	DRC610	DRC630	Request
DRC11.35	1810 × 1000 × 400	71 × 39 × 16	DRC11P.35	DRC803	DRC803P	DRC813	DRC103	DRC219	DRC351	DRC611	DRC631	Request
DRC12.35	1810 × 1000 × 500	71 × 39 × 20	DRC12P.35	DRC803	DRC803P	DRC813	DRC103	DRC219	DRC352	DRC612	DRC632	Request
DRC13.35	1810 × 1000 × 600	71 × 39 × 24	DRC13P.35	DRC803	DRC803P	DRC813	DRC103	DRC219	DRC353	DRC613	DRC633	Request
DRC14.35	1810 × 1000 × 800	71 × 39 × 32	DRC14P.35	DRC803	DRC803P	DRC813	DRC103	DRC219	DRC354	DRC614	DRC634	Request
DRC15.35	1810 × 1000 × 1000	71 × 39 × 39	DRC15P.35	DRC803	DRC803P	DRC813	DRC103	DRC219	DRC355	DRC615	DRC635	Request
DRC16.35	1810 × 1200 × 400	71 × 47 × 16	DRC16P.35	DRC804	DRC804P	DRC814	DRC104	DRC220	DRC351	DRC616	DRC636	Request
DRC17.35	1810 × 1200 × 500	71 × 47 × 20	DRC17P.35	DRC804	DRC804P	DRC814	DRC104	DRC220	DRC352	DRC617	DRC637	Request
DRC18.35	1810 × 1200 × 600	71 × 47 × 24	DRC18P.35	DRC804	DRC804P	DRC814	DRC104	DRC220	DRC353	DRC618	DRC638	Request
DRC19.35	1810 × 1200 × 800	71 × 47 × 32	DRC19P.35	DRC804	DRC804P	DRC814	DRC104	DRC220	DRC354	DRC619	DRC639	Request
DRC20.35	1810 × 1200 × 1000	71 × 47 × 39	DRC20P.35	DRC804	DRC804P	DRC814	DRC104	DRC220	DRC355	DRC620	DRC640	Request
DRC41.35	1810 × 1400 × 400	71 × 55 × 16	DRC41P.35	DRC809	DRC809P	DRC819	DRC109	DRC221	DRC351	DRC641	DRC651	Request
DRC42.35	1810 × 1400 × 500	71 × 55 × 20	DRC42P.35	DRC809	DRC809P	DRC819	DRC109	DRC221	DRC352	DRC642	DRC652	Request
DRC43.35	1810 × 1400 × 600	71 × 55 × 24	DRC43P.35	DRC809	DRC809P	DRC819	DRC109	DRC221	DRC353	DRC643	DRC653	Request
DRC44.35	1810 × 1400 × 800	71 × 55 × 32	DRC44P.35	DRC809	DRC809P	DRC819	DRC109	DRC221	DRC354	DRC644	DRC654	Request
DRC45.35	1810 × 1400 × 1000	71 × 55 × 39	DRC45P.35	DRC809	DRC809P	DRC819	DRC109	DRC221	DRC355	DRC645	DRC655	Request
DRC46.35	1810 × 1600 × 400	71 × 63 × 16	DRC46P.35	DRC810	DRC810P	DRC820	DRC110	DRC222	DRC351	DRC646	DRC656	Request
DRC47.35	1810 × 1600 × 500	71 × 63 × 20	DRC47P.35	DRC810	DRC810P	DRC820	DRC110	DRC222	DRC352	DRC647	DRC657	Request
DRC48.35	1810 × 1600 × 600	71 × 63 × 24	DRC48P.35	DRC810	DRC810P	DRC820	DRC110	DRC222	DRC353	DRC648	DRC658	Request
DRC49.35	1810 × 1600 × 800	71 × 63 × 32	DRC49P.35	DRC810	DRC810P	DRC820	DRC110	DRC222	DRC354	DRC649	DRC659	Request
DRC50.35	1810 × 1600 × 1000	71 × 63 × 39	DRC50P.35	DRC810	DRC810P	DRC820	DRC110	DRC222	DRC355	DRC650	DRC660	Request

Height 2010 mm · 79 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Glass SKU	Door Solid	Door Glass	Back Panel	Front Int Plate	Side Int Plate	Side Pnl Pair	Plinth H100	Plinth H200	Quote
DRC2024.35	2010 × 200 × 400	79 × 8 × 16	—	DRC789	—	DRC794	—	—	DRC356	DRC531	DRC541	Request
DRC2025.35	2010 × 200 × 500	79 × 8 × 20	—	DRC789	—	DRC794	—	—	DRC357	DRC532	DRC542	Request
DRC2026.35	2010 × 200 × 600	79 × 8 × 24	—	DRC789	—	DRC794	—	—	DRC358	DRC533	DRC543	Request
DRC2028.35	2010 × 200 × 800	79 × 8 × 32	—	DRC789	—	DRC794	—	—	DRC359	DRC534	DRC544	Request
DRC2021.35	2010 × 200 × 1000	79 × 8 × 39	—	DRC789	—	DRC794	—	—	DRC360	DRC535	DRC545	Request
DRC155.35	2010 × 400 × 400	79 × 16 × 16	—	DRC799	—	DRC795	DRC119	DRC242	DRC356	DRC557	DRC562	Request
DRC156.35	2010 × 400 × 500	79 × 16 × 20	—	DRC799	—	DRC795	DRC119	DRC242	DRC357	DRC558	DRC563	Request
DRC157.35	2010 × 400 × 600	79 × 16 × 24	—	DRC799	—	DRC795	DRC119	DRC242	DRC358	DRC559	DRC564	Request
DRC158.35	2010 × 400 × 800	79 × 16 × 32	—	DRC799	—	DRC795	DRC119	DRC242	DRC359	DRC560	DRC565	Request
DRC159.35	2010 × 400 × 1000	79 × 16 × 39	—	DRC799	—	DRC795	DRC119	DRC242	DRC360	DRC561	DRC566	Request
DRC21.35	2010 × 600 × 400	79 × 24 × 16	DRC21P.35	DRC805	DRC805P	DRC815	DRC105	DRC223	DRC356	DRC601	DRC621	Request
DRC22.35	2010 × 600 × 500	79 × 24 × 20	DRC22P.35	DRC805	DRC805P	DRC815	DRC105	DRC223	DRC357	DRC602	DRC622	Request
DRC23.35	2010 × 600 × 600	79 × 24 × 24	DRC23P.35	DRC805	DRC805P	DRC815	DRC105	DRC223	DRC358	DRC603	DRC623	Request
DRC24.35	2010 × 600 × 800	79 × 24 × 32	DRC24P.35	DRC805	DRC805P	DRC815	DRC105	DRC223	DRC359	DRC604	DRC624	Request
DRC25.35	2010 × 600 × 1000	79 × 24 × 39	DRC25P.35	DRC805	DRC805P	DRC815	DRC105	DRC223	DRC360	DRC605	DRC625	Request
DRC26.35	2010 × 800 × 400	79 × 32 × 16	DRC26P.35	DRC806	DRC806P	DRC816	DRC106	DRC224	DRC356	DRC606	DRC626	Request
DRC27.35	2010 × 800 × 500	79 × 32 × 20	DRC27P.35	DRC806	DRC806P	DRC816	DRC106	DRC224	DRC357	DRC607	DRC627	Request
DRC28.35	2010 × 800 × 600	79 × 32 × 24	DRC28P.35	DRC806	DRC806P	DRC816	DRC106	DRC224	DRC358	DRC608	DRC628	Request
DRC29.35	2010 × 800 × 800	79 × 32 × 32	DRC29P.35	DRC806	DRC806P	DRC816	DRC106	DRC224	DRC359	DRC609	DRC629	Request
DRC30.35	2010 × 800 × 1000	79 × 32 × 39	DRC30P.35	DRC806	DRC806P	DRC816	DRC106	DRC224	DRC360	DRC610	DRC630	Request
DRC31.35	2010 × 1000 × 400	79 × 39 × 16	DRC31P.35	DRC807	DRC807P	DRC817	DRC107	DRC225	DRC356	DRC611	DRC631	Request
DRC32.35	2010 × 1000 × 500	79 × 39 × 20	DRC32P.35	DRC807	DRC807P	DRC817	DRC107	DRC225	DRC357	DRC612	DRC632	Request
DRC33.35	2010 × 1000 × 600	79 × 39 × 24	DRC33P.35	DRC807	DRC807P	DRC817	DRC107	DRC225	DRC358	DRC613	DRC633	Request
DRC34.35	2010 × 1000 × 800	79 × 39 × 32	DRC34P.35	DRC807	DRC807P	DRC817	DRC107	DRC225	DRC359	DRC614	DRC634	Request
DRC35.35	2010 × 1000 × 1000	79 × 39 × 39	DRC35P.35	DRC807	DRC807P	DRC817	DRC107	DRC225	DRC360	DRC615	DRC635	Request
DRC36.35	2010 × 1200 × 400	79 × 47 × 16	DRC36P.35	DRC808	DRC808P	DRC818	DRC108	DRC226	DRC356	DRC616	DRC636	Request
DRC37.35	2010 × 1200 × 500	79 × 47 × 20	DRC37P.35	DRC808	DRC808P	DRC818	DRC108	DRC226	DRC357	DRC617	DRC637	Request
DRC38.35	2010 × 1200 × 600	79 × 47 × 24	DRC38P.35	DRC808	DRC808P	DRC818	DRC108	DRC226	DRC358	DRC618	DRC638	Request
DRC39.35	2010 × 1200 × 800	79 × 47 × 32	DRC39P.35	DRC808	DRC808P	DRC818	DRC108	DRC226	DRC359	DRC619	DRC639	Request
DRC40.35	2010 × 1200 × 1000	79 × 47 × 39	DRC40P.35	DRC808	DRC808P	DRC818	DRC108	DRC226	DRC360	DRC620	DRC640	Request
DRC51.35	2010 × 1400 × 400	79 × 55 × 16	DRC51P.35	DRC809/2	DRC809/2P	DRC821	DRC111	DRC227	DRC356	DRC641	DRC651	Request
DRC52.35	2010 × 1400 × 500	79 × 55 × 20	DRC52P.35	DRC809/2	DRC809/2P	DRC821	DRC111	DRC227	DRC357	DRC642	DRC652	Request
DRC53.35	2010 × 1400 × 600	79 × 55 × 24	DRC53P.35	DRC809/2	DRC809/2P	DRC821	DRC111	DRC227	DRC358	DRC643	DRC653	Request
DRC54.35	2010 × 1400 × 800	79 × 55 × 32	DRC54P.35	DRC809/2	DRC809/2P	DRC821	DRC111	DRC227	DRC359	DRC644	DRC654	Request
DRC55.35	2010 × 1400 × 1000	79 × 55 × 39	DRC55P.35	DRC809/2	DRC809/2P	DRC821	DRC111	DRC227	DRC360	DRC645	DRC655	Request
DRC56.35	2010 × 1600 × 400	79 × 63 × 16	DRC56P.35	DRC810/2	DRC810/2P	DRC822	DRC112	DRC228	DRC356	DRC646	DRC656	Request
DRC57.35	2010 × 1600 × 500	79 × 63 × 20	DRC57P.35	DRC810/2	DRC810/2P	DRC822	DRC112	DRC228	DRC357	DRC647	DRC657	Request
DRC58.35	2010 × 1600 × 600	79 × 63 × 24	DRC58P.35	DRC810/2	DRC810/2P	DRC822	DRC112	DRC228	DRC358	DRC648	DRC658	Request
DRC59.35	2010 × 1600 × 800	79 × 63 × 32	DRC59P.35	DRC810/2	DRC810/2P	DRC822	DRC112	DRC228	DRC359	DRC649	DRC659	Request
DRC60.35	2010 × 1600 × 1000	79 × 63 × 39	DRC60P.35	DRC810/2	DRC810/2P	DRC822	DRC112	DRC228	DRC360	DRC650	DRC660	Request

Height 2210 mm · 87 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Glass SKU	Door Solid	Door Glass	Back Panel	Front Int Plate	Side Int Plate	Side Pnl Pair	Plinth H100	Plinth H200	Quote
DRC2224.35	2210 × 200 × 400	87 × 8 × 16	—	DRC790	—	DRC796	—	—	DRC361	DRC531	DRC541	Request
DRC2225.35	2210 × 200 × 500	87 × 8 × 20	—	DRC790	—	DRC796	—	—	DRC362	DRC532	DRC542	Request
DRC2226.35	2210 × 200 × 600	87 × 8 × 24	—	DRC790	—	DRC796	—	—	DRC363	DRC533	DRC543	Request
DRC2228.35	2210 × 200 × 800	87 × 8 × 32	—	DRC790	—	DRC796	—	—	DRC364	DRC534	DRC544	Request
DRC2221.35	2210 × 200 × 1000	87 × 8 × 39	—	DRC790	—	DRC796	—	—	DRC365	DRC535	DRC545	Request
DRC160.35	2210 × 400 × 400	87 × 16 × 16	—	DRC800	—	DRC797	DRC120	DRC244	DRC361	DRC557	DRC562	Request
DRC161.35	2210 × 400 × 500	87 × 16 × 20	—	DRC800	—	DRC797	DRC120	DRC244	DRC362	DRC558	DRC563	Request
DRC162.35	2210 × 400 × 600	87 × 16 × 24	—	DRC800	—	DRC797	DRC120	DRC244	DRC363	DRC559	DRC564	Request
DRC163.35	2210 × 400 × 800	87 × 16 × 32	—	DRC800	—	DRC797	DRC120	DRC244	DRC364	DRC560	DRC565	Request
DRC164.35	2210 × 400 × 1000	87 × 16 × 39	—	DRC800	—	DRC797	DRC120	DRC244	DRC365	DRC561	DRC566	Request
DRC61.35	2210 × 600 × 400	87 × 24 × 16	DRC61P.35	DRC810/3	DRC810/3P	DRC823	DRC113	DRC229	DRC361	DRC601	DRC621	Request
DRC62.35	2210 × 600 × 500	87 × 24 × 20	DRC62P.35	DRC810/3	DRC810/3P	DRC823	DRC113	DRC229	DRC362	DRC602	DRC622	Request
DRC63.35	2210 × 600 × 600	87 × 24 × 24	DRC63P.35	DRC810/3	DRC810/3P	DRC823	DRC113	DRC229	DRC363	DRC603	DRC623	Request
DRC64.35	2210 × 600 × 800	87 × 24 × 32	DRC64P.35	DRC810/3	DRC810/3P	DRC823	DRC113	DRC229	DRC364	DRC604	DRC624	Request
DRC65.35	2210 × 600 × 1000	87 × 24 × 39	DRC65P.35	DRC810/3	DRC810/3P	DRC823	DRC113	DRC229	DRC365	DRC605	DRC625	Request
DRC66.35	2210 × 800 × 400	87 × 32 × 16	DRC66P.35	DRC810/4	DRC810/4P	DRC824	DRC114	DRC230	DRC361	DRC606	DRC626	Request
DRC67.35	2210 × 800 × 500	87 × 32 × 20	DRC67P.35	DRC810/4	DRC810/4P	DRC824	DRC114	DRC230	DRC362	DRC607	DRC627	Request
DRC68.35	2210 × 800 × 600	87 × 32 × 24	DRC68P.35	DRC810/4	DRC810/4P	DRC824	DRC114	DRC230	DRC363	DRC608	DRC628	Request
DRC69.35	2210 × 800 × 800	87 × 32 × 32	DRC69P.35	DRC810/4	DRC810/4P	DRC824	DRC114	DRC230	DRC364	DRC609	DRC629	Request
DRC70.35	2210 × 800 × 1000	87 × 32 × 39	DRC70P.35	DRC810/4	DRC810/4P	DRC824	DRC114	DRC230	DRC365	DRC610	DRC630	Request
DRC71.35	2210 × 1000 × 400	87 × 39 × 16	DRC71P.35	DRC810/5	DRC810/5P	DRC825	DRC115	DRC231	DRC361	DRC611	DRC631	Request
DRC72.35	2210 × 1000 × 500	87 × 39 × 20	DRC72P.35	DRC810/5	DRC810/5P	DRC825	DRC115	DRC231	DRC362	DRC612	DRC632	Request
DRC73.35	2210 × 1000 × 600	87 × 39 × 24	DRC73P.35	DRC810/5	DRC810/5P	DRC825	DRC115	DRC231	DRC363	DRC613	DRC633	Request
DRC74.35	2210 × 1000 × 800	87 × 39 × 32	DRC74P.35	DRC810/5	DRC810/5P	DRC825	DRC115	DRC231	DRC364	DRC614	DRC634	Request
DRC75.35	2210 × 1000 × 1000	87 × 39 × 39	DRC75P.35	DRC810/5	DRC810/5P	DRC825	DRC115	DRC231	DRC365	DRC615	DRC635	Request
DRC76.35	2210 × 1200 × 400	87 × 47 × 16	DRC76P.35	DRC810/6	DRC810/6P	DRC826	DRC116	DRC232	DRC361	DRC616	DRC636	Request
DRC77.35	2210 × 1200 × 500	87 × 47 × 20	DRC77P.35	DRC810/6	DRC810/6P	DRC826	DRC116	DRC232	DRC362	DRC617	DRC637	Request
DRC78.35	2210 × 1200 × 600	87 × 47 × 24	DRC78P.35	DRC810/6	DRC810/6P	DRC826	DRC116	DRC232	DRC363	DRC618	DRC638	Request
DRC79.35	2210 × 1200 × 800	87 × 47 × 32	DRC79P.35	DRC810/6	DRC810/6P	DRC826	DRC116	DRC232	DRC364	DRC619	DRC639	Request
DRC80.35	2210 × 1200 × 1000	87 × 47 × 39	DRC80P.35	DRC810/6	DRC810/6P	DRC826	DRC116	DRC232	DRC365	DRC620	DRC640	Request
DRC82.35	2210 × 1400 × 500	87 × 55 × 20	DRC82P.35	DRC810/7	DRC810/7P	DRC827	DRC117	DRC233	DRC362	DRC642	DRC652	Request
DRC83.35	2210 × 1400 × 600	87 × 55 × 24	DRC83P.35	DRC810/7	DRC810/7P	DRC827	DRC117	DRC233	DRC363	DRC643	DRC653	Request
DRC84.35	2210 × 1400 × 800	87 × 55 × 32	DRC84P.35	DRC810/7	DRC810/7P	DRC827	DRC117	DRC233	DRC364	DRC644	DRC654	Request
DRC87.35	2210 × 1600 × 500	87 × 63 × 20	DRC87P.35	DRC810/8	DRC810/8P	DRC828	DRC118	DRC234	DRC362	DRC647	DRC657	Request
DRC88.35	2210 × 1600 × 600	87 × 63 × 24	DRC88P.35	DRC810/8	DRC810/8P	DRC828	DRC118	DRC234	DRC363	DRC648	DRC658	Request
DRC89.35	2210 × 1600 × 800	87 × 63 × 32	DRC89P.35	DRC810/8	DRC810/8P	DRC828	DRC118	DRC234	DRC364	DRC649	DRC659	Request

Catalog source: Tecnomatic Enclosures Brochure (2026) pp 18–22. Custom sizes, finishes, and configurations on request.

Stainless steel structures available — add suffix SS to any part number (e.g., DRC1 → DRC1SS). Add suffix .35 for RAL 7035 textured finish.

Download Brochure

Reference

Explore the full accessory range

Cabinet & Console Accessories — plinths, panels, doors, hardware

Related Series

You may also need

VFR — Monobloc Cabinets

View →

KM-KQ — Economic Monobloc

View →

Cabinet & Console Accessories

View →

Use Cases

Typical Applications

Switchgear lineups

Multi-cabinet LV switchgear suites with joined DRC bays.

Industrial automation

PLC, drives, IO, and safety-controller cabinets in production cells.

Process control

Chemical, food, oil & gas, pharma process-control cabinets.

Datacenter / IT racks

Server and network rack adjacencies in industrial environments.

Stainless steel structures available — add suffix SS to any part number (e.g., DRC1 → DRC1SS). Add suffix .35 for RAL 7035 textured finish.

Enclosures for indoor use only — contact our technical department for outdoor use.

Get a Quote

Request a Quote — DRC

Contact us for pricing, lead times, and application engineering. Full certification documentation provided with every order.

203-359-9036 tecno@tecnomatic.com
