Series

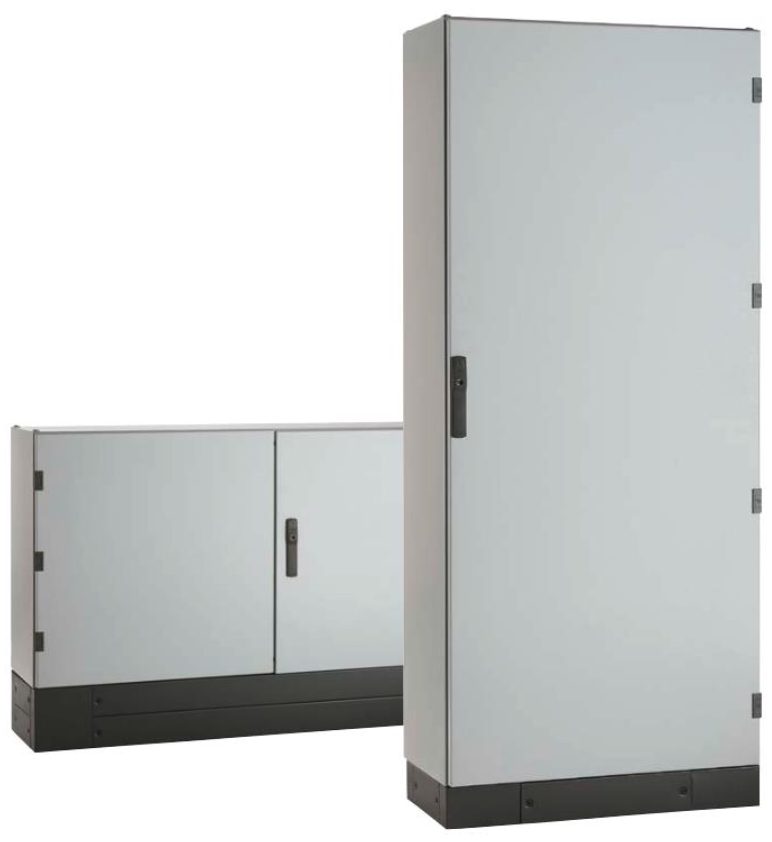

KM-KQ — Economic Monobloc Cabinets

Economic cabinet system with monobloc structure and solid door.

IP66UL/cULCEREACHRoHSRINA

Economic cabinet system with monobloc structure and solid door. Bottom panel includes cable entry flange. Side panels, roof, and back panel are completely welded for maximum rigidity. KM denotes the vertical (taller, narrower) form factor; KQ denotes the horizontal (shorter, wider) form factor. Both share construction and accessories.

Key Features

▸Solid-door cabinet with monobloc structure
▸Bottom panel with cable entry flange
▸Fully welded side panels, roof, and back panel
▸Non-adjustable 2.5 mm FeZn internal plate (factory-installed)
▸Plinth application configuration
▸Stainless steel version available — contact for SKU

IP Rating

IP66

Material

1.5 / 1.8 mm carbon steel sheet · RAL 7035 textured (body) + RAL 7009 textured (plinth) · Stainless steel version available

Mounting

Floor-standing monobloc; plinth-mount ready

Standards

Certifications & Compliance

▸IP66 (CEI EN 62208 / CEI EN 60529, internal use)

IP66UL/cULCEREACHRoHSRINA

Models & Specifications

Available Models

Height 600 mm · 24 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Plinth H100	Plinth H200	Quote
KQ1264.35	600 × 1200 × 400	24 × 47 × 16	DRC616	DRC636	Request
KQ1464.35	600 × 1400 × 400	24 × 55 × 16	DRC641	DRC651	Request
KQ1664.35	600 × 1600 × 400	24 × 63 × 16	DRC646	DRC656	Request

Height 800 mm · 31 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Plinth H100	Plinth H200	Quote
KQ-1284	800 × 1200 × 400	31 × 47 × 16	DRC616	DRC636	Request
KQ1484.35	800 × 1400 × 400	31 × 55 × 16	DRC641	DRC651	Request
KQ1684.35	800 × 1600 × 400	31 × 63 × 16	DRC646	DRC656	Request
KQ1884.35	800 × 1800 × 400	31 × 71 × 16	DRC666	DRC668	Request
KQ2084.35	800 × 2000 × 400	31 × 79 × 16	DRC667	DRC669	Request

Height 1000 mm · 39 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Plinth H100	Plinth H200	Quote
KQ12104.35	1000 × 1200 × 400	39 × 47 × 16	DRC616	DRC636	Request
KQ14104.35	1000 × 1400 × 400	39 × 55 × 16	DRC641	DRC651	Request
KQ16104.35	1000 × 1600 × 400	39 × 63 × 16	DRC646	DRC656	Request
KQ18104.35	1000 × 1800 × 400	39 × 71 × 16	DRC666	DRC668	Request
KQ20104.35	1000 × 2000 × 400	39 × 79 × 16	DRC667	DRC669	Request

Height 1400 mm · 55 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Plinth H100	Plinth H200	Quote
KM6144.35	1400 × 600 × 400	55 × 24 × 16	DRC601	DRC621	Request
KM-8144.35	1400 × 800 × 400	55 × 31 × 16	DRC606	DRC626	Request
KM10144.35	1400 × 1000 × 400	55 × 39 × 16	DRC611	DRC631	Request

Height 1600 mm · 63 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Plinth H100	Plinth H200	Quote
KM6164.35	1600 × 600 × 400	63 × 24 × 16	DRC601	DRC621	Request
KM8164.35	1600 × 800 × 400	63 × 31 × 16	DRC606	DRC626	Request
KM-10164.35	1600 × 1000 × 400	63 × 39 × 16	DRC611	DRC631	Request

Height 1800 mm · 71 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Plinth H100	Plinth H200	Quote
KM6184.35	1800 × 600 × 400	71 × 24 × 16	DRC601	DRC621	Request
KM8184.35	1800 × 800 × 400	71 × 31 × 16	DRC606	DRC626	Request
KM10184.35	1800 × 1000 × 400	71 × 39 × 16	DRC611	DRC631	Request

Height 2000 mm · 79 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Plinth H100	Plinth H200	Quote
KM6204.35	2000 × 600 × 400	79 × 24 × 16	DRC601	DRC621	Request
KM8204.35	2000 × 800 × 400	79 × 31 × 16	DRC606	DRC626	Request
KM10204.35	2000 × 1000 × 400	79 × 39 × 16	DRC611	DRC631	Request

Catalog source: Tecnomatic Enclosures Brochure (2026) pp 25–26. Custom sizes, finishes, and configurations on request.

Stainless steel version available — contact for SKU. (Suffix convention not enumerated in brochure.) Standard finish: epoxy-polyester thermosetting powder, RAL 7035 (.35 suffix).

Download Brochure

Reference

Explore the full accessory range

Cabinet & Console Accessories — plinths, panels, doors, hardware

Related Series

You may also need

DRC — Modular Cabinets

View →

VFR — Monobloc Cabinets

View →

Cabinet & Console Accessories

View →

Use Cases

Typical Applications

Cost-driven projects

Where DRC's modular reconfigurability isn't required.

Fixed installations

Cabinets that won't be reconfigured post-install.

OEM ship-and-install

OEMs needing the most cost-effective robust cabinet.

Replacement panels

Drop-in replacements for legacy KM/KQ deployments.

Stainless steel version available — contact for SKU. (Suffix convention not enumerated in brochure.) Standard finish: epoxy-polyester thermosetting powder, RAL 7035 (.35 suffix).

Enclosures for indoor use only — contact our technical department for outdoor use.
