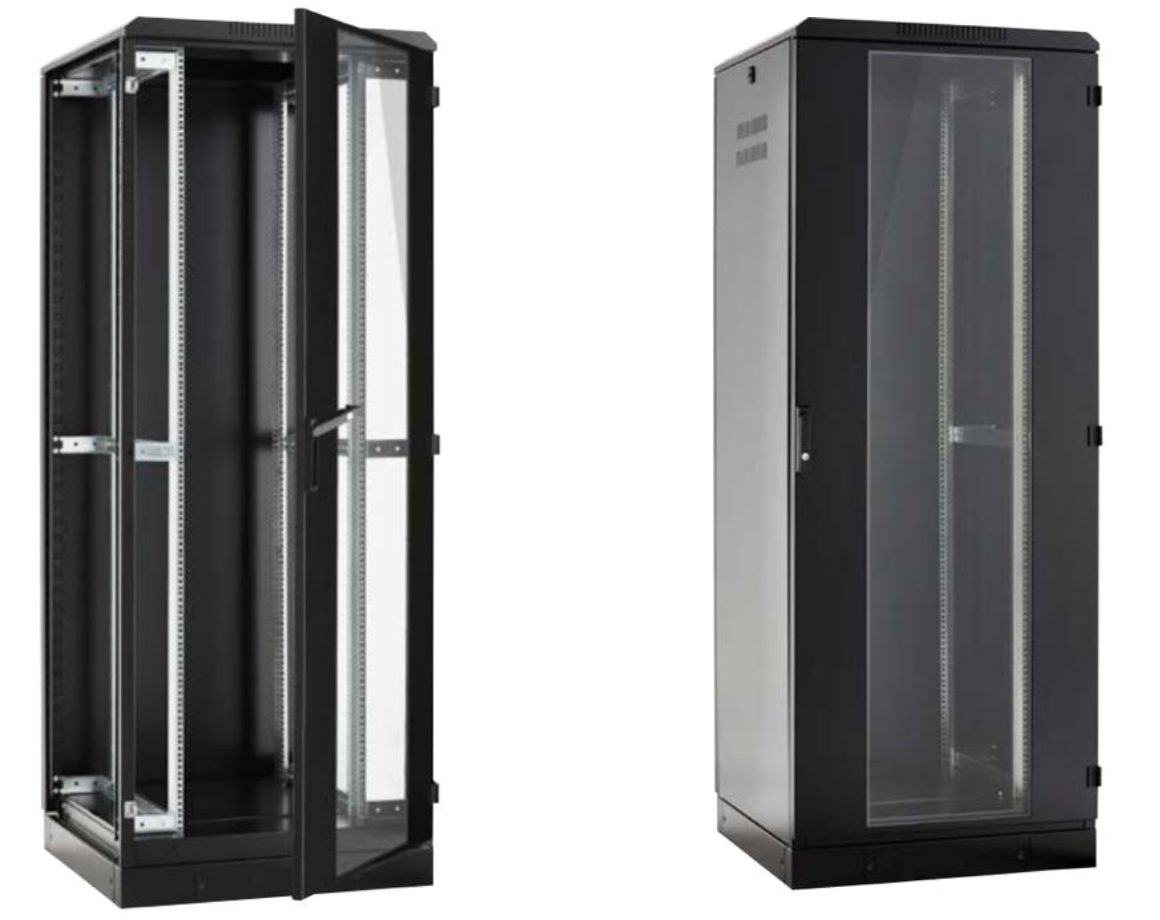

TCF — 19" Network Rack Cabinets

Floor-standing 19" rack cabinets for network, telephony, and data plant.

REACHCERoHS

Floor-standing cabinets for networks, telephony, and data transmission plant. Solid structure with a 180° opening crystal door and RACK 19" pitch drilled columns. Side and back panels are removable, with a quick-release locking system. Plinths, wheels, and levelling feet installation configuration. Available from 22U to 48U.

Key Features

▸180° opening crystal door
▸RACK 19" pitch drilled mounting columns
▸Removable side and back panels, quick-release locking system
▸Plinth, wheels, and levelling-feet installation options
▸Five heights: 22U / 30U / 36U / 42U / 48U

IP Rating

—

Material

1.5 mm carbon steel sheet · RAL 9005 matt textured (body) + RAL 6033 textured (plinth)

Mounting

Floor-standing · plinth / wheels / levelling feet

Standards

Certifications & Compliance

REACHCERoHS

Models & Specifications

Available Models

Height 1092 mm · 43 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Rack Units (HE)	Plinth H100	Quote
TCF2266	1092 × 610 × 610	43 × 24 × 24	22U	TCF6160	Request
TCF2268	1092 × 610 × 787	43 × 24 × 31	22U	TCF6180	Request
TCF2286	1092 × 787 × 610	43 × 31 × 24	22U	TCF8160	Request
TCF2288	1092 × 787 × 787	43 × 31 × 31	22U	TCF8180	Request

Height 1473 mm · 58 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Rack Units (HE)	Plinth H100	Quote
TCF3066	1473 × 610 × 610	58 × 24 × 24	30U	TCF6160	Request
TCF3068	1473 × 610 × 787	58 × 24 × 31	30U	TCF6180	Request
TCF3086	1473 × 787 × 610	58 × 31 × 24	30U	TCF8160	Request
TCF3088	1473 × 787 × 787	58 × 31 × 31	30U	TCF8180	Request

Height 1727 mm · 68 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Rack Units (HE)	Plinth H100	Quote
TCF3666	1727 × 610 × 610	68 × 24 × 24	36U	TCF6160	Request
TCF3668	1727 × 610 × 787	68 × 24 × 31	36U	TCF6180	Request
TCF3686	1727 × 787 × 610	68 × 31 × 24	36U	TCF8160	Request
TCF3688	1727 × 787 × 787	68 × 31 × 31	36U	TCF8180	Request

Height 2007 mm · 79 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Rack Units (HE)	Plinth H100	Quote
TCF4266	2007 × 610 × 610	79 × 24 × 24	42U	TCF6160	Request
TCF4268	2007 × 610 × 787	79 × 24 × 31	42U	TCF6180	Request
TCF4286	2007 × 787 × 610	79 × 31 × 24	42U	TCF8160	Request
TCF4288	2007 × 787 × 787	79 × 31 × 31	42U	TCF8180	Request

Height 2261 mm · 89 in

Box SKU	Dimensions (mm) H × W × D	Dimensions (in) H × W × D	Rack Units (HE)	Plinth H100	Quote
TCF4866	2261 × 610 × 610	89 × 24 × 24	48U	TCF6160	Request
TCF4868	2261 × 610 × 787	89 × 24 × 31	48U	TCF6180	Request
TCF4886	2261 × 787 × 610	89 × 31 × 24	48U	TCF8160	Request
TCF4888	2261 × 787 × 787	89 × 31 × 31	48U	TCF8180	Request

Catalog source: Tecnomatic Enclosures Brochure (2026) p 39. Custom sizes, finishes, and configurations on request.

Standard finish RAL 9005 matt textured; add suffix .35 to the order code for RAL 7035 textured. Plinth (H100, RAL 6033) ordered separately per size. 19" rack equipment — not a sealed IP-rated enclosure (no IP66 / IK10 / UL claimed in the catalog). Dimensions converted from nominal inches (1 in = 25.4 mm).
