TCW — 19" Wall-Mount Enclosures

Wall-mounting 19" rack enclosures — P400 fixed and P525 hinged-back variants.

CERoHS
TCW — 19" Wall-Mount Enclosures

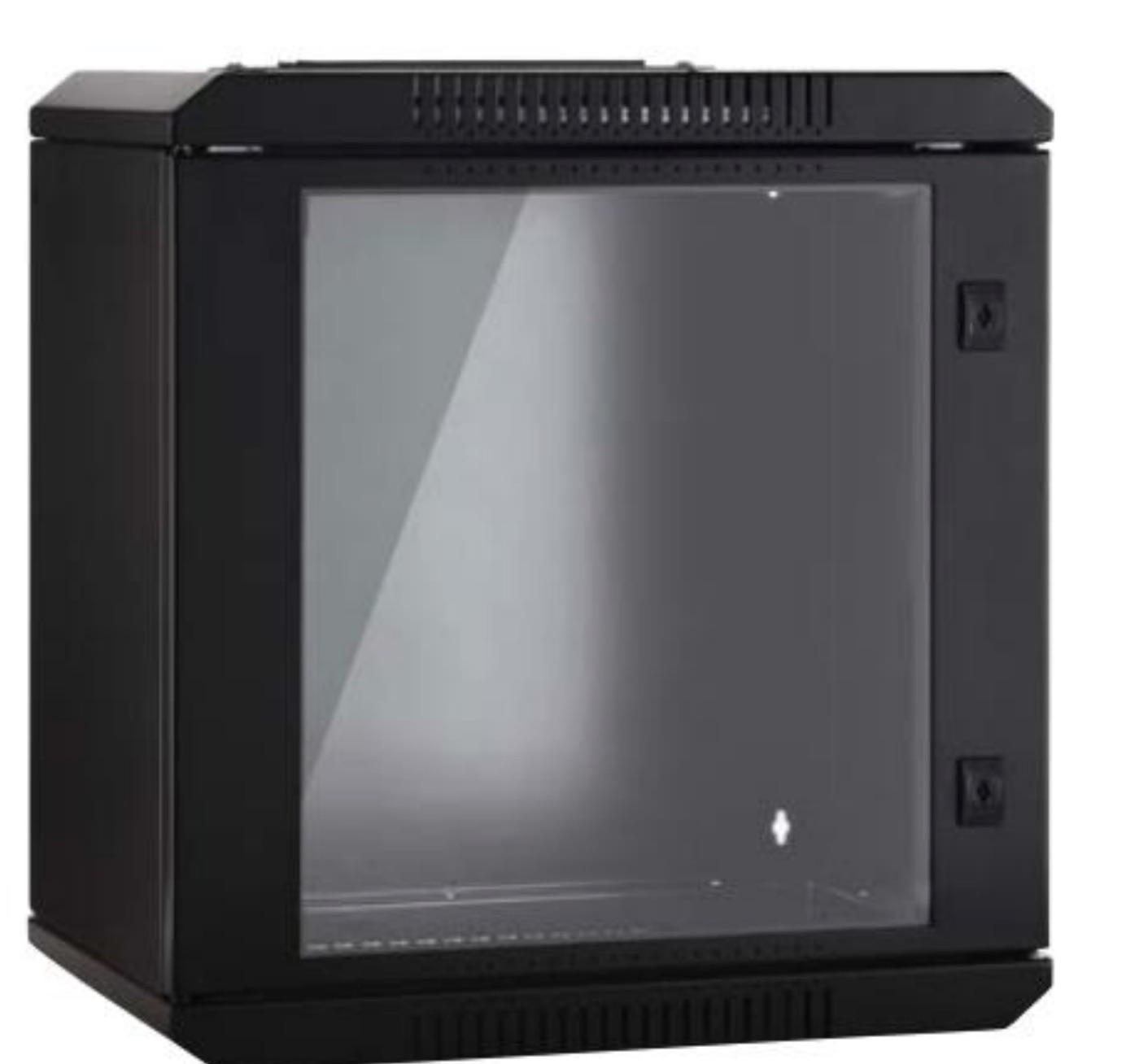

Wall-mounting 19" rack enclosures. Welded monobloc structure hanging boxes with a crystal door and RACK 19" drilled internal frame, depth-adjustable with 1" pitch, and flanges on the top and bottom bases (one with a grommet brush). Available in two configurations: TCW P400 (one-piece welded box) and TCW P525 (main element hinged to the back section for rear access). 6U to 18U.

Key Features

  • ▸Welded monobloc hanging-box structure
  • ▸Crystal door · RACK 19" drilled internal frame
  • ▸Depth-adjustable with 1" pitch
  • ▸Top and bottom base flanges, one with a grommet brush
  • ▸Two configurations: P400 (fixed) and P525 (hinged back section)

IP Rating

—

Material

1.5 mm carbon steel sheet · RAL 9005 matt textured

Mounting

Wall-mounting

Standards

Certifications & Compliance

CERoHS

Models & Specifications

Available Models

Height 356 mm · 14 in
Box SKUDimensions (mm) H × W × DDimensions (in) H × W × DRack Units (HE)Quote
TCW0664356 × 610 × 40614 × 24 × 166U
Request
TCW0665356 × 610 × 50814 × 24 × 206U
Request
Height 508 mm · 20 in
Box SKUDimensions (mm) H × W × DDimensions (in) H × W × DRack Units (HE)Quote
TCW0964508 × 610 × 40620 × 24 × 169U
Request
TCW0965508 × 610 × 50820 × 24 × 209U
Request
Height 635 mm · 25 in
Box SKUDimensions (mm) H × W × DDimensions (in) H × W × DRack Units (HE)Quote
TCW1264635 × 610 × 40625 × 24 × 1612U
Request
TCW1265635 × 610 × 50825 × 24 × 2012U
Request
Height 762 mm · 30 in
Box SKUDimensions (mm) H × W × DDimensions (in) H × W × DRack Units (HE)Quote
TCW1564762 × 610 × 40630 × 24 × 1615U
Request
TCW1565762 × 610 × 50830 × 24 × 2015U
Request
Height 889 mm · 35 in
Box SKUDimensions (mm) H × W × DDimensions (in) H × W × DRack Units (HE)Quote
TCW1864889 × 610 × 40635 × 24 × 1618U
Request
TCW1865889 × 610 × 50835 × 24 × 2018U
Request

Catalog source: Tecnomatic Enclosures Brochure (2026) p 40. Custom sizes, finishes, and configurations on request.

Two configurations: TCW P400 (16 in deep, codes ending …64, one-piece welded box) and TCW P525 (20 in deep, codes ending …65, main element hinged to the back section for rear access). Standard finish RAL 9005 matt textured. 19" rack equipment — not a sealed IP-rated enclosure (no IP66 / IK10 / UL claimed in the catalog). Dimensions converted from nominal inches (1 in = 25.4 mm).

Download Brochure

Reference

Explore the full accessory range

Cabinet & Console Accessories — plinths, panels, doors, hardware

Related Series

You may also need

TCF — 19" Network Rack Cabinets

View →

DRC-LAN — Modular PC Cabinets

View →

Cabinet & Console Accessories

View →

Use Cases

Typical Applications

Wall-mount network points

Compact 19" wall enclosures for network and data drops.

Distributed comms

Floor-distributed comms cabinets where floor space is limited.

Edge IT

Small edge-IT and patch-panel installations mounted on the wall.

Two configurations: TCW P400 (16 in deep, codes ending …64, one-piece welded box) and TCW P525 (20 in deep, codes ending …65, main element hinged to the back section for rear access). Standard finish RAL 9005 matt textured. 19" rack equipment — not a sealed IP-rated enclosure (no IP66 / IK10 / UL claimed in the catalog). Dimensions converted from nominal inches (1 in = 25.4 mm).

Enclosures for indoor use only — contact our technical department for outdoor use.
