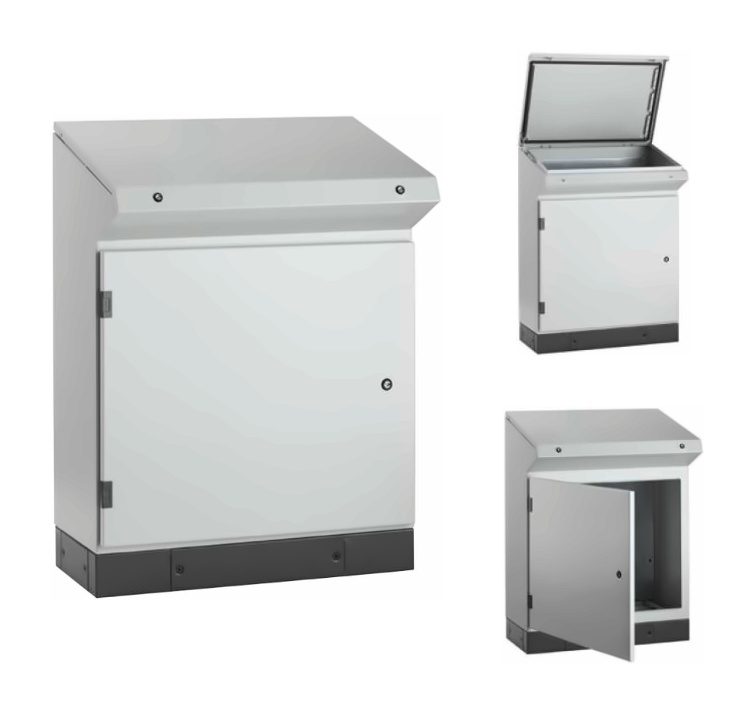

LM — Economic Monobloc Console
Monobloc control console with 14° tilt desk — economical one-piece design.
Monobloc control console with the same characteristics and dimensions as the LVE model at a more economical price point. Features a 14° tilt desk with open-position retainer, a cable-entry flange on the bottom, and a 2 mm FeZn fixed internal plate. Plinth application configuration.
Key Features
- ▸Monobloc (one-piece) economical console
- ▸14° tilt desk with open-position retainer
- ▸Cable-entry flange on the bottom
- ▸2 mm FeZn fixed internal plate
- ▸Plinth application configuration
IP Rating
IP66
Material
1.5 mm carbon steel sheet · RAL 7035 textured (body) + RAL 7009 textured (plinth) + RAL 6033 textured (profiles)
IK Rating
IK10
Mounting
Plinth-mount (H100 / H200)
Standards
Certifications & Compliance
- ▸IP66 (CEI EN 62208 / CEI EN 60529, internal use)
- ▸IK10 (CEI EN 62208 / CEI EN 62262)
Models & Specifications
Available Models
| Box SKU | Dimensions (mm) H × W × D | Dimensions (in) H × W × D | Plinth H100 | Plinth H200 | Quote |
|---|---|---|---|---|---|
| LM6014.35 | 991 × 610 × 406 | 39 × 24 × 16 | DRC601 | DRC621 | |
| LM8014.35 | 991 × 787 × 406 | 39 × 31 × 16 | DRC606 | DRC626 | |
| LM10014.35 | 991 × 991 × 406 | 39 × 39 × 16 | DRC611 | DRC631 | |
| LM1214.35 | 991 × 1194 × 406 | 39 × 47 × 16 | DRC616 | DRC636 | |
| LM1614.35 | 991 × 1600 × 406 | 39 × 63 × 16 | DRC646 | DRC656 |
Catalog source: Tecnomatic Enclosures Brochure (2026) p 35. Custom sizes, finishes, and configurations on request.
LM6014 / LM8014 / LM10014 are single-door; LM1214 / LM1614 are two-door. Same characteristics and dimensions as the LVE model at a more economical price point. Add suffix .35 for RAL 7035 textured finish. Dimensions converted from nominal inches (1 in = 25.4 mm).
Use Cases
Typical Applications
Operator control desks
Cost-driven seated operator stations on the plant floor.
Machine-side HMI
Local HMI consoles at machine and line side.
Inspection / QC stations
Quality-control and inspection desks needing a protected enclosure.
LM6014 / LM8014 / LM10014 are single-door; LM1214 / LM1614 are two-door. Same characteristics and dimensions as the LVE model at a more economical price point. Add suffix .35 for RAL 7035 textured finish. Dimensions converted from nominal inches (1 in = 25.4 mm).
Enclosures for indoor use only — contact our technical department for outdoor use.
