Series

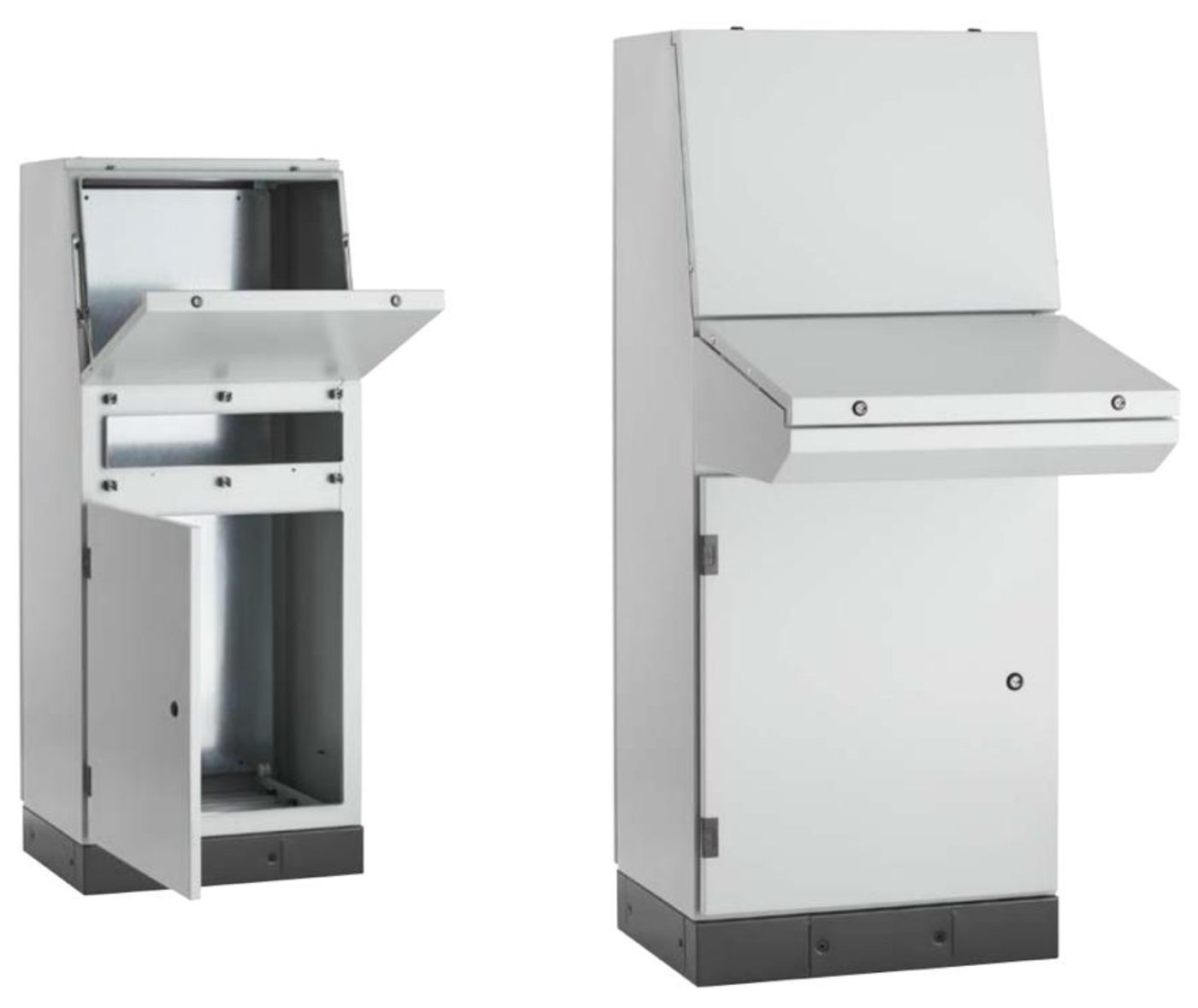

LVM — Monobloc Console
Monobloc console with 12° tilt desk and 70° tilt top plate.
Monobloc control console with a 12° tilt desk and 70° tilt top plate, both with open-position retainer. Features a cable-entry flange on the bottom, a single back panel up to 39 in wide (hinged door for 47–63 in widths), and a 2 mm FeZn single internal plate that is depth-adjustable. Plinth application configuration.
Key Features
- ▸Monobloc console with 12° tilt desk + 70° tilt top plate
- ▸Both surfaces with open-position retainer
- ▸Single back panel up to 39 in; hinged door for 47–63 in
- ▸2 mm FeZn single internal plate, depth-adjustable
- ▸Cable-entry flange on the bottom; plinth application configuration
IP Rating
IP66
Material
1.5 mm carbon steel sheet · RAL 7035 textured (body) + RAL 7009 textured (plinth) + RAL 6033 textured (profiles)
IK Rating
IK10
Mounting
Plinth-mount (H100 / H200)
Standards
Certifications & Compliance
- ▸IP66 (CEI EN 62208 / CEI EN 60529, internal use)
- ▸IK10 (CEI EN 62208 / CEI EN 62262)
Models & Specifications
Available Models
| Box SKU | Dimensions (mm) H × W × D | Dimensions (in) H × W × D | Plinth H100 | Plinth H200 | Quote |
|---|---|---|---|---|---|
| LVM6145.35 | 1372 × 610 × 508 | 54 × 24 × 20 | DRC602 | DRC622 | |
| LVM8145.35 | 1372 × 787 × 508 | 54 × 31 × 20 | DRC607 | DRC627 | |
| LVM10145.35 | 1372 × 991 × 508 | 54 × 39 × 20 | DRC612 | DRC632 | |
| LVM12145.35 | 1372 × 1194 × 508 | 54 × 47 × 20 | DRC617 | DRC637 | |
| LVM16145.35 | 1372 × 1600 × 508 | 54 × 63 × 20 | DRC647 | DRC657 |
Catalog source: Tecnomatic Enclosures Brochure (2026) p 36. Custom sizes, finishes, and configurations on request.
SKUs shown are the complete unit with internal plate (e.g., LVM6145); a screwed plain-front variant is available (e.g., LVM61). Single back panel up to 39 in wide; hinged door for 47–63 in widths. Add suffix .35 for RAL 7035 textured finish. Dimensions converted from nominal inches (1 in = 25.4 mm).
Use Cases
Typical Applications
Operator control desks
Standard seated operator stations with dual work surfaces.
Control-room HMI
HMI / SCADA workstations in process control rooms.
Automation cells
Cell-level supervision consoles in automated production.
SKUs shown are the complete unit with internal plate (e.g., LVM6145); a screwed plain-front variant is available (e.g., LVM61). Single back panel up to 39 in wide; hinged door for 47–63 in widths. Add suffix .35 for RAL 7035 textured finish. Dimensions converted from nominal inches (1 in = 25.4 mm).
Enclosures for indoor use only — contact our technical department for outdoor use.
