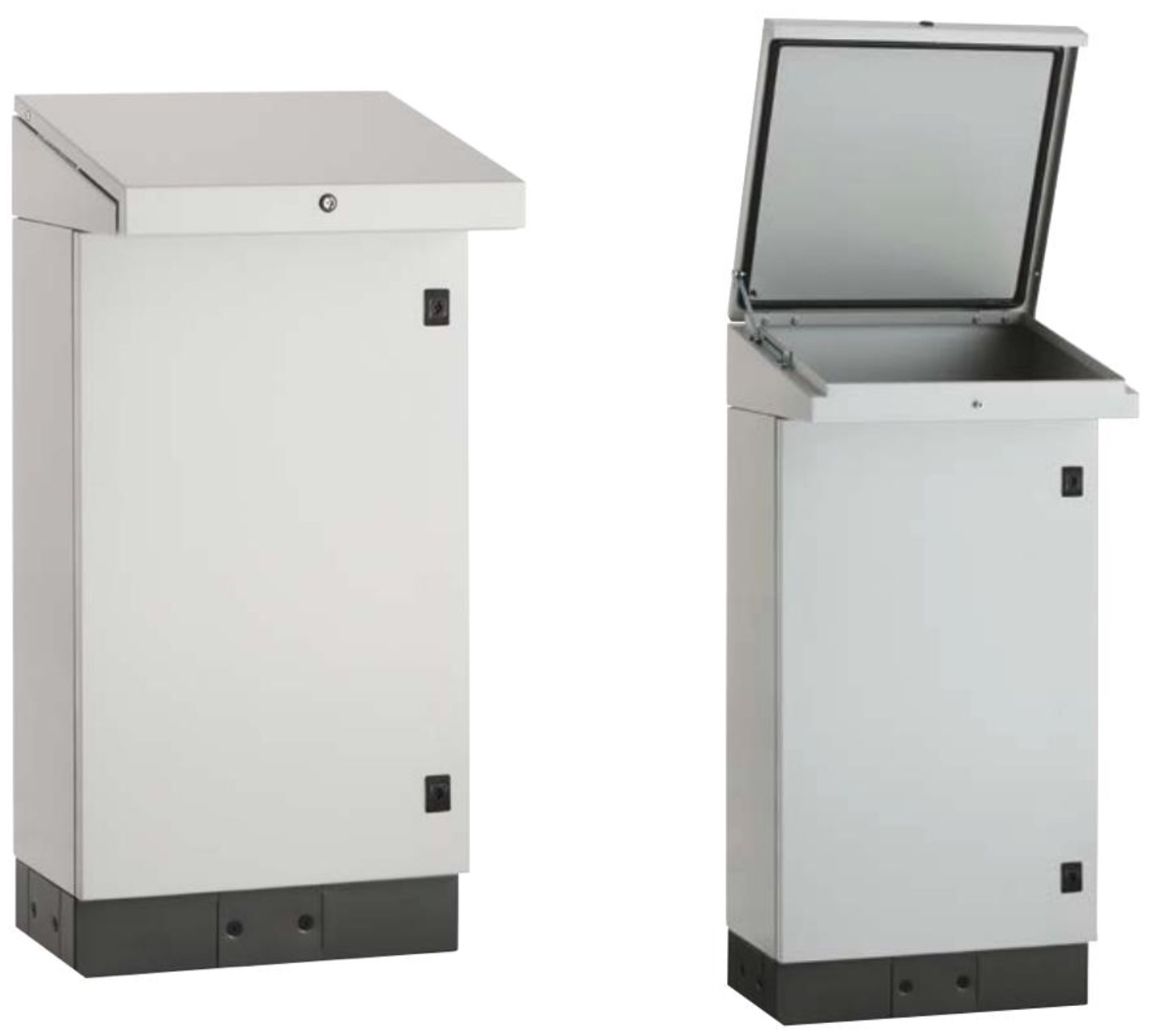

LVD93 — Compact Control Console
Compact control console with 12° tilt hinged desk — H100 plinth included.
Compact control console. 12° tilt hinged desk with open-position retainer; bottom base depth 12 in; bottom cable-entry flange; 2 mm FeZn fixed internal plate; H100 plinth included.
Key Features
- ▸12° tilt hinged desk with open-position retainer
- ▸Bottom cable-entry flange
- ▸2 mm FeZn fixed internal plate
- ▸H100 plinth included
- ▸Compact footprint for tight operator stations
IP Rating
IP66
Material
1.5 mm carbon steel sheet · RAL 7035 textured (body) + RAL 7009 textured (plinth) + RAL 6033 textured (profiles)
IK Rating
IK10
Mounting
Floor-standing (H100 plinth included)
Standards
Certifications & Compliance
- ▸IP66 (CEI EN 62208 / CEI EN 60529, internal use)
- ▸IK10 (CEI EN 62208 / CEI EN 62262)
Models & Specifications
Available Models
Catalog source: Tecnomatic Enclosures Brochure (2026) p 38. Custom sizes, finishes, and configurations on request.
All models are single-door. H100 plinth included. Add suffix .35 for RAL 7035 textured finish. Dimensions converted from nominal inches (1 in = 25.4 mm).
Use Cases
Typical Applications
Operator control desks
Compact seated operator stations with integrated plinth.
Machine-side HMI
Local HMI consoles at machine and line side.
Inspection / QC stations
Quality-control desks in space-constrained areas.
All models are single-door. H100 plinth included. Add suffix .35 for RAL 7035 textured finish. Dimensions converted from nominal inches (1 in = 25.4 mm).
Enclosures for indoor use only — contact our technical department for outdoor use.
