LV — Modular Control Console

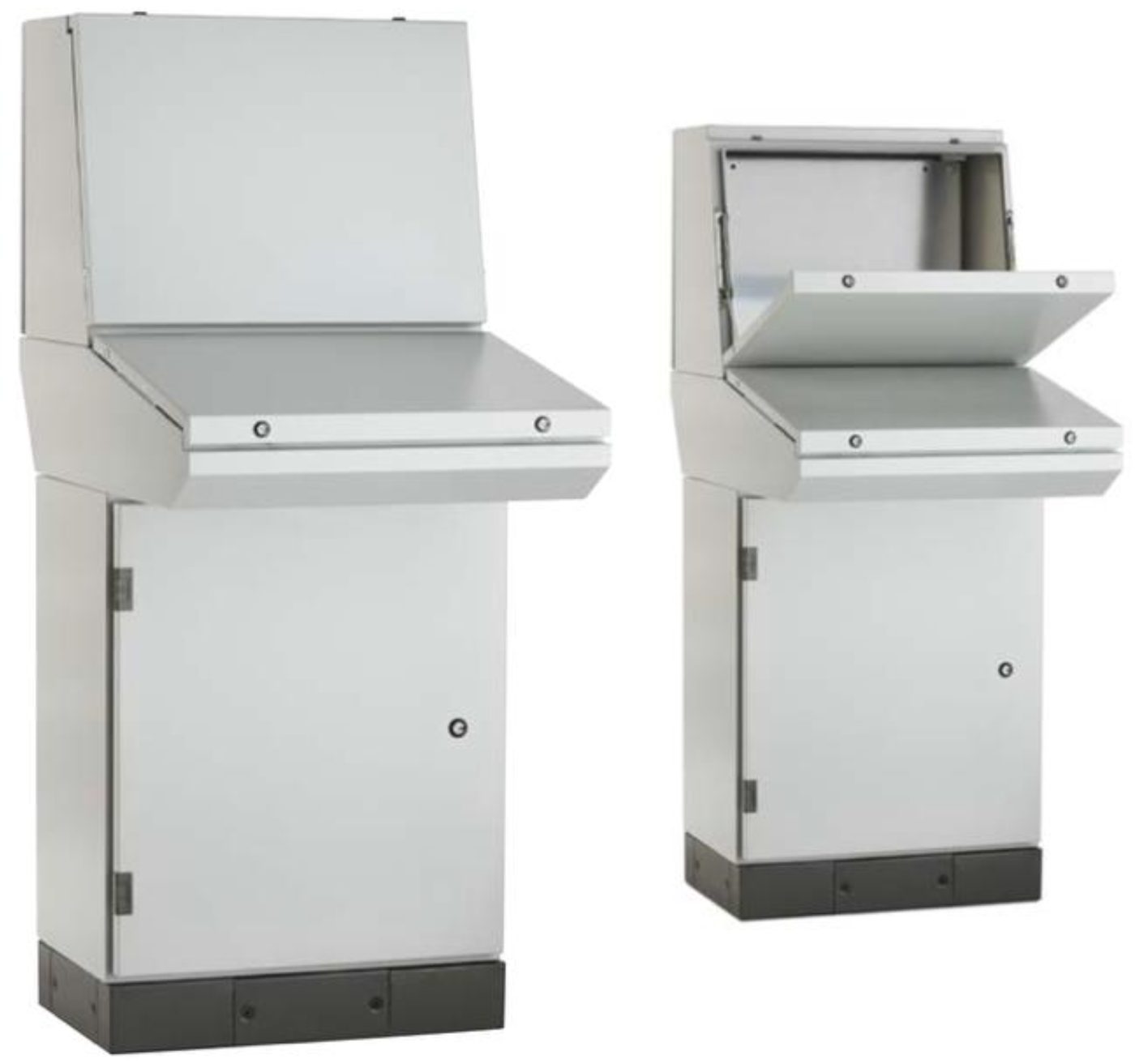

Modular operator console — lower base, 12° tilt desk, and 70° tilt top plate.
Modular control console for operator desks and HMI workstations. The base includes a hinged front door and fixed back panel, a cable-entry flange, and an adjustable 2 mm FeZn internal plate. A 12° tilt desk and 70° tilt top plate (both with open-position retainer) complete the ergonomic console. Plinth application configuration. The sizes below are the orderable lower-base / vertical-top-plate units (LV101–LV105 at 16 in deep, LV111–LV115 at 20 in deep). Build a complete console by adding the intermediate desk and top-plate components listed in the footnote.
Key Features
- ▸Modular console — lower base + intermediate desk + top plate
- ▸Hinged front door, fixed back panel
- ▸12° tilt desk and 70° tilt top plate with open-position retainer
- ▸Adjustable 2 mm FeZn internal plate, cable-entry flange
- ▸Plinth application configuration; stainless structures available (suffix SS)
IP Rating
IP66
Material
1.5 mm carbon steel sheet · RAL 7035 textured (body) + RAL 7009 textured (plinth) + RAL 6033 textured (profiles)
IK Rating
IK10
Mounting
Plinth-mount (H100 / H200)
Standards
Certifications & Compliance
- ▸IP66 (CEI EN 62208 / CEI EN 60529, internal use)
- ▸IK10 (CEI EN 62208 / CEI EN 62262)
Models & Specifications
Available Models
| Box SKU | Dimensions (mm) H × W × D | Dimensions (in) H × W × D | Plinth H100 | Plinth H200 | Quote |
|---|---|---|---|---|---|
| LV101.35 | 711 × 610 × 406 | 28 × 24 × 16 | DRC601 | DRC621 | |
| LV102.35 | 711 × 787 × 406 | 28 × 31 × 16 | DRC606 | DRC626 | |
| LV103.35 | 711 × 991 × 406 | 28 × 39 × 16 | DRC611 | DRC631 | |
| LV104.35 | 711 × 1194 × 406 | 28 × 47 × 16 | DRC616 | DRC636 | |
| LV105.35 | 711 × 1600 × 406 | 28 × 63 × 16 | DRC646 | DRC656 | |
| LV111.35 | 711 × 610 × 508 | 28 × 24 × 20 | DRC602 | DRC622 | |
| LV112.35 | 711 × 787 × 508 | 28 × 31 × 20 | DRC607 | DRC627 | |
| LV113.35 | 711 × 991 × 508 | 28 × 39 × 20 | DRC612 | DRC632 | |
| LV114.35 | 711 × 1194 × 508 | 28 × 47 × 20 | DRC617 | DRC637 | |
| LV115.35 | 711 × 1600 × 508 | 28 × 63 × 20 | DRC641 | DRC657 |
Catalog source: Tecnomatic Enclosures Brochure (2026) p 33. Custom sizes, finishes, and configurations on request.
LV is a modular console system. The sizes above are the lower-base / vertical-top-plate units, which carry the cabinet body, hinged front door, and plinth. Complete an LV console by adding: an intermediate desk with 12° tilt (LV201–LV205 at 16 in deep, LV211–LV215 at 20 in deep; plain-top variants LV501M–LV515M) and a 70° tilt top plate (LV301–LV305 at 16 in deep, LV311–LV315 at 20 in deep). Plain tops (LV501–LV515) and vertical-top-plate frames (LV801–LV815) order separately. Add suffix .35 for RAL 7035 textured finish; stainless structures available — add suffix SS. Contact our technical department to specify the full configuration. Dimensions converted from nominal inches (1 in = 25.4 mm).
Use Cases
Typical Applications
Operator control desks
Seated operator stations in process and automation control rooms.
HMI workstations
Ergonomic HMI / SCADA desks with tilt monitor and keyboard surfaces.
Plant-floor supervision
Line supervision and monitoring consoles on the production floor.
LV is a modular console system. The sizes above are the lower-base / vertical-top-plate units, which carry the cabinet body, hinged front door, and plinth. Complete an LV console by adding: an intermediate desk with 12° tilt (LV201–LV205 at 16 in deep, LV211–LV215 at 20 in deep; plain-top variants LV501M–LV515M) and a 70° tilt top plate (LV301–LV305 at 16 in deep, LV311–LV315 at 20 in deep). Plain tops (LV501–LV515) and vertical-top-plate frames (LV801–LV815) order separately. Add suffix .35 for RAL 7035 textured finish; stainless structures available — add suffix SS. Contact our technical department to specify the full configuration. Dimensions converted from nominal inches (1 in = 25.4 mm).
Enclosures for indoor use only — contact our technical department for outdoor use.
